2.0 Overview
2.1 System Overview
The D7024 Fire Alarm Control Panel (FACP) is a fully
integrated hardwire fire alarm system. It can support
four input points and expand to 255 using the D7039
Multiplex Expansion Module and the D7034 Four-Point
Expander. The D7024 supports 16 individual users and
can expand to 100 using the D7039.
The D7024 FACP has a built-in liquid crystal display
(LCD) keypad. Up to four additional keypads can be
used to provide user interface with the system and
programming access for the installer.
The D7024 FACP also includes:
• Built-in dual-line communicator
• Menu driven keypad programming
• Freely programmable alpha display
• 99 Event History buffer
•16 User Codes
• Underwriters Laboratories, Inc. (UL) Listed,
California State Fire Marshall (CSFM), Material
and Equipment Acceptance (MEA) Approved
• Year 2000 compliant
Installing the D7039 adds:
• 247 addressable input points (255 total)
• 499 user codes
Figure 1 shows the location of the D7024 Control Board
components.

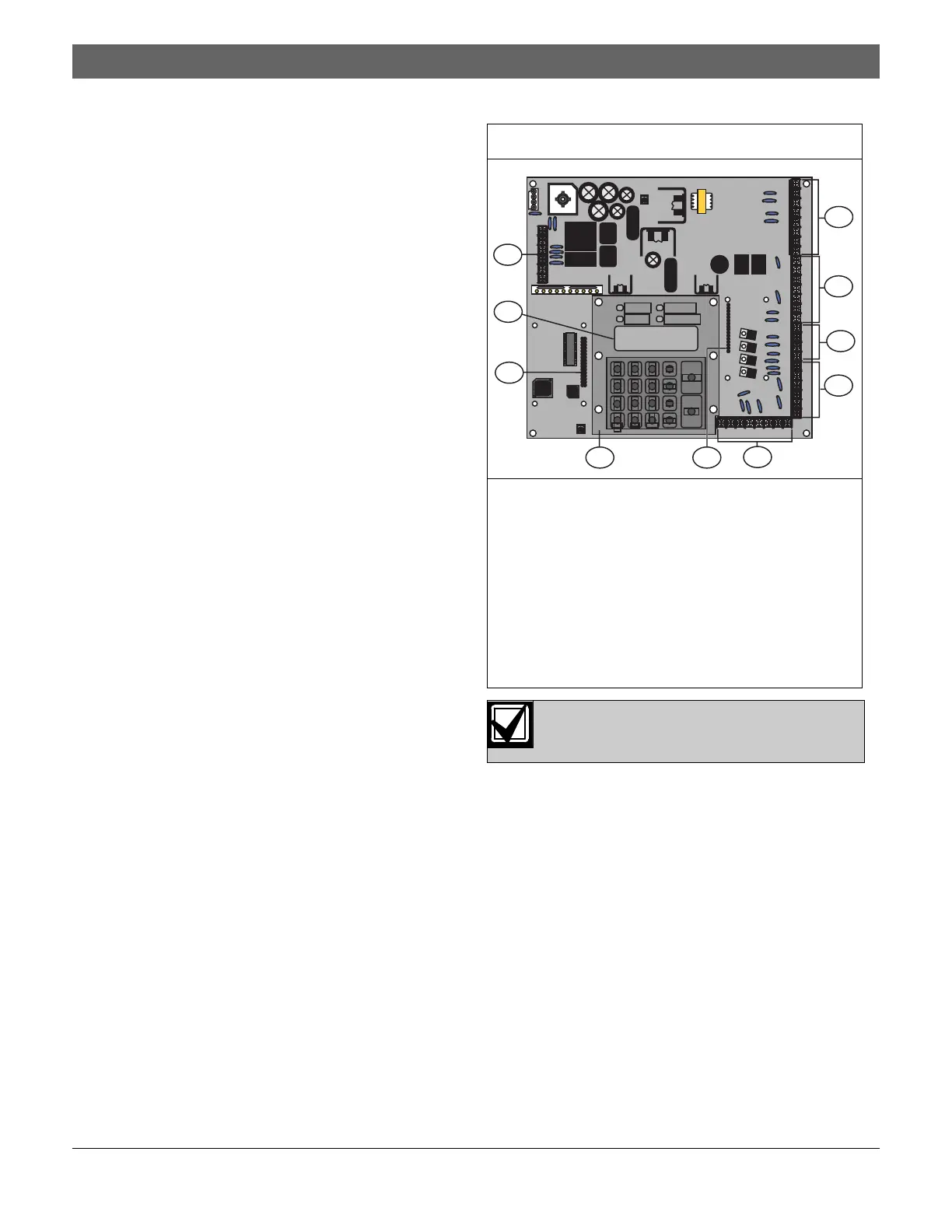

Figure 1: D7024 Control Board
1 – NAC terminal strip
2 – LCD
3 – D7039 Multiplex Expansion Module connector
pins
4 – Keypad
5 – D7034 Point Expander connector pins
6 – Option bus terminal strip
7 – Zone input terminal strip
8 – Auxiliary power terminal strip
9 – Relay terminal strip
10 –Telco terminal strip
This guide applies to panels equipped with
version 2.04 or higher software.
10
21 3
4 5 6
7 8 9
#
Cmnd
0
Prog
*
Clear
Disable
Drill
Test
History
Reset
Silence
Trouble
Silenced
Power
Alarm
9
8
7
6
54
3
2
1
