Brother HL-1200 Service Manual

1-7
Confidential

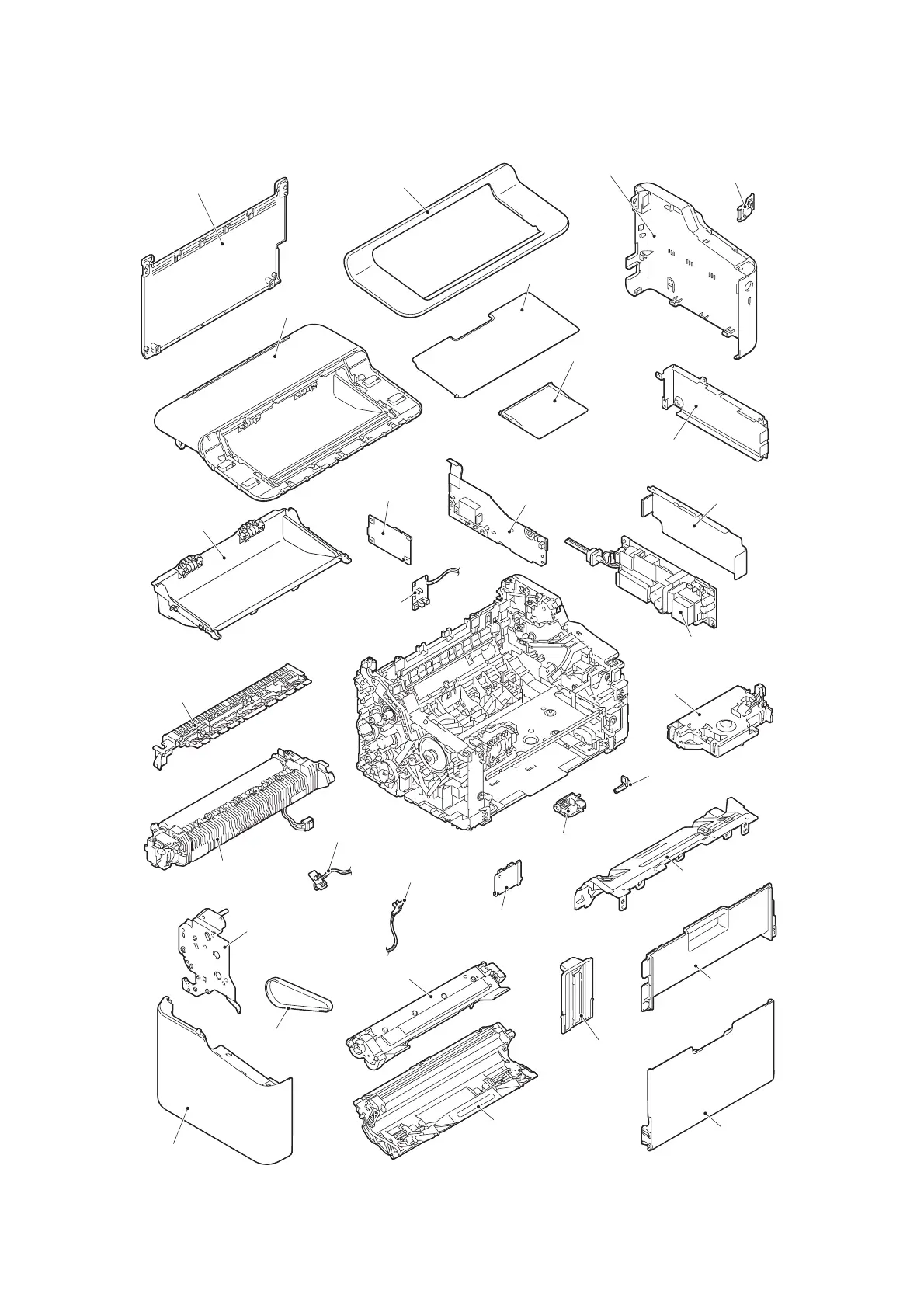

2.5 Main Components
Fig. 1-4
Back cover
Dress cover
Process cover
ASSY
Insulation roof
Motor drive belt
Side cover L
Toner cartridge
Motor encoder
PCB ASSY
Pick-up roller
holder ASSY
Laser unit
Low voltage PCB
insulation sheet
Side cover R
Switch key
Top cover
Paper stopper
Paper stopper 2
High voltage power
supply PCB ASSY
Main PCB ASSY
Low voltage shield plate cover
Pick-up roller
holder shaft
Paper feed/paper
printing position
sensor PCB ASSY
Fuser unit
Drive sub ASSY
Eject sensor
PCB ASSY
New toner sensor
PCB ASSY
Paper rear guide
Front cover
Tray cover
ASSY
Drum unit
Low voltage power
supply PCB unit
Laser unit
cover

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
