Brother HL-1200 Service Manual

2-3
Confidential
3. LUBRICATION
There are no parts that require lubrication.

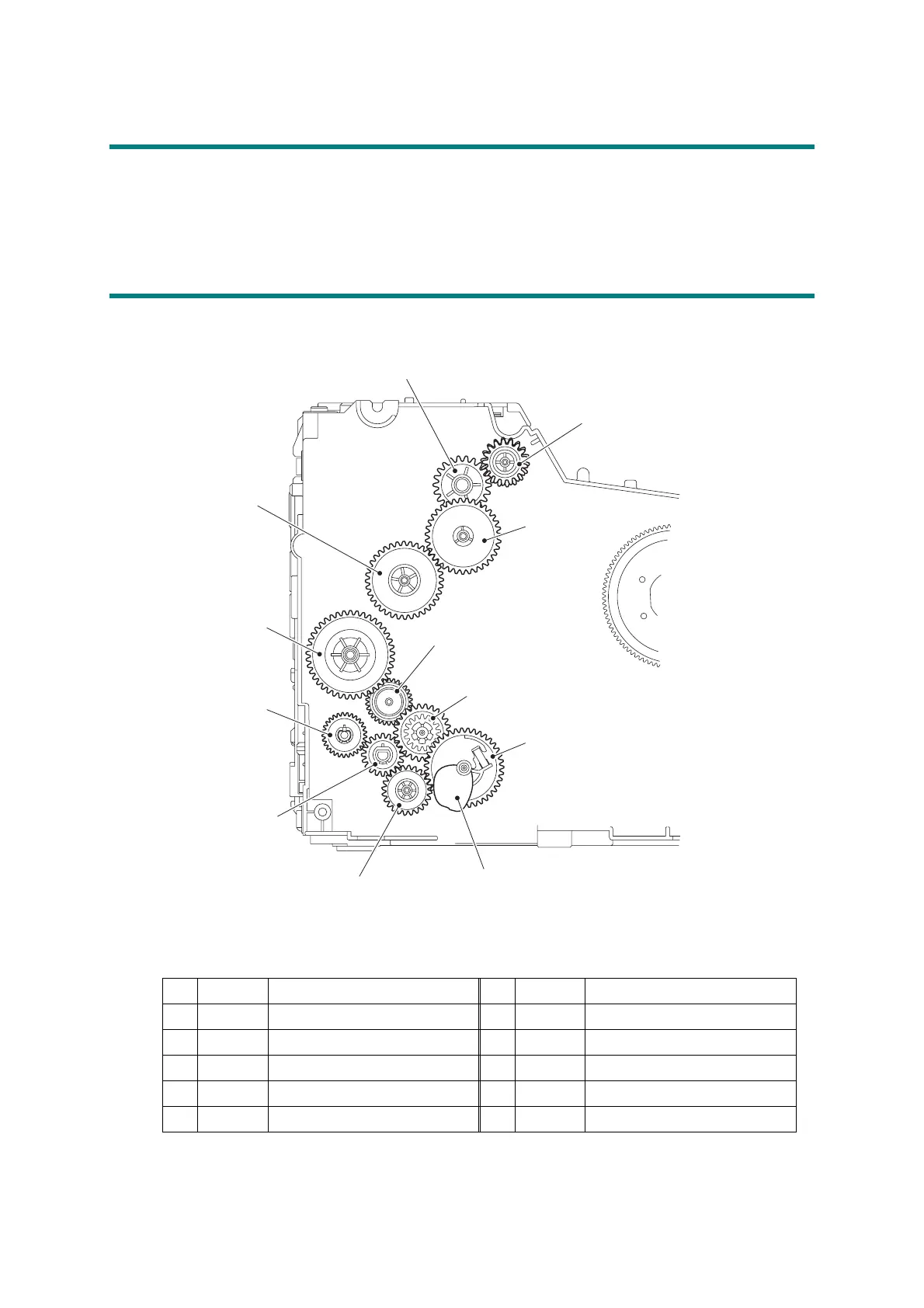

4. OVERVIEW OF GEARS
 Frame L
Fig. 2-2
<Name of gears>
1 LY8038 Fuser gear 22 7 LY8066 Feeder gear 17/32/26
2 LY8039 Ejector gear 17/18 8 LY8079 Feeder gear 29
3 LY8050 Fuser gear 20/35 pendulum 9 LY8080 T1 gear 20
4 LY8055 Fuser gear 36 10 LY8063 T1 gear sector
5 LY8067 Drum gear 18/41 11 LY8065 Plate down cam
6 LY8068 Feeder gear 30 pendulum 12 LY8062 T1 idle gear
2
1
4
5
8
9
12
11
10
7
6
3

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
