Brother HL-1200 Service Manual

2-14
Confidential

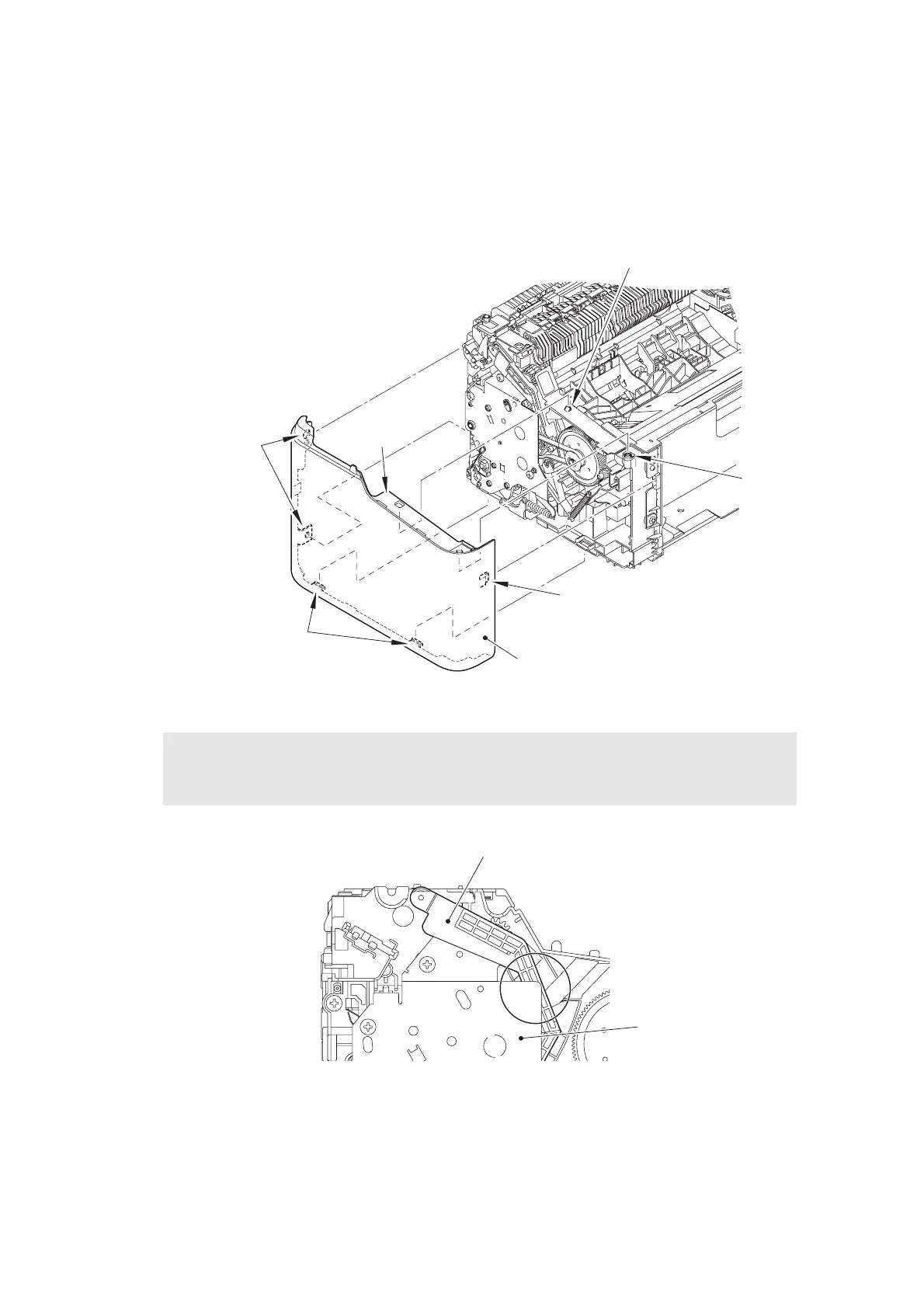

7.5 Side cover L
(1) Remove the two boss bushings at the rear side of the side cover L.
(2) Lift the rib of the side cover L to release it from the boss and hook of the machine. Pull
out the tab of the side cover L, and release the two hooks at the bottom to remove the
side cover L.
Fig. 2-9
Fig. 2-10
Assembling Note:
• When assembling the side cover L, make sure that the develop joint link is on the inner
side of the drive sub ASSY.
Hooks
Hook
Boss
Tab
Side cover L
Boss bushings
Rib
Develop joint link
Drive sub ASSY

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
