Brother HL-1200 Service Manual

2-21
Confidential
7.11 Front cover
(1) Remove the four taptite bind B M4x12 screws.
(2) Release the two hooks at the bottom of the laser unit cover. Remove the laser unit cover
and the front cover from the machine by turning them to the direction of the arrow.
(3) Release the three hooks of the front cover to remove it from the laser unit cover.

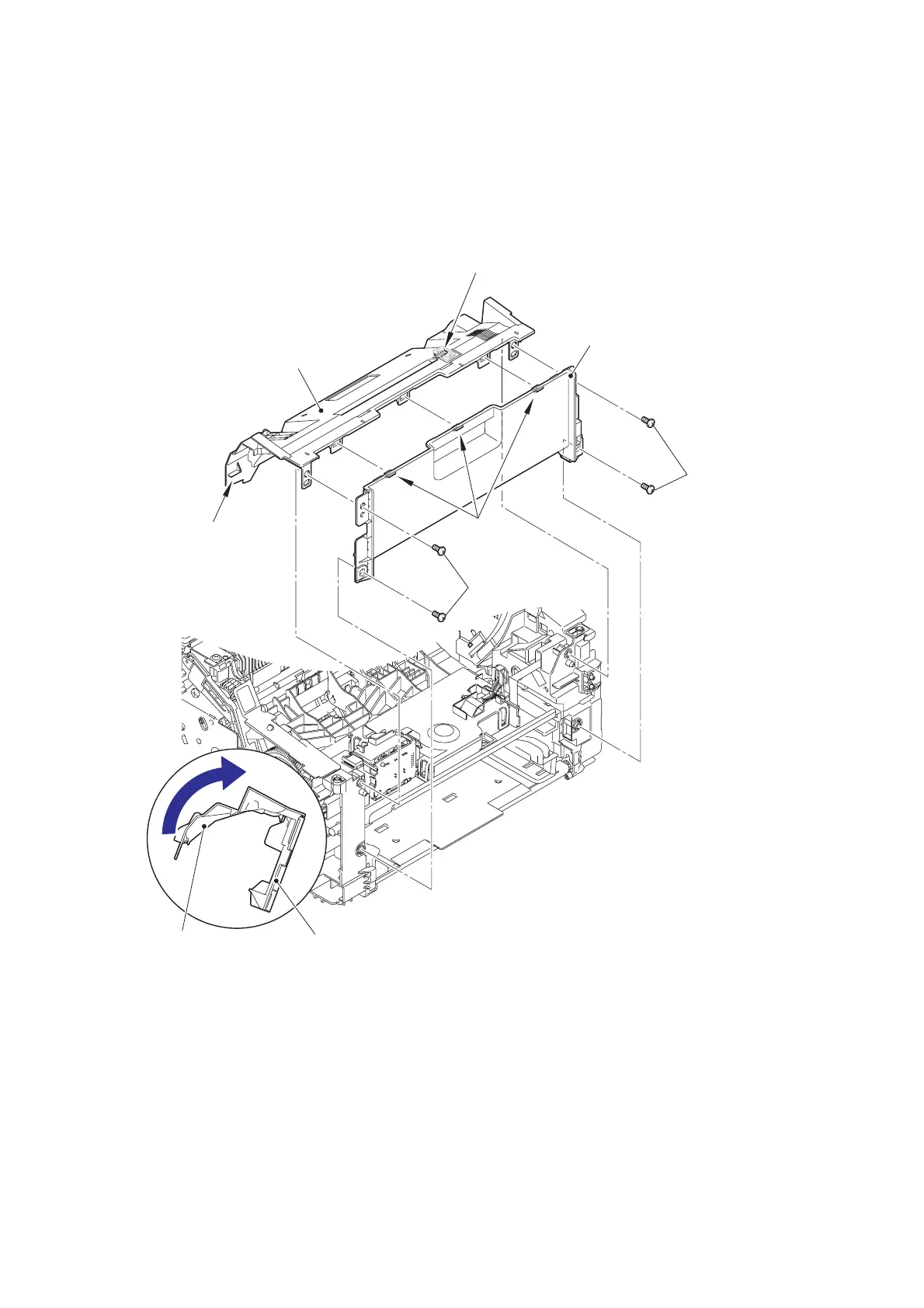

Fig. 2-19
Hook
Laser unit cover
Front cover
Taptite bind B
M4x12
Taptite bind B
M4x12
Hook
Laser unit cover
Front cover
Hooks

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
