7.4 Tray cover ASSY
(1) Open the tray cover ASSY.
(2) Bend the tray cover ASSY inward and remove the two bosses from the machine to
remove the tray cover ASSY from the machine.
(3) Remove the paper rear guide from the hook at the center part of the tray cover ASSY
and remove it from the machine.

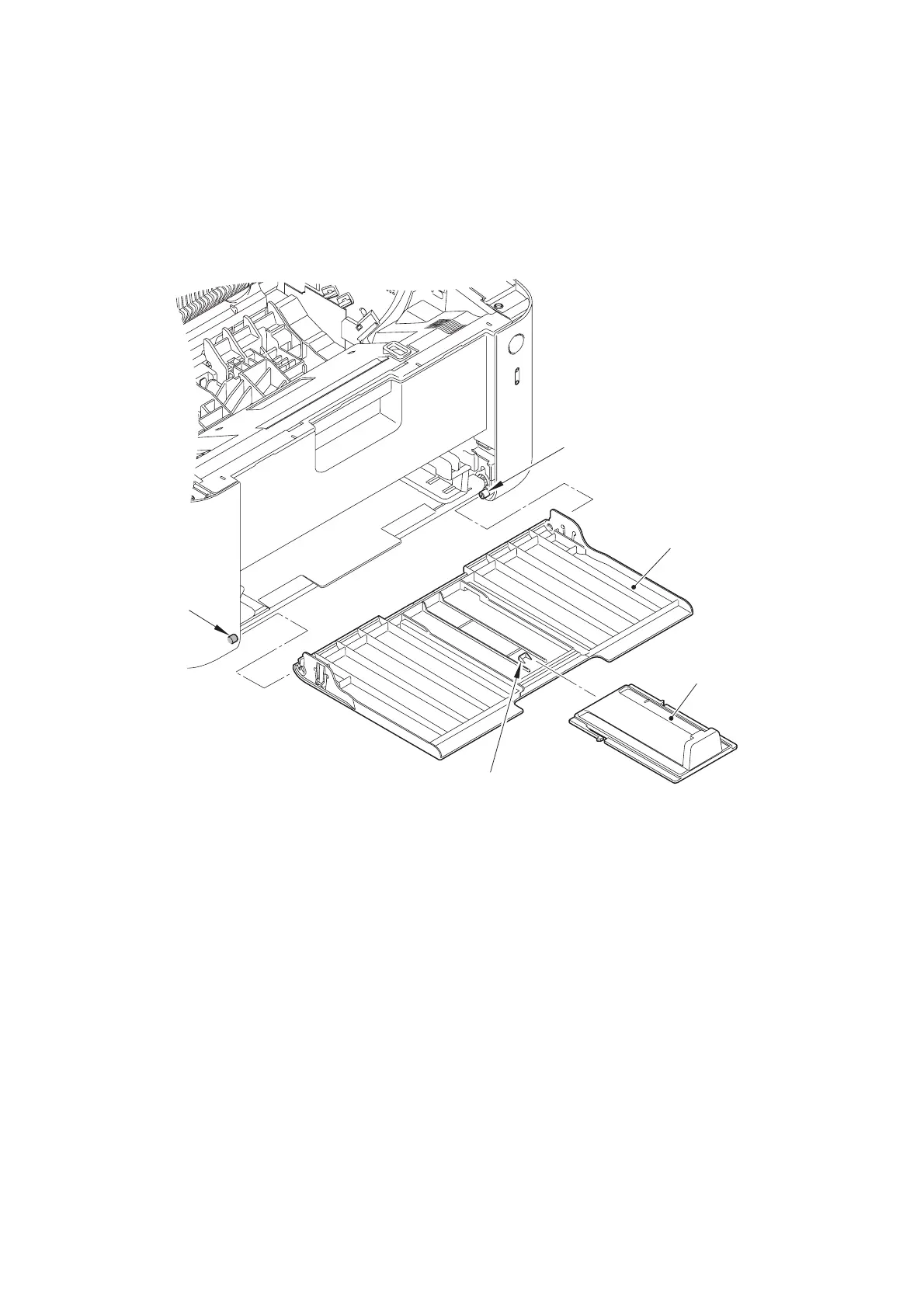

Fig. 2-8
Boss
Boss
Tray cover ASSY
Paper rear guide
Hook

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
