Brother HL-1200 Service Manual

2-26
Confidential
7.15 Paper feed/paper printing position sensor PCB ASSY
(1) Release the paper feed/paper printing position sensor PCB harness from the securing
fixtures.
(2) Remove the taptite bind B M3x10 screw to remove the paper feed/paper printing position
sensor PCB ASSY from the machine.

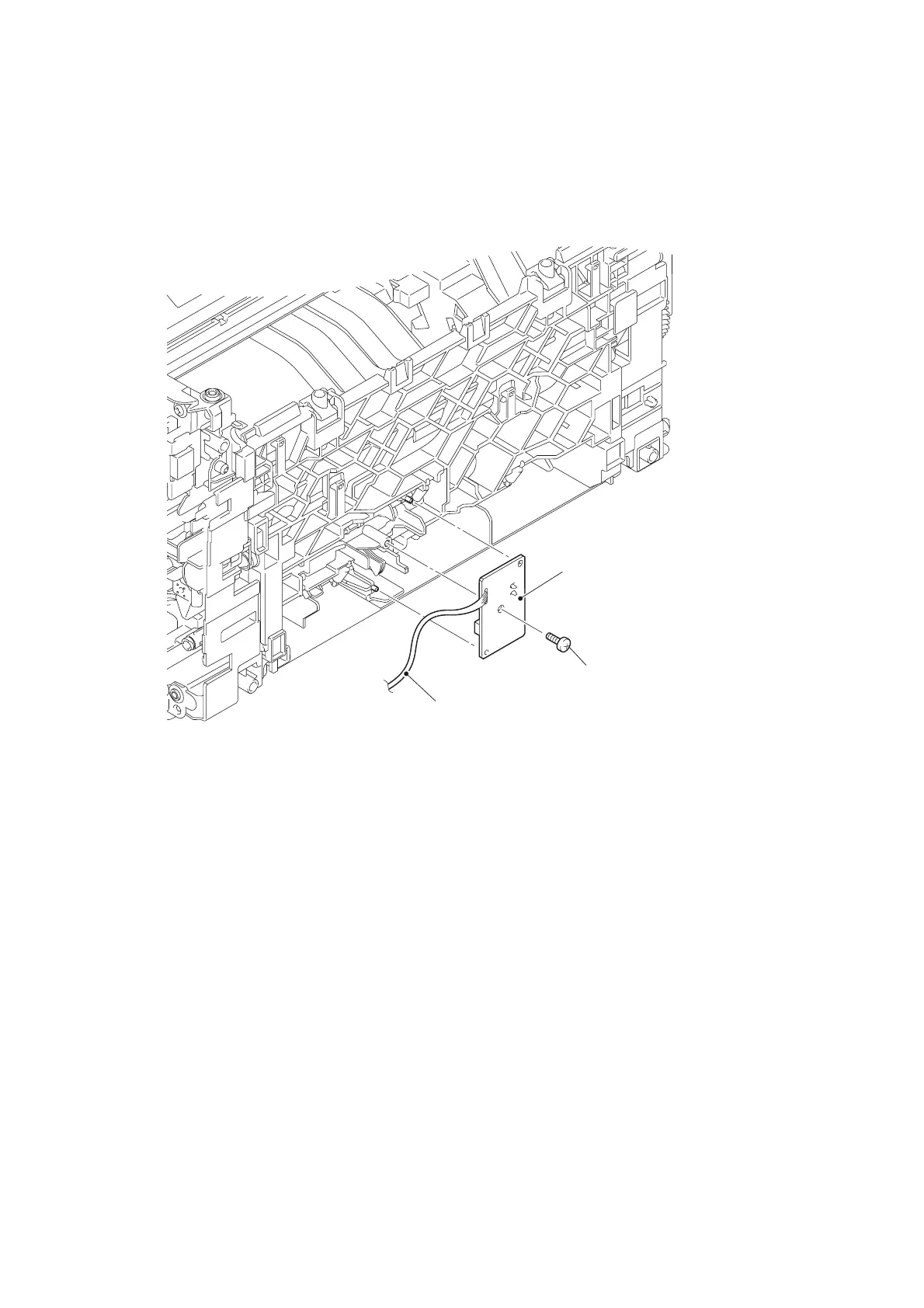

Fig. 2-26
Harness routing: Refer to “4. Paper feed/paper printing position sensor PCB ASSY”.
Taptite bind B M3x10
Paper feed/paper printing
position sensor PCB ASSY
Paper feed/paper printing
position sensor PCB harness

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
