Brother HL-1200 Service Manual

1-22
Confidential

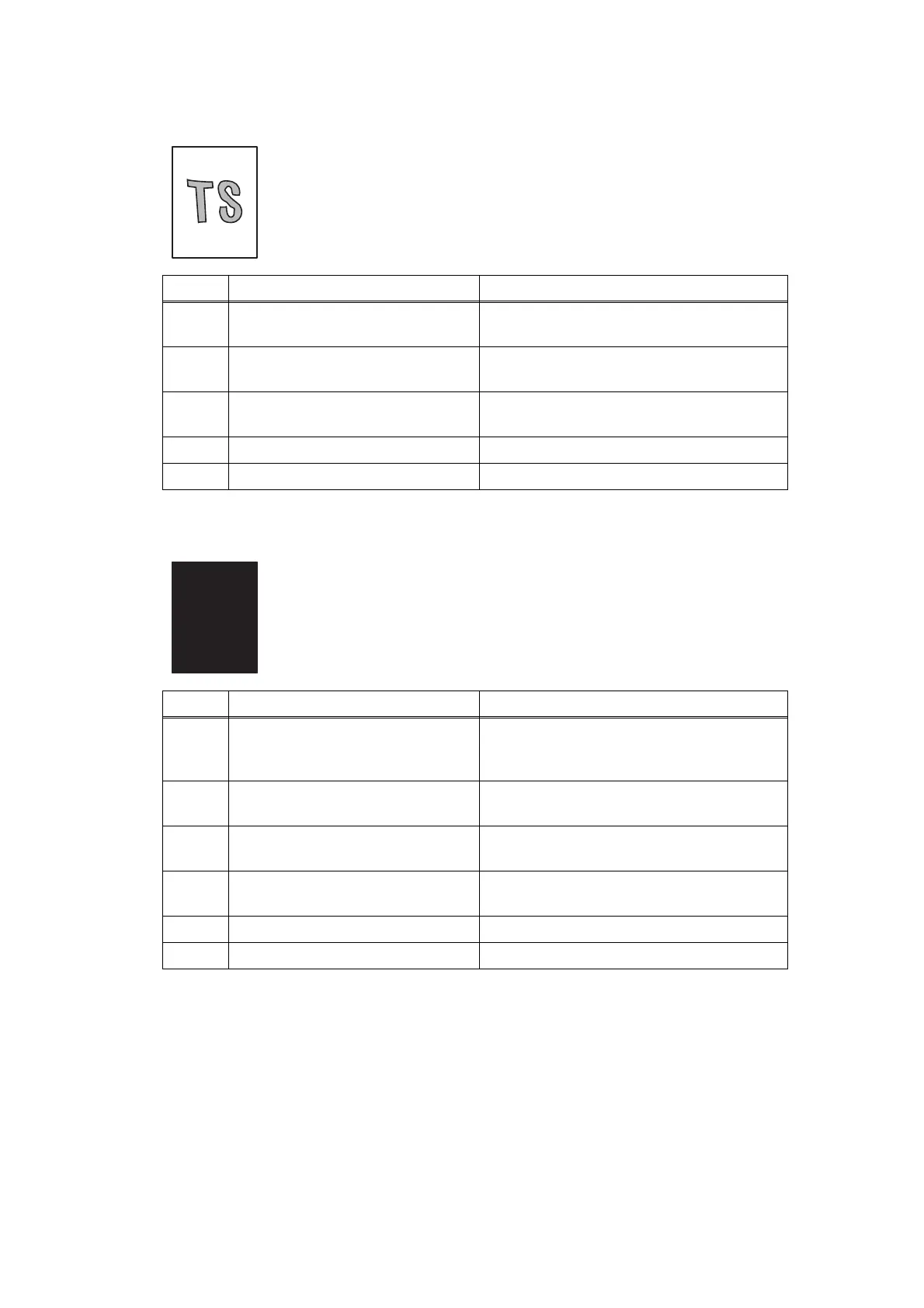

4.2.6 Image distortion
4.2.7 All black
Step Cause Remedy
1
Laser unit attachment failure Reattach the laser unit, and firmly tighten
the screws.
2
Dirt on high-voltage electrodes and
electrodes of the machine
Clean the high-voltage electrodes and
electrodes of the machine.
3
Laser unit FG plate attachment
failure (not grounded correctly)
Retighten the screws to secure the laser unit
FG plate.
4 Laser unit failure Replace the laser unit.
5 Main PCB failure Replace the main PCB ASSY.
<User Check>
- Clean the corona wire of the drum unit.
- Replace the drum unit with a new one.
Step Cause Remedy
1
Dirt on electrodes of the drum unit
and those of the machine
Clean the electrodes of the drum unit and
those of the machine. (Refer to Fig. 1-6 or
Fig. 1-7.)
2
Connection failure of the laser unit
flat cable
Reconnect the laser unit flat cable.
3
Laser unit FG plate attachment
failure (not grounded correctly)
Check the contact of the laser unit FG plate,
and retighten the screws.
4
High voltage power supply PCB
failure
Replace the high voltage power supply PCB
ASSY.
5 Laser unit failure Replace the laser unit.
6 Main PCB failure Replace the main PCB ASSY.

Brother HL-1200 Specifications

General

Print Technology	Laser
Interface	USB 2.0
Memory	1 MB
Weight	4.6 kg
Print Speed	20 ppm
Resolution	Up to 2400 x 600 dpi
Paper Input Capacity	150 sheets
Dimensions	340 mm x 238 mm x 189 mm
Supported Operating Systems	Windows, Mac OS
