Cisco ASA Series CLI Configuration Guide
Chapter 1 Configuring Access Rules
Information About Access Rules

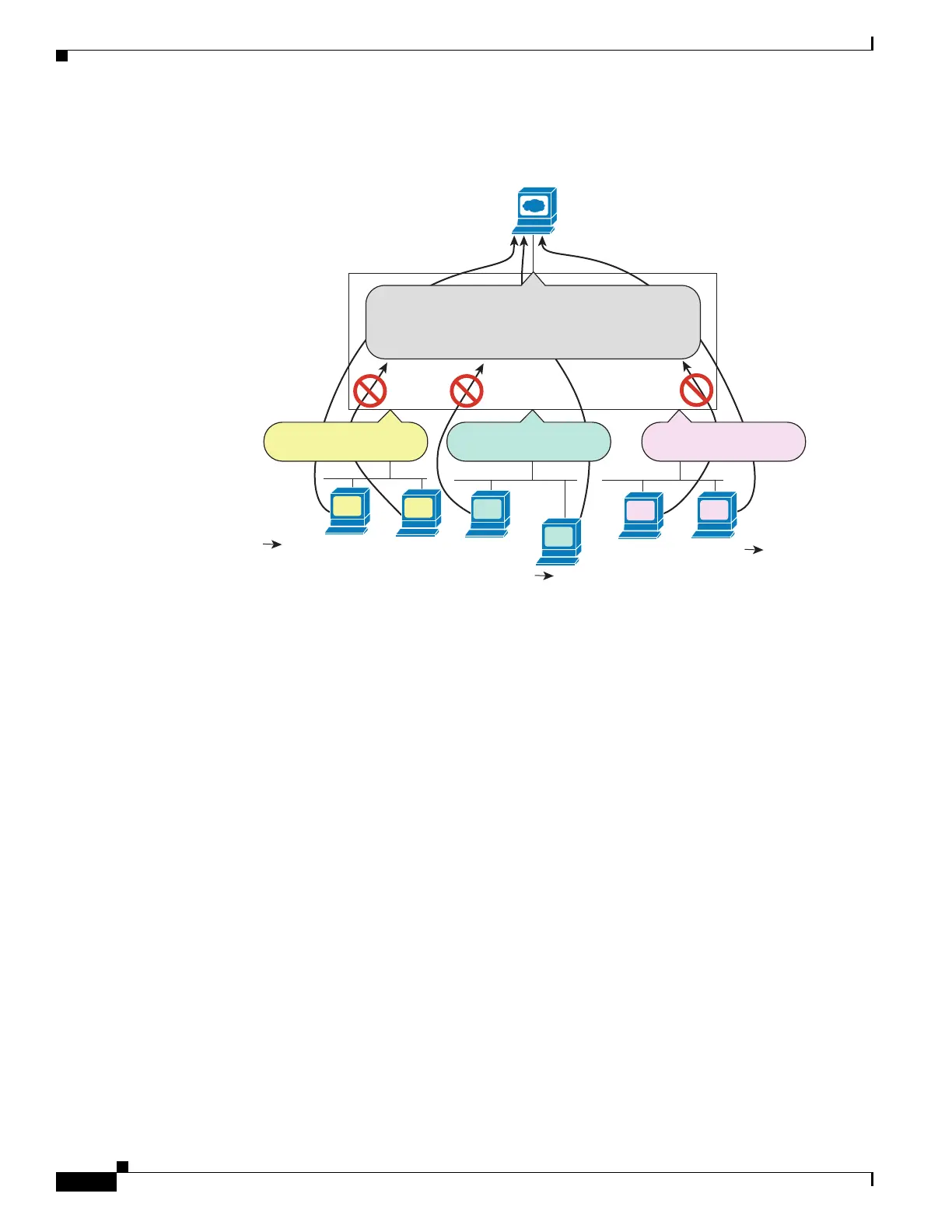

Figure 1-1 Outbound Access List
See the following commands for this example:
hostname(config)# access-list OUTSIDE extended permit tcp host 10.1.1.14
host 209.165.200.225 eq www
hostname(config)# access-list OUTSIDE extended permit tcp host 10.1.2.67
host 209.165.200.225 eq www
hostname(config)# access-list OUTSIDE extended permit tcp host 10.1.3.34
host 209.165.200.225 eq www
hostname(config)# access-group OUTSIDE out interface outside
Information About Extended Access Rules
This section describes information about extended access rules and includes the following topics:
• Access Rules for Returning Traffic, page 1-4
• Allowing Broadcast and Multicast Traffic through the Transparent Firewall Using Access Rules,
page 1-5
• Management Access Rules, page 1-5
Access Rules for Returning Traffic
For TCP and UDP connections for both routed and transparent mode, you do not need an access rule to
allow returning traffic because the ASA allows all returning traffic for established, bidirectional
connections.
Web Server:
209.165.200.225
Inside
HR
Eng
Outside
Static NAT
209.165.201.4
1
0.1.1.14
Static NAT
209.165.201.610.1.2.67
Static NAT
209.165.201.810.1.3.34
ACL Outbound
Permit HTTP from 10.1.1.14, 10.1.2.67,
and 10.1.3.34 to 209.165.200.225
Deny all others
ACL Inbound
Permit from any to any
ACL Inbound
Permit from any to any
ACL Inbound
Permit from any to any
ASA
333823

Cisco ASA 5540 Specifications

General

Firewall Throughput	650 Mbps
Maximum Firewall Connections	400, 000
VPN Throughput	225 Mbps
Maximum VPN Peers	5, 000
High Availability	Active/Active, Active/Standby
IPSec VPN Throughput	225 Mbps
Memory	1 GB
IPS Throughput	225 Mbps
Security Contexts	50
Flash Memory	64 MB
Form Factor	1U
Power Supply	Dual
Interfaces	4 x 10/100/1000 Ethernet
