149
ENGINES
B1EP1FUD
B1EP1FVC
AUXILIARY EQUIPMENT DRIVE BELT
Engines: RFJ
Tools.
[1] «Junior» T extension : (-).1608.E
Removing.

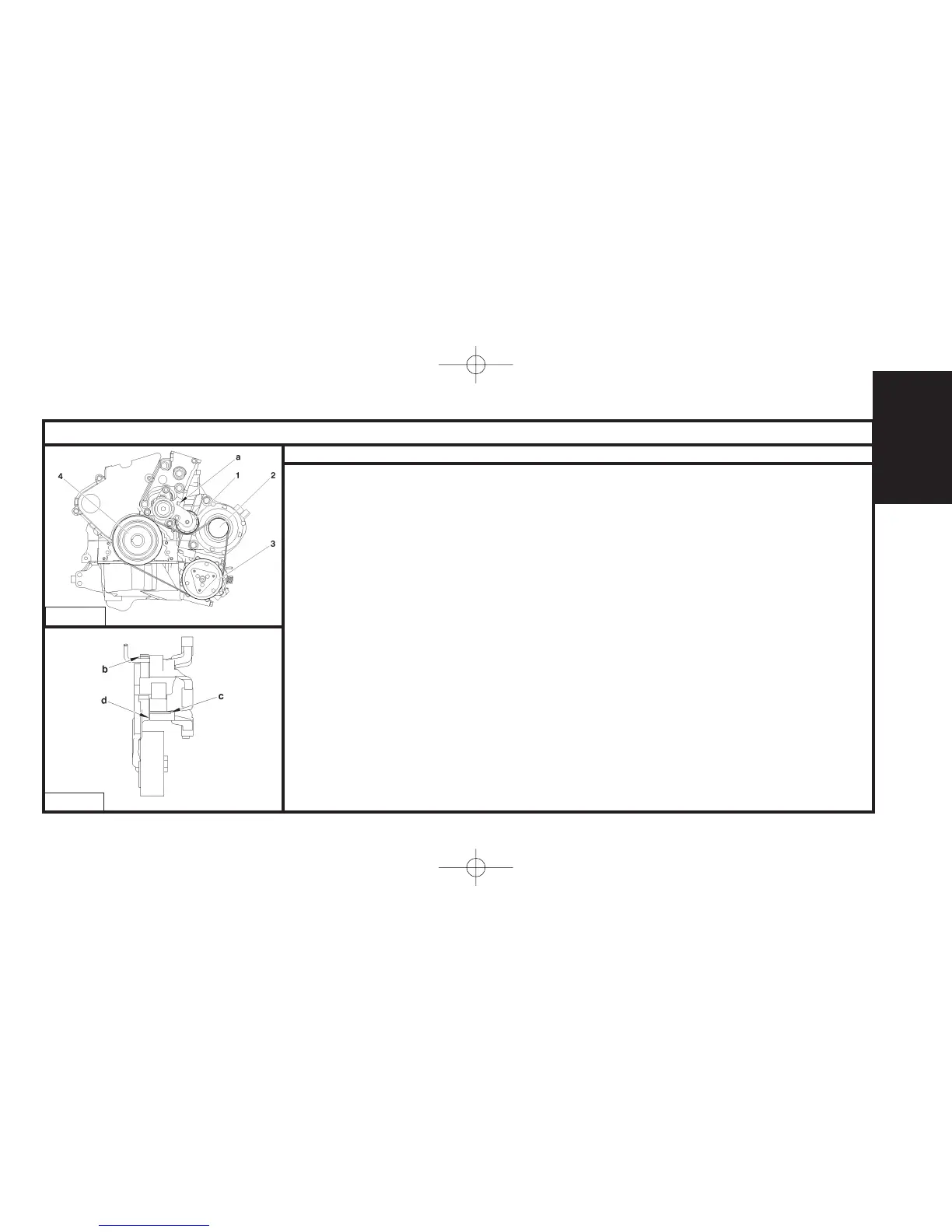

Engage tool [1] in the notch «a».
Exert on the roller (1) an effort upwards to hold it at maximum.
Remove the auxiliaries drive belt.
Carefully release the tensioner roller (1) to reach its minimum.
Remove tool [1].
IMPERATIVE: Check that the roller (1) turns freely (without play and without tight spots).
Refitting.
If removing the auxiliaries drive belt tensioner roller, tighten the screws 2 ± 0,2 m.daN.
Engage tool [1] in the notch at «a».
Exert on the roller (1) an effort upwards to hold it at maximum.
Position the (new) auxiliaries drive belt, in the following sequence:
- Auxiliaries drive pulley (4), aircon compressor pulley (3), tensioner roller (1) and alternator pulley (2).
IMPERATIVE: Make sure that the auxiliaries drive belt is correctly positioned in the grooves of
the various pulleys.
Release the tensioner roller (1).
Remove tool [1].
Checking the tension of the auxiliaries drive belt.
Check the tension of the auxiliaries drive belt:
- Mark «b» at the level of mark «c», new belt.
- Mark «b» at the level of mark «d», belt to be changed.
