394

AIR

CONDITIONING

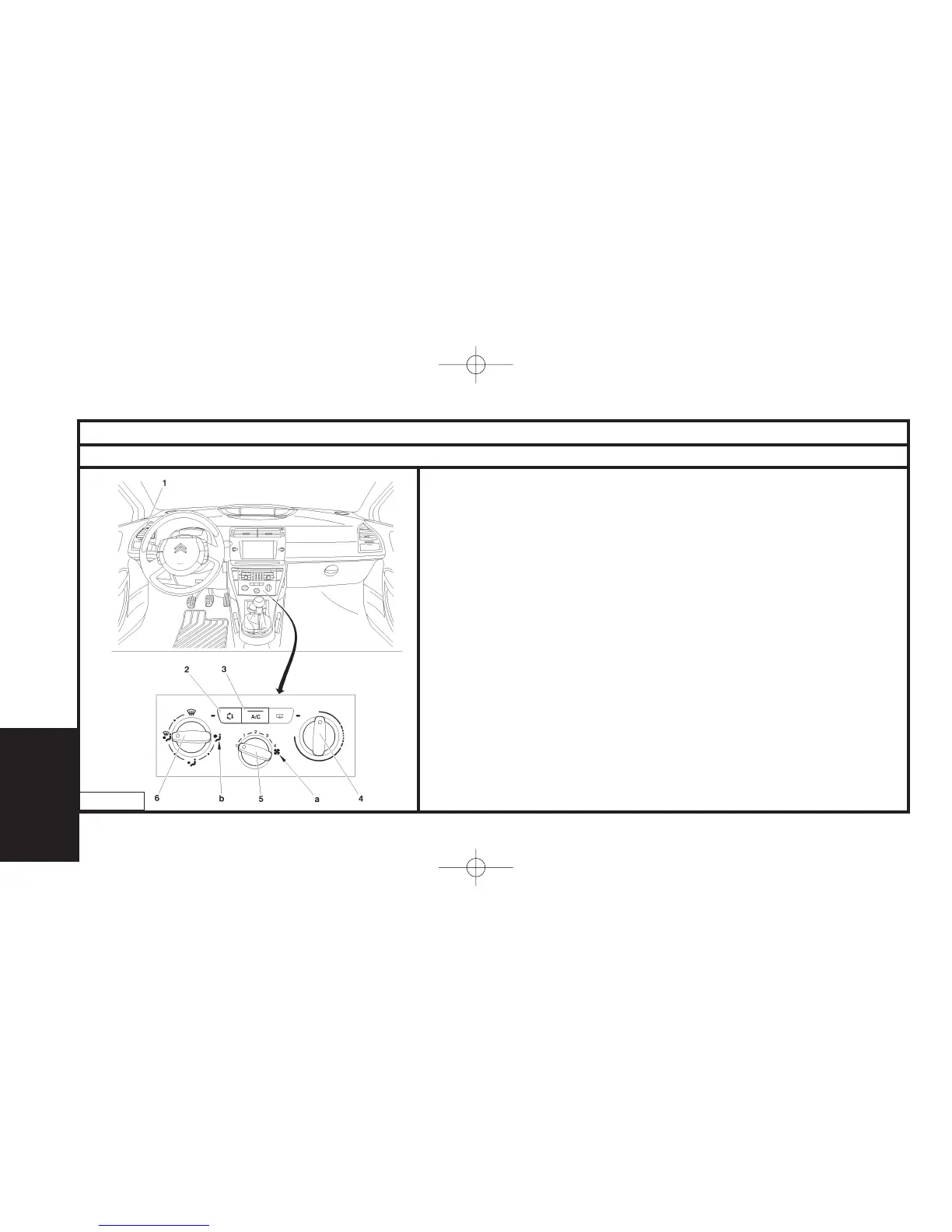

Manual air conditioning

Checking.

Position the tool [1] (depending on manufacturer’s instructions).

Preliminary operations.

Close all the front air vents.

Start the engine. Open the front LH air vent (1).

Position the air distribution control (6) to frontal flow at «b».

Activate the air recirculation control by pressing on the switch (2) (lamp comes on).

Activate the air conditioning control by pressing on the switch (3) (lamp comes on).

Positions of the air conditioning controls:

- Temperature control (4) on maximum cold.

- Blower control (5) in maximum speed position at «a».

Let the air conditioning operate for 5 minutes.

CHECKING THE EFFICIENCY OF THE AIR CONDITIONING SYSTEM

C5FP0NXP

UK-C4-page385-409-2004 15/11/04 9:13 Page 394
