304

CLUTCH

GEARBOX

DRIVESHAFTS

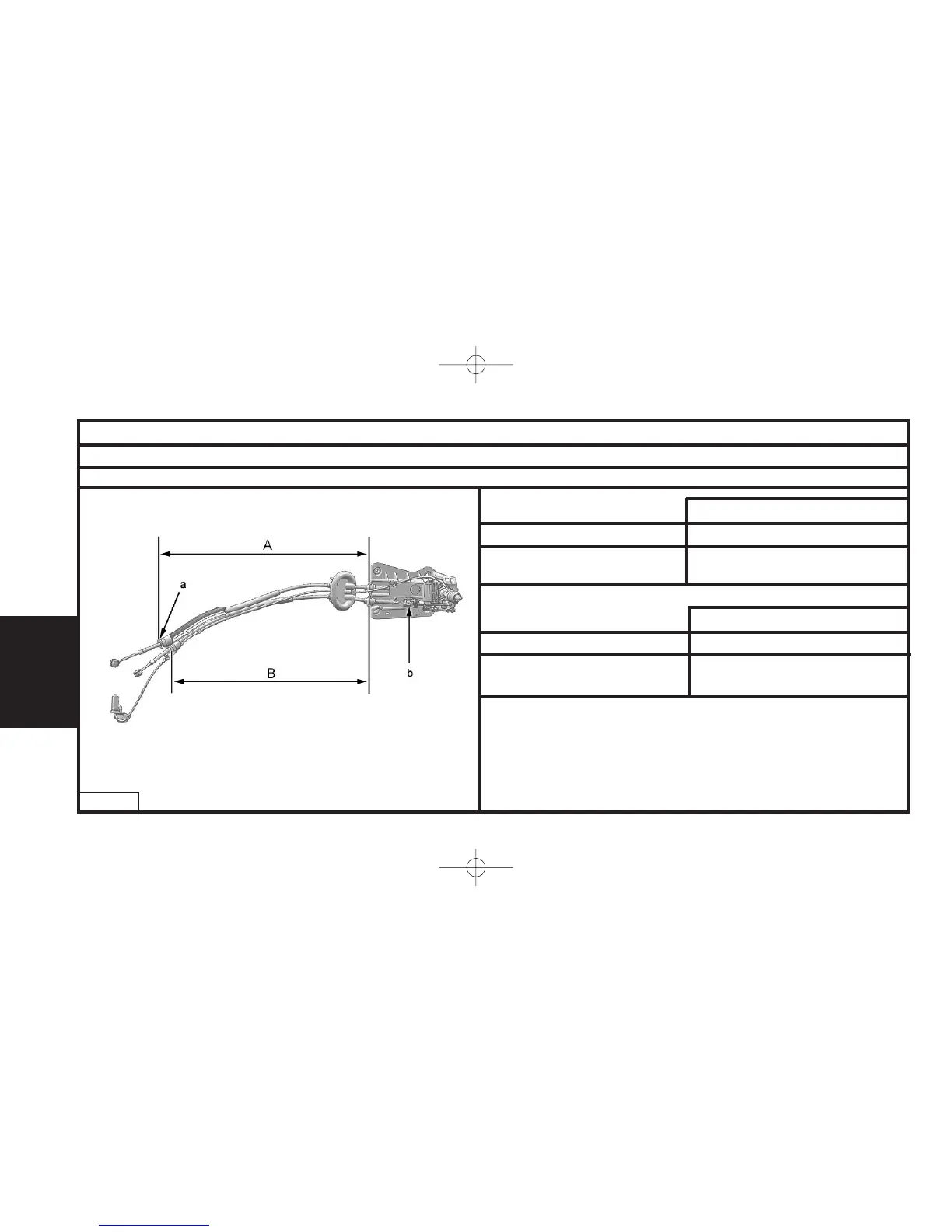

ML6 GEARBOX CONTROLS

Engine: RHR

B2CP3ZQD

Adjustment NO

Length A (mm)

Gear engagement control cable 723 ± 2

Adjustment YES at «b»

Length B (mm)

Gear selection control cable 674 ± 2

NOTE: In order to differentiate the two gear control cables when they have

been removed, the gear engagement cable has a black colour

identification on the sleeve stop at «a».

Adjustment of the gear selection control cable

UK-C4-page271-321-2004 15/11/04 9:15 Page 304
