335
AXLES
SUSPENSION
STEERING
AXLE GEOMETRY
Conditions for checking and adjusting

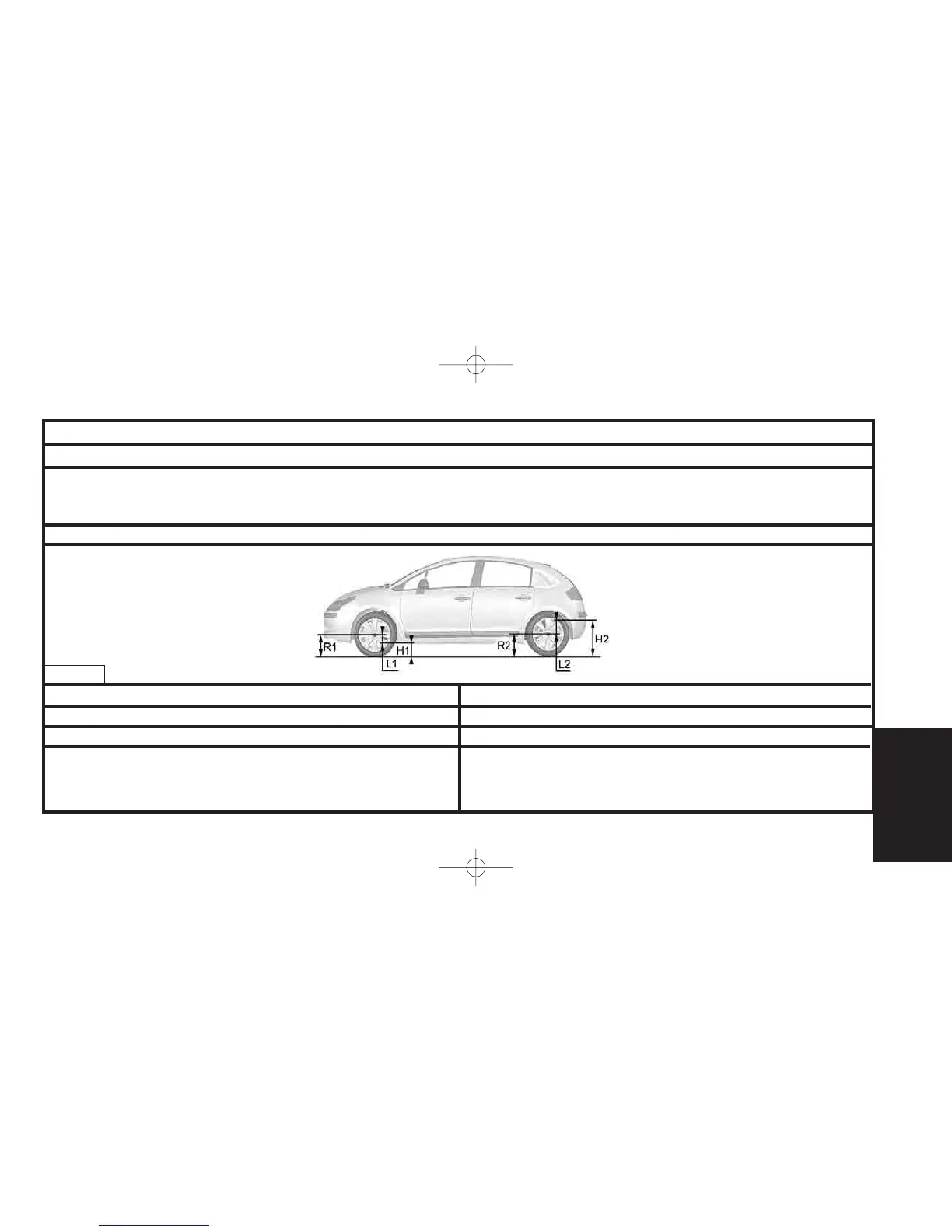

Vehicle heights at reference height
Rear heightFront height
L2L1
Tools : [1] Gauge for measuring the the wheel radius, 4 bolts : 4300-T.
Tyres inflated to correct pressures. Vehicle at reference height.
Steering rack locked at mid point (see corresponding operation).
H1 = R1 - L1
H1 = Measurement between the measuring zone underneath the front sub-
frame and the ground.
R1 = Front wheel radius under load.
L1 = Distance between the wheel axis and the measuring zone underneath
the front subframe.
H2 = R2 + L2
H2 = Measurement between the measuring zone underneath the rear sill and
the ground.
R2 = Rear wheel radius under load.
L2 = Distance between the wheel axis and the measuring zone underneath
the rear sill.
E1AP0F3D
