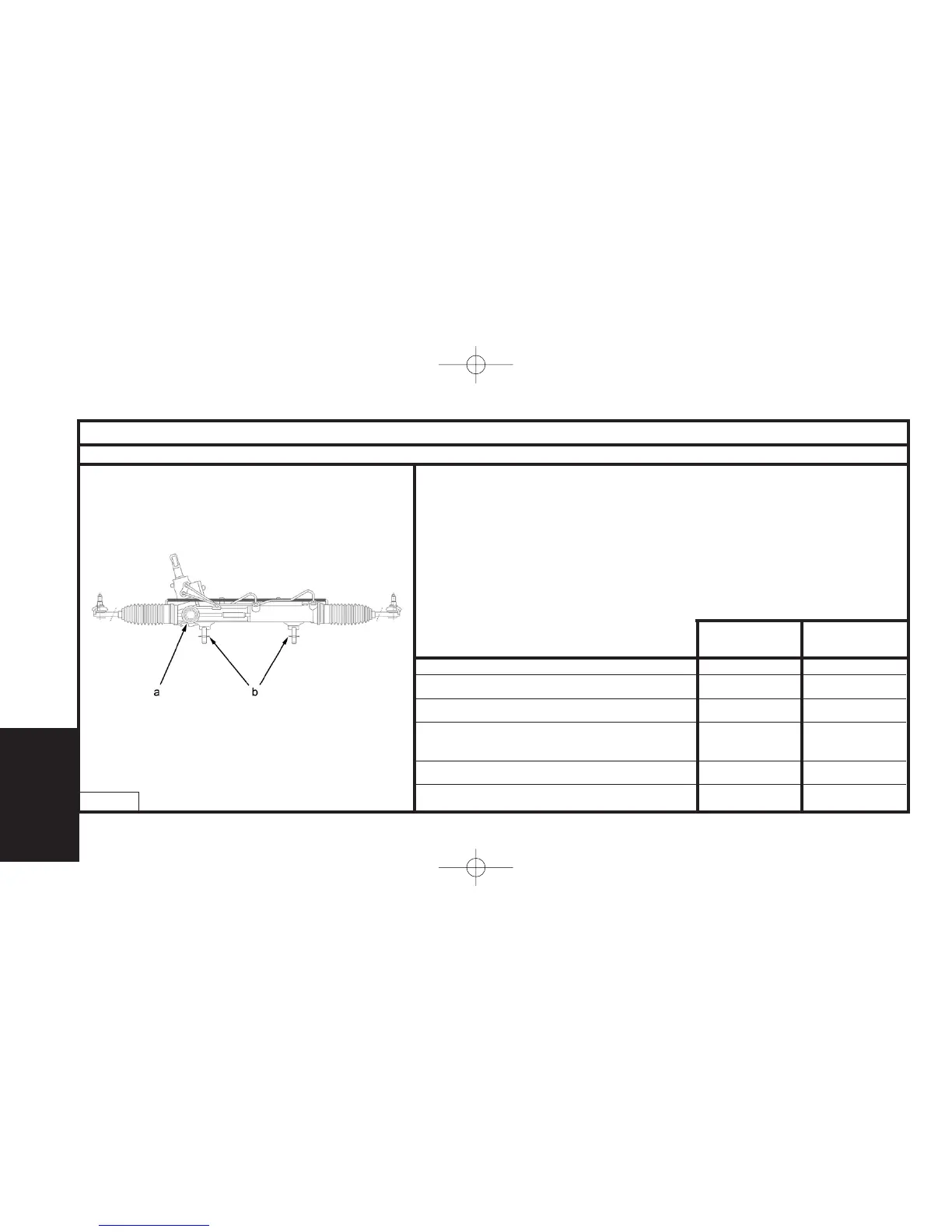

GENERAL SPECIFICATIONS: POWER-ASSISTED STEERING
- Steering mechanism with integral ram, fixed on the subframe by means of two studs.
- The distributor valve has groove technology.
- The hydraulic supply and return pipes are fixed on the distributor valve by a flange.
- The adjustment of the steering push-rod is via a screw plug «a», in plastic material.
IMPERATIVE: The toothed washers «b» must be placed between the steering
mechanism and the front subframe.
All engine types
(except RHR)
RHR
Steering rack travel (mm) 74x2 69x2
Number of teeth on the distributor valve pinion 9
Steering ratio 1/40
Number of rotations of steering wheel
(from lock to lock) 2,88
Inner angle of lock 38° 27’
Outer angle of lock 32° 23’
B3EP16QD
Steering mechanism
