CITROEN C4 2004 User Manual

158
ENGINES

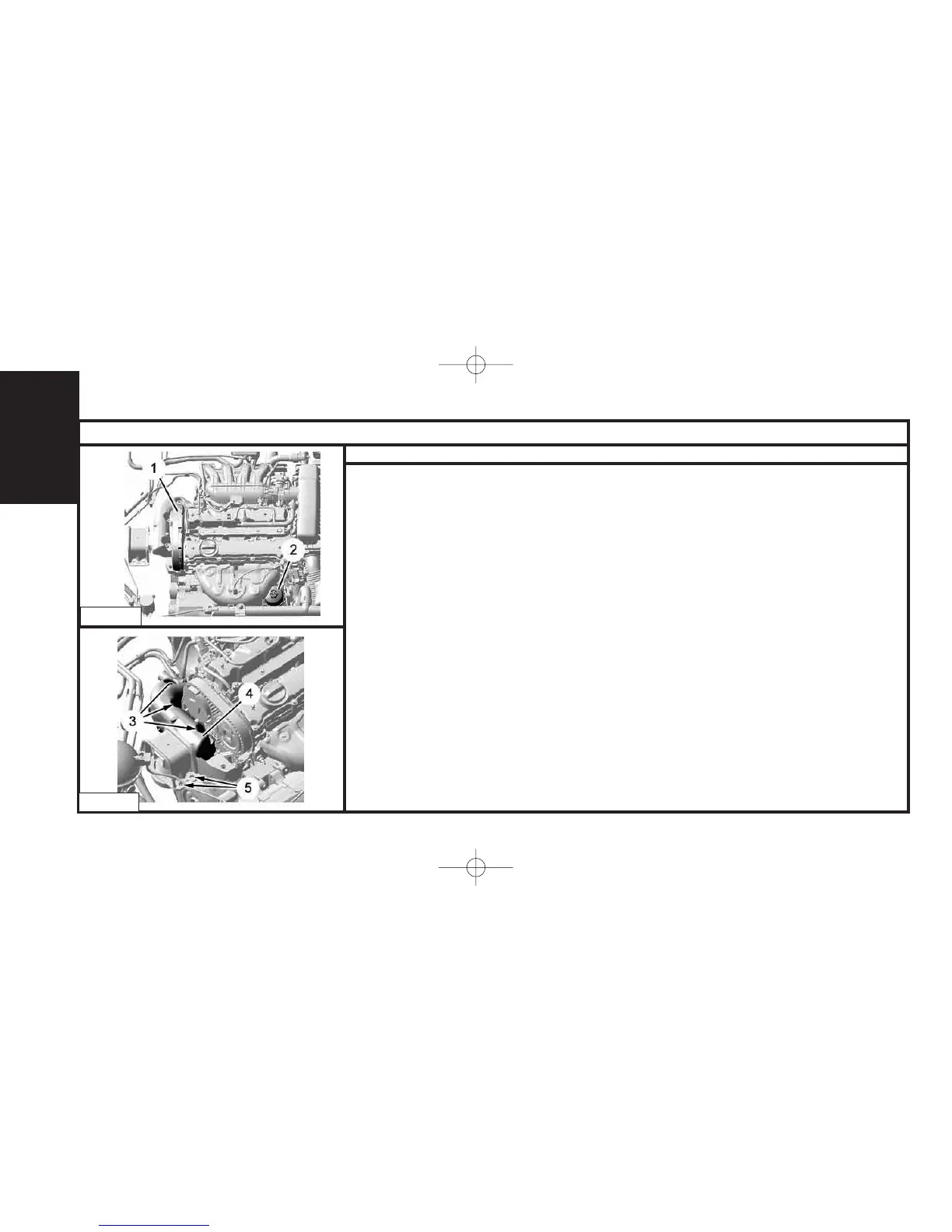

CHECKING THE VALVE TIMING
Engine: KFU
Tools.
[1] Flywheel setting peg :4507-TA Toolkit 4507-T
[2] Camshaft setting peg :4533-TA.C1
[3] Camshaft setting peg : (-).0194.A
IMPERATIVE: Respect the safety and cleanliness requirements.
Checking.
Deconnect the battery.
Remove:
- The engine cover.
- The upper timing cover (1).
- The oil filter (2).
Remove the sparking plugs, to facilitate rotation of the engine.
Turn the engine by means of the crankshaft screw.
IMPERATIVE: Never turn the engine backwards.
Suspend the engine.
Remove:
- The screws (3), the upper RH engine support (4) and the screws (5).
B1BP37JC
B1BP37KC
UK-C4-page131-237-2004 15/11/04 9:19 Page 158
