344

AXLES

SUSPENSION

STEERING

GENERAL SPECIFICATIONS: SUSPENSION

Front axle

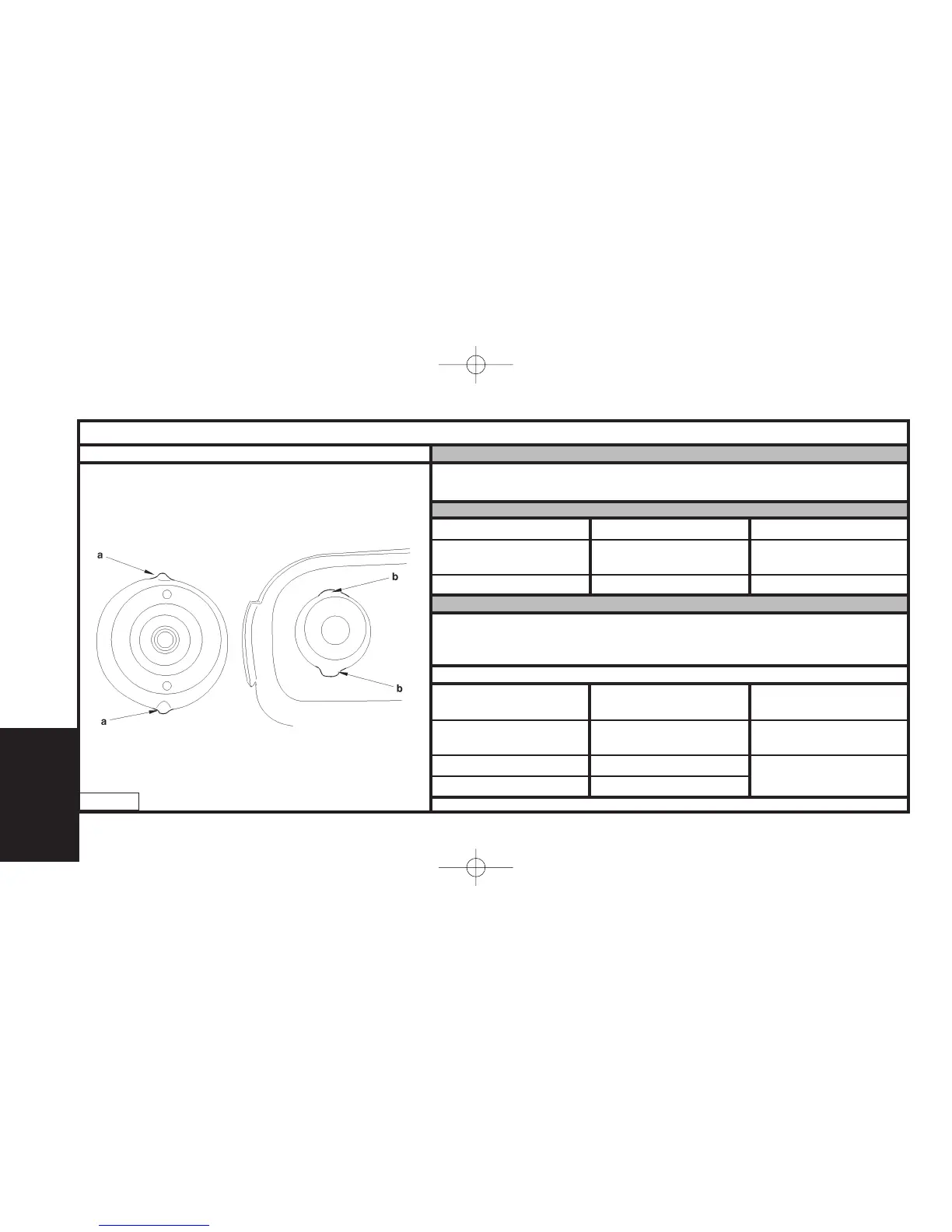

Position the bosses «a» of the damper support in the slots «b» in the wheelarch.

Anti-roll bars

Engines Diameter (mm) Colour

KFU NFU RFJ RFN

9HX 9HY 9HZ

21,5 Pink

RFK RHR 22 White

Rear axle

The anti-roll bar is inside the rear axle crossmember.

The anti-roll bar is a component that cannot be removed (extremities welded on the

rear axle crossmember).

Anti-roll bars

Engines Diameter Crossmember plate

(mm) thickness (mm)

KFU NFU RFJ RFN

9HX 9HY 9HZ

21x27 5

RFK 24x30

RHR 21x27

B3BP19QD

Suspension leg angle

UK-C4-page322-360-2004 15/11/04 9:07 Page 344
