AXLES
SUSPENSION
STEERING

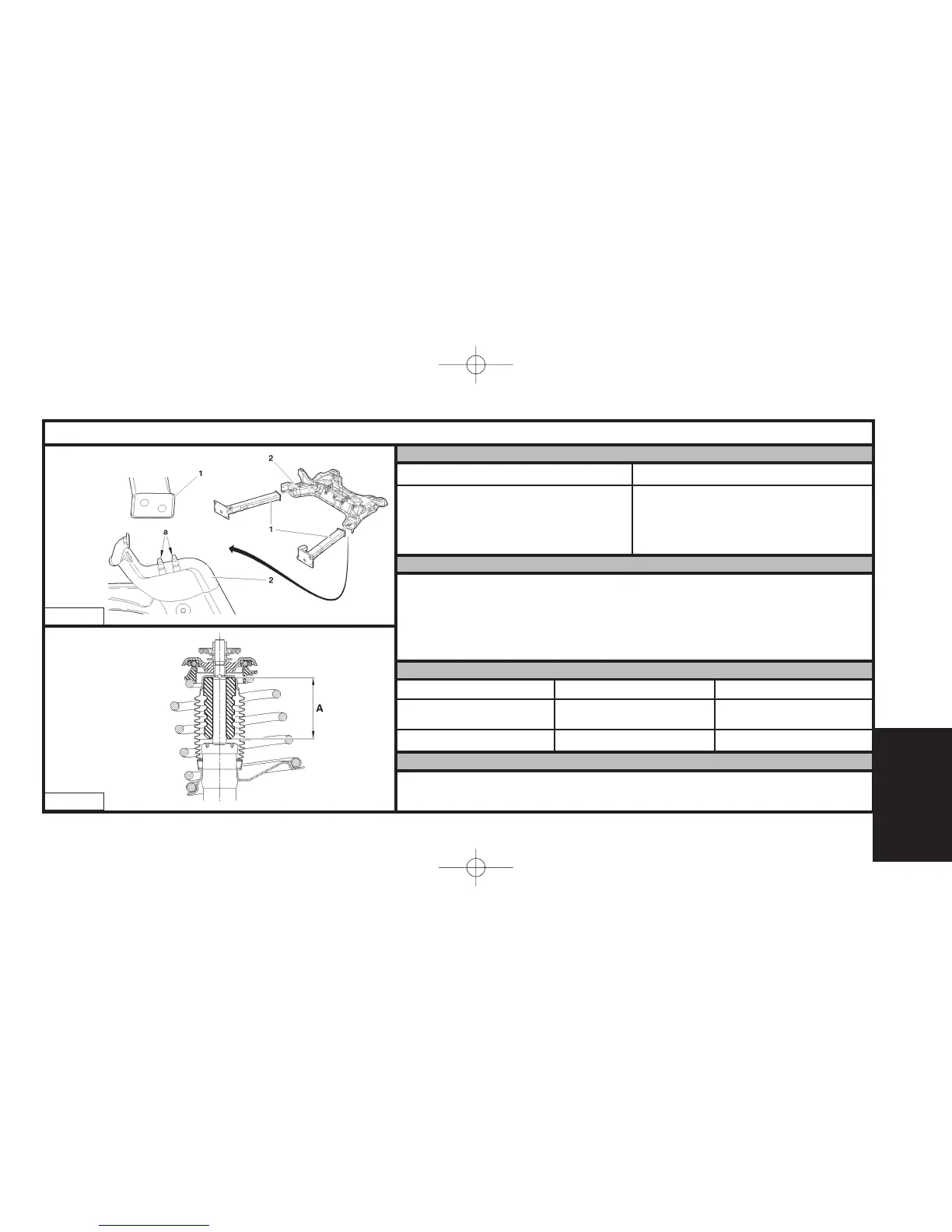

GENERAL SPECIFICATIONS: FRONT AXLE
Subframe
(1) Subframe extensions (2) Subframe
Subframe extensions lodged on two pins Subframe machine-welded and painted.
«a», subframe end.
Subframe extensions screwed on the Subframe positioned by indexing
lower crossmember and body at the front on the body.
Pivot
Pivot of «pinched» type.
Pivot bearing: Diameter 82 mm.
Bearing with double row of balls, with integral magnetic wheel (48 pairs of poles).
Pivot lower ball-joint is removable.
Anti-roll bar
Engines Diameter (mm) Colour
KFU-NFU-RFJ-RFN
9HX-9HY-9HZ-RHR
21.5 Pink
RFK-RHR 22 White
Suspension leg
Front axle with independent wheels, of pseudo «Mac Pherson» type.
Suspension travel: height A = 96 mm.
B3BP190C
B3CP08UD
