AXLES
SUSPENSION
STEERING
SPECIAL FEATURES: STEERING
Preliminary operation.
Raise and support the vehicle on a two-column lift.
Remove (on RH side):
- The clip (1).
- The clip (2).
Detach the steering rack protection gaiter.

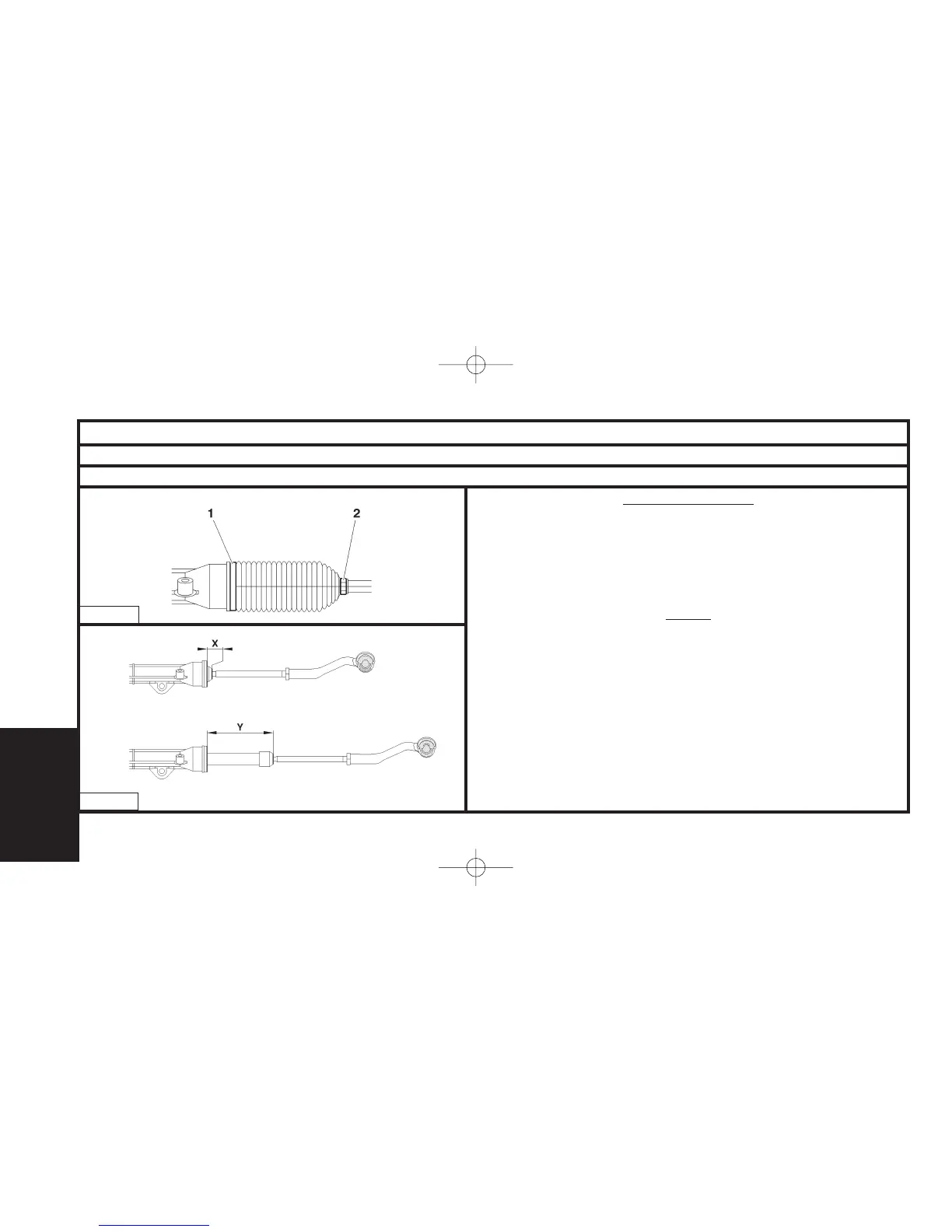

Setting.
Move the steering to full left hand lock.
Measure the dimension X.
Move the steering to full right hand lock.
Measure the dimension Y.
Calculate the dimension :L = (Y – X): 2.
Position the steering rack to the dimension “L” (mid-point of the steering rack).
Refit:
- The protection gaiter.
- The clip (1) (New) and the clip (2).
B3EP13VD
Engines: KFU - NFU - RFN - RFJ - RFK - 9HX - 9HY - 9HZ - RHR
B3EP13UC
Setting the steering rack mid-point
