347

AXLES

SUSPENSION

STEERING

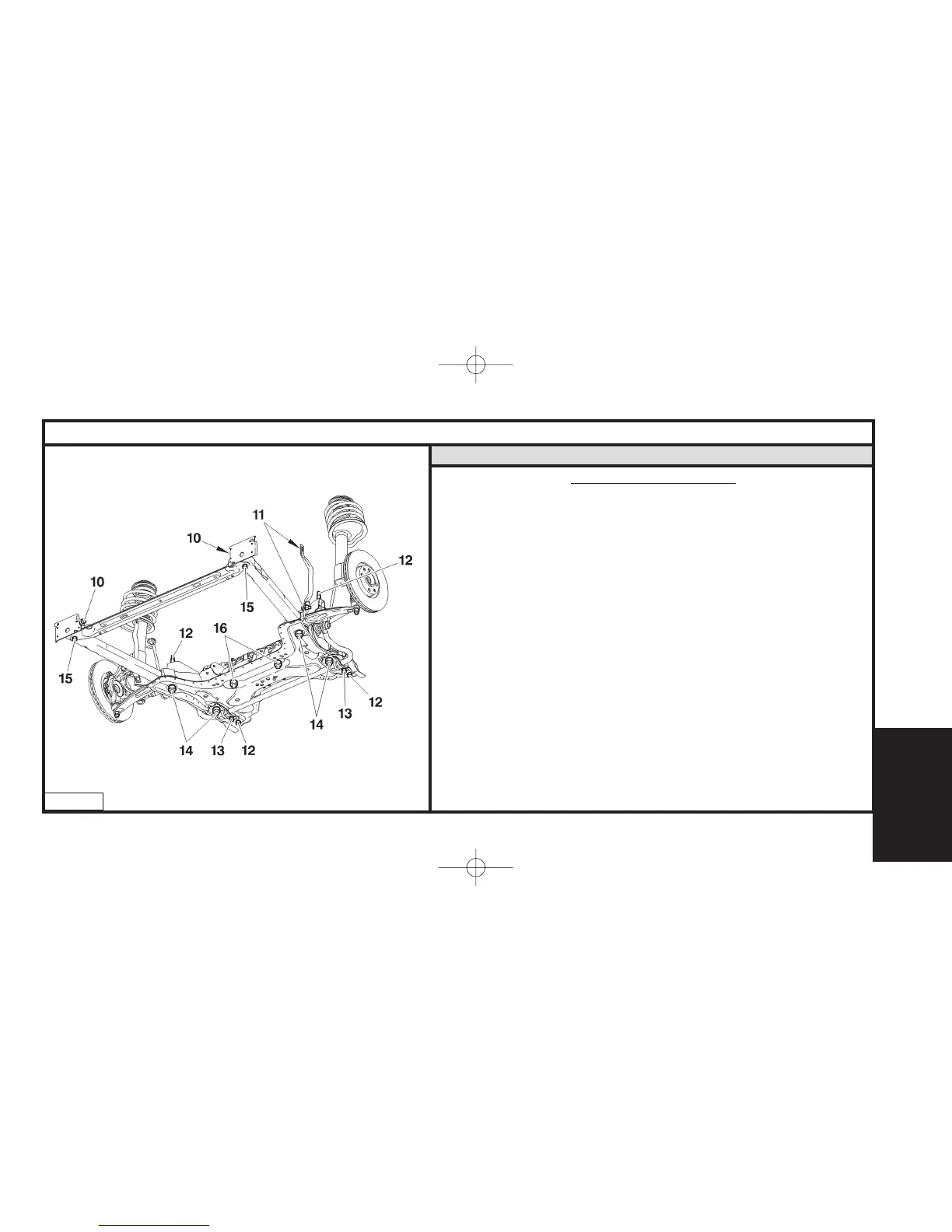

TIGHTENING TORQUES: SUSPENSION

Tightening torques (m.daN).

(10) Fixing of subframe extension on body : 5,1 ± 1,2

(11) Fixing of tie-rod on body : 1,8 ± 0,4

(12) Tie-rod screw on front subframe : 9,8 ± 0,9

(13) Fixing of anti-roll bar bearing on subframe : 10,4 ± 1

(14) Fixing of lower suspension arm on subframe : 11,1 ± 1

(15) Fixing of subframe extension on body : 8,5 ± 0,8

(16) Fixing of steering mechanism on subframe :8 ±0,8

B3CP08TD

Subframe
