Service Handbook OEB/OES/OGB/OGS
6.1 Electronic Control Board installation
i
Information:

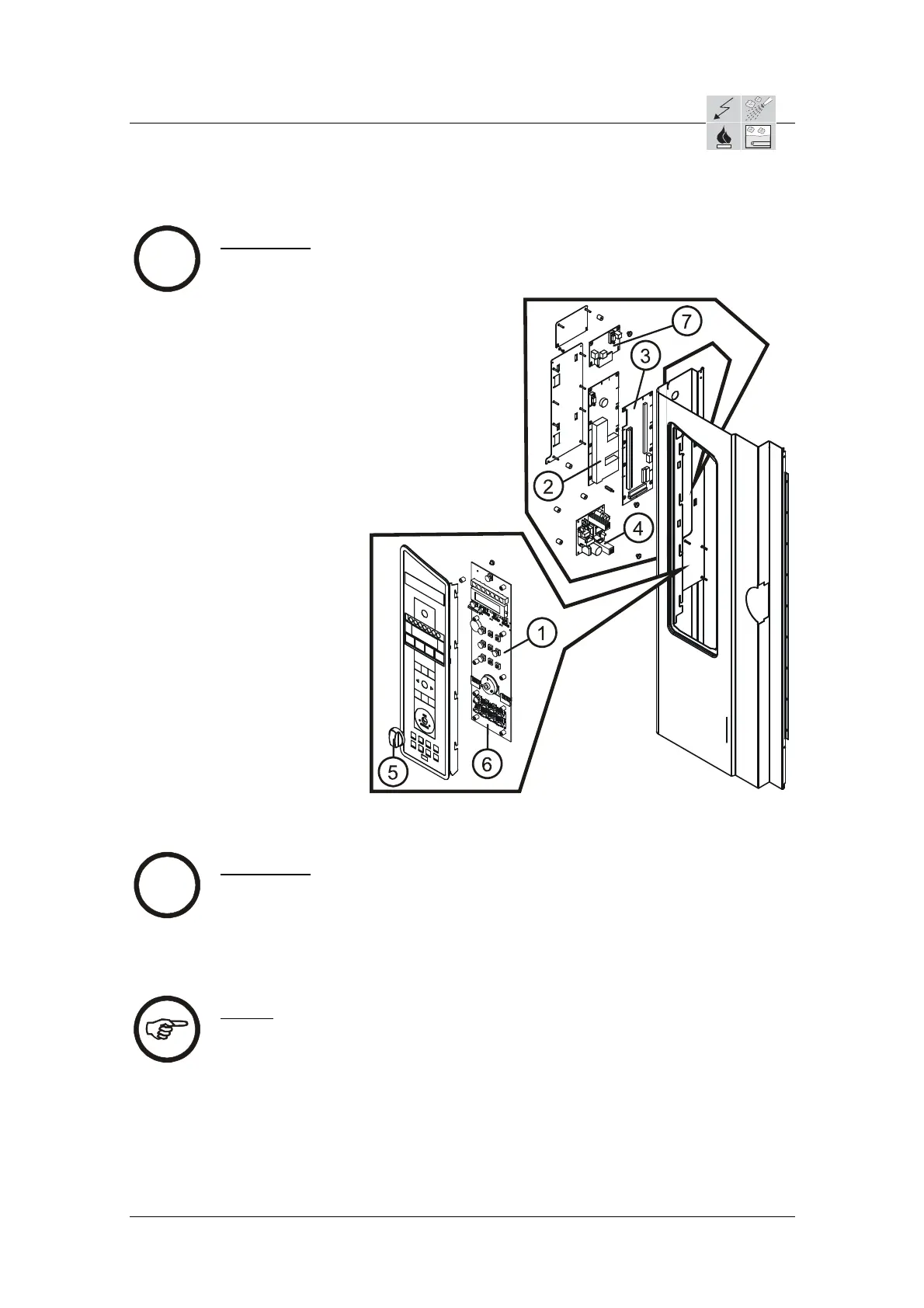

The Control Board ST5010 is modularly built, this means that the various function
groups are built in as separate function modules. The modules are as follows:
1 = Operation mo
dule (BM)
2 = Control module (SM)
3 = Gas module (GM)
4 = Arrangement module (VM)
5 = Adjustable knob
6 = Picto module, Option
7 = Communications module (KM, Option
Identity module (IDM)
in wiring loom
6.1.1 Operation module (BM) replacement
i
Information:
Operation module part no.: 5019101
On the operation module are found the operation elements (keys, adjustable
knobs), function and operation indicators and the display.
For all P3 units, there is only one operation module.
Check:
When the green LED 44 is lit or blinking on the back side of the panel, the
operation module is operating correctly (module self-checking).
LED 44 see 6.1.5 Positions of the LEDs on the Controls.
AS/11-2011 6_01e_Electronic Control Board installation_c
Page 1 / 8
