Service Handbook OEB/OES/OGB/OGS
6.5.3 Probe with stuffing box assembly B10 (CTC)
Check:
Grease-/steam escaping due to a contracted seal insert replace core
temperature probe.
Instructions:
Unclip the old probe from the controls and separate the probe in the oven from
the probe cable.
Loosen the probe assembly hexagon screw in the oven above on the unit
ceiling.
Pull carefully the old CTC probe with the stuffing box assembly partially into
the oven so that the stuffing box assembly is in the oven. Thread the old
stuffing box assembly out of the cable.
Securely connect the cable of the old probe with the connection wires of the
new probe (twist together or solder the ends together) and carefully pull the
old probe into the connection area thereby pulling the new probe into the
unit. The probe cable in the oven should be long enough so that it can be
properly positioned around the holding plate under the probe holder.
Slide the probe stuffing box assembly upwards towards the oven ceiling and
screw in the hexagon screw of the probe connection.
Clip the probe onto the controls. Observe the wire colours of the probe cable.
Pull the probe connection after the first heating (200°C).
Check how the strain relief is working on the probe connection by pulling on
the probe cable.
i
Information:
Due to the pressure on the probe connection on the sealing insert and the high
oven temperatures, the insert may contract causing it to not longer be air tight. A
securely sealed fitting protects against possible damage.

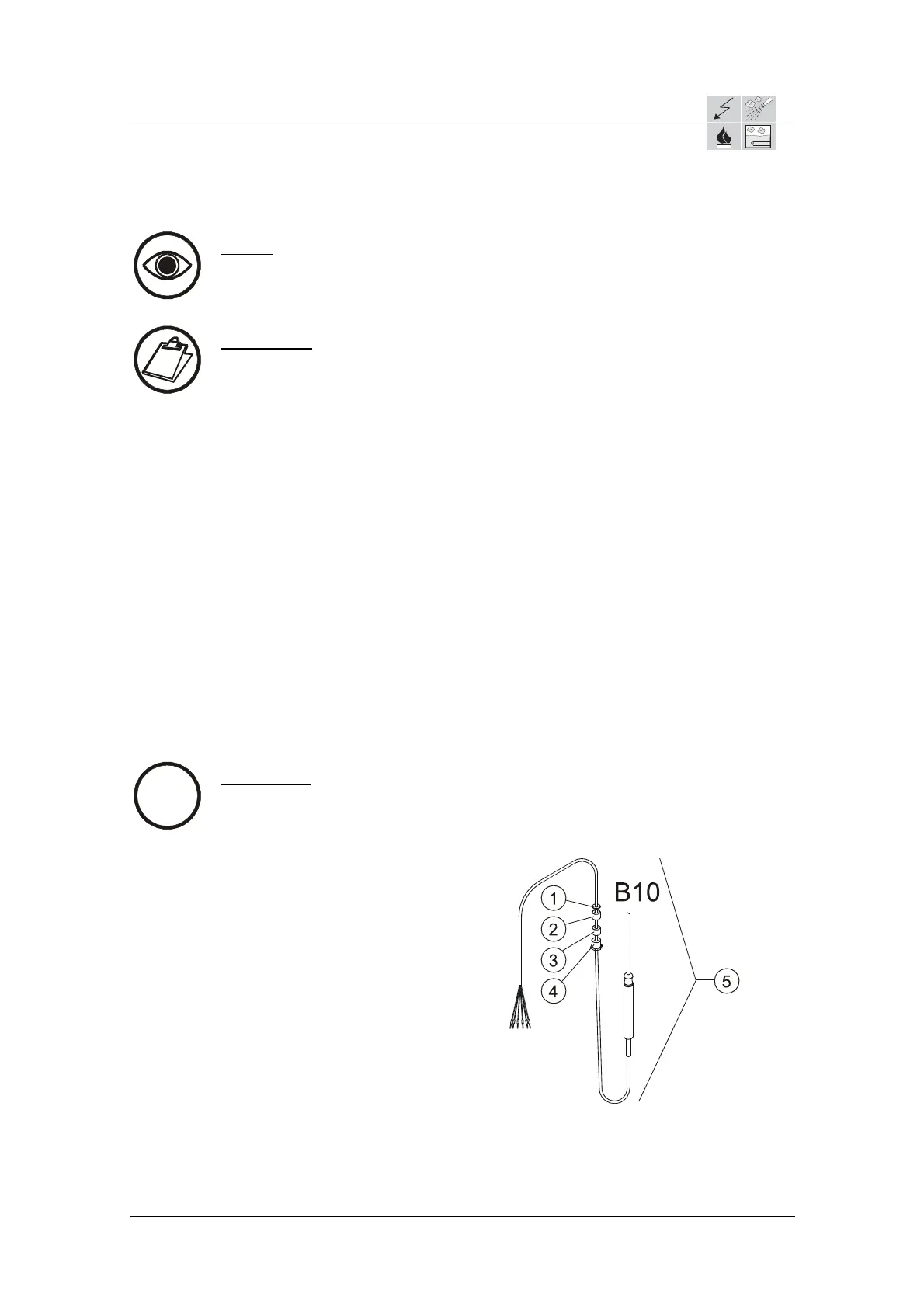

1 = Wa
sher for CTC lead
2 = Seal
3 = Insulation washer
4 = Hexagon sealing screw
5 = Core temperature probe complete Part no.: 5002068
AS/11-2011 6_05e_Probe assembly and replacing_b
Page 3 / 5
