Service Handbook OEB/OES/OGB/OGS
AS/11-2011 / Item 7016574 6_12e_Door latch_Door contact switch removal and installation_b.doc
Page 1 / 2
6.12 Door latch / Door contact switch removal and installation
Check:
After the programme has been started, the unit is not functioning. In the funtion
display, the symbol "Unit started"
.is lit
Information:
The door magnet switch (in the door catch) switches the motor and the heating
elements off, if the door latch is turned in the airing position (door latch is
horizontal) .
Door latch replacement
Instructions – Door latch removal:
Open the inner door holding clamps and swing the inner door out.
Remove the door latch 3 by removing the 2 hexagon socket screws M6 6.
Remove the door latch 3.
Instructions –Door latch installation:
Place both the holder catches 2 of the door latch 3 in the square holes 5 on
the side of the outer door 1.
Assemble the door latch 3 with the 2 hexagon socket screws M6 6 and secure
the screws with screw securing lacquer (Loctite).
Close the inner door.

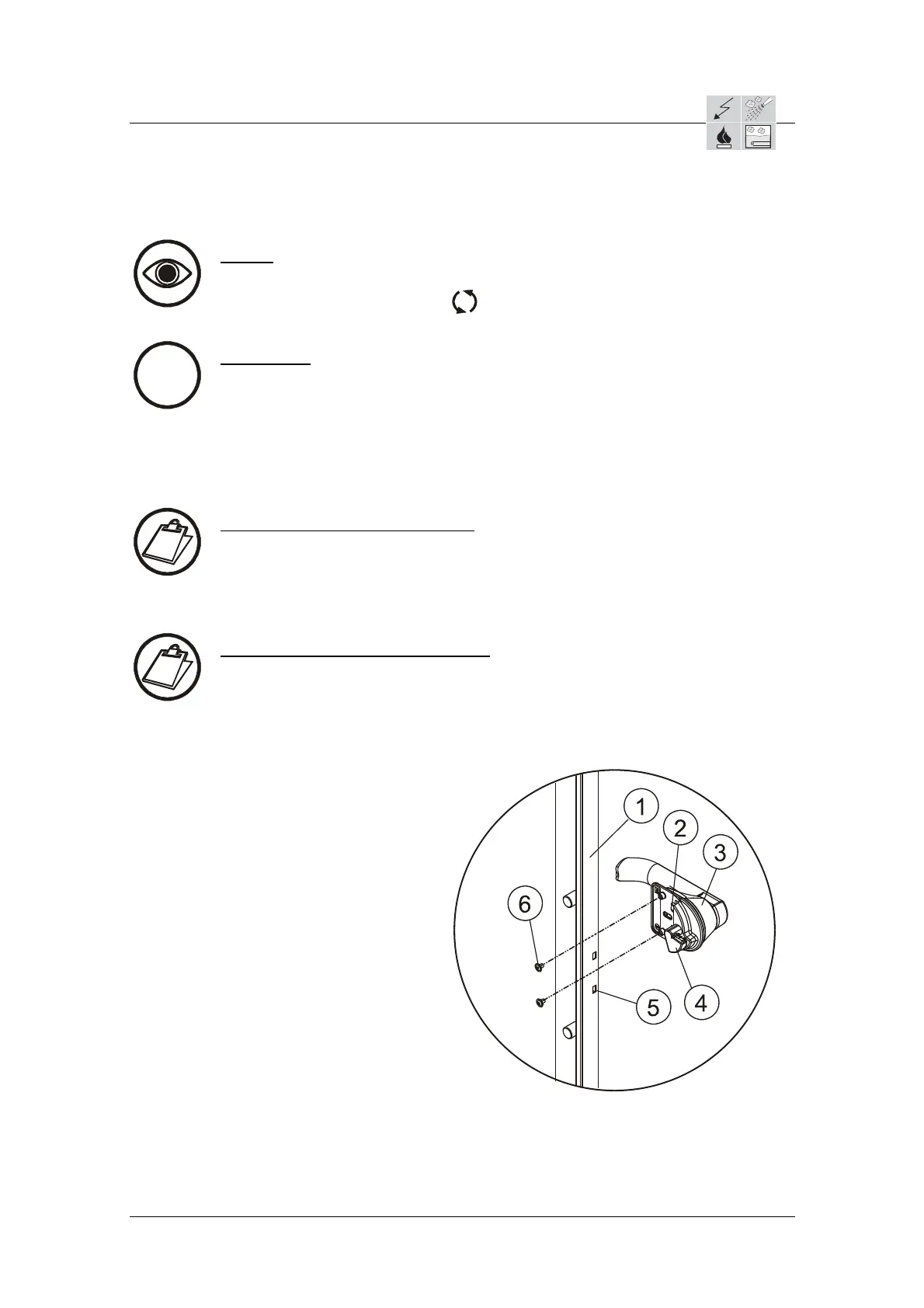

1 = Outer door
2 = Door latch Holder catches
3 = Door latch part no. 6012000
4 = Locking worm
5 = Holes for door latch
6 = Hexagon socket screws M6
