Service Handbook OEB/OES/OGB/OGS
AS/11-2011 / Item 7016564 6_07e_Steam Generator-Immersion heater replacement_b.doc
Page 1 / 1
6.7 Steam Generator-Immersion heater replacement (only OEB)
Check:
 On-site fault current breaker is tripped.
 The warm up time until standy mode is too long.
 Safety thermostat N8 is tripped.
 Error code E33 = Steam generator heater malfunction
Safety:
 When working on the unit, make sure that the main power supply is
disconnected (an all-pole isolation switch with a minimum contact opening of
3mm must be located close to the unit – on site) and ensured against
switching on again.
 Safety thermostat must be installed with the cable spring above.
 Safety thermostat must be installed in the top immersion heating element.
Instructions – Removing the flange immersion heating element:
 Empty the steam generator 1 by starting the automatic steam generator
flushing in the menu Mr. C. (see Chapter 4.2).
 Switch off main power supply. (see above safety notice), before the steam
generator is filled again with water.
 Disconnect the safety thermostat N8 4 before removing the immersion heating
element 3.
 Unclip the connection cables between the contactor and heating element 3.
 Loosen and remove the nut M6 from the flange immersion heating element.
 Pull the immersion element 3 out from the steam generator 1.
Instructions – Replacing the flange immersion heating element:
 Check that the new immersion heating element 3 has a new flat seal 2.
 Slide the immersion heating element 3 into the steam generator 1 and fix in
place using M6 nuts with spring washers.
 Clip the wires for the heating element to the contactors.
Attention: Make sure the connections are secure on the contactors.
 Assemble the safety thermostat probe 4 into the top heating element (with
cable spring positioned above).

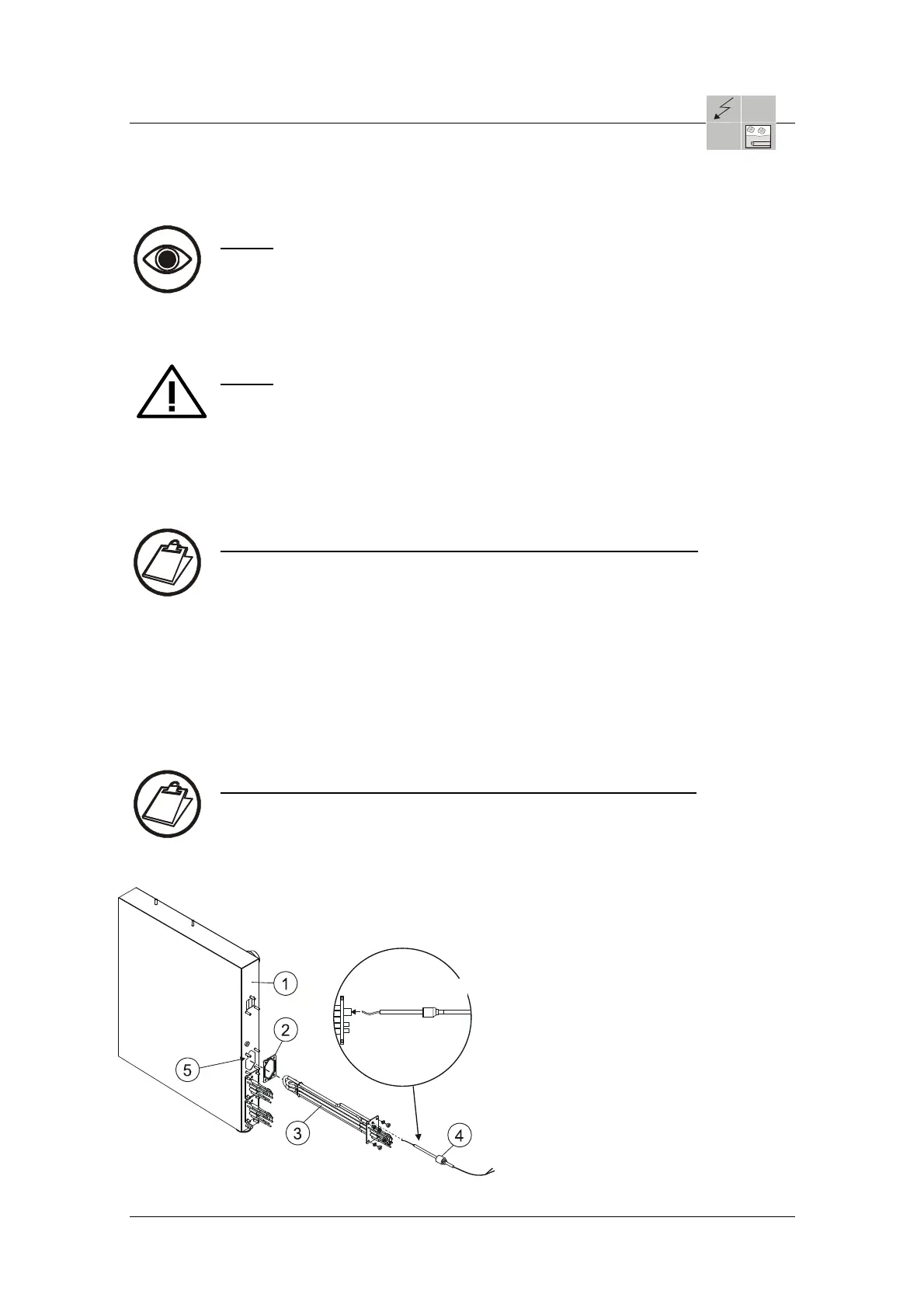

1 = Steam generator
2 = Flast seal for heating
element Part no.: ?
3 = Flange immersion
heating element
4 = Safety thermostat probe
N8 Part.: 5002103
5 = Slot for correct
installation of the
immersion heating
element
above
