Service Handbook OEB/OES/OGB/OGS
2.3 Basic Settings

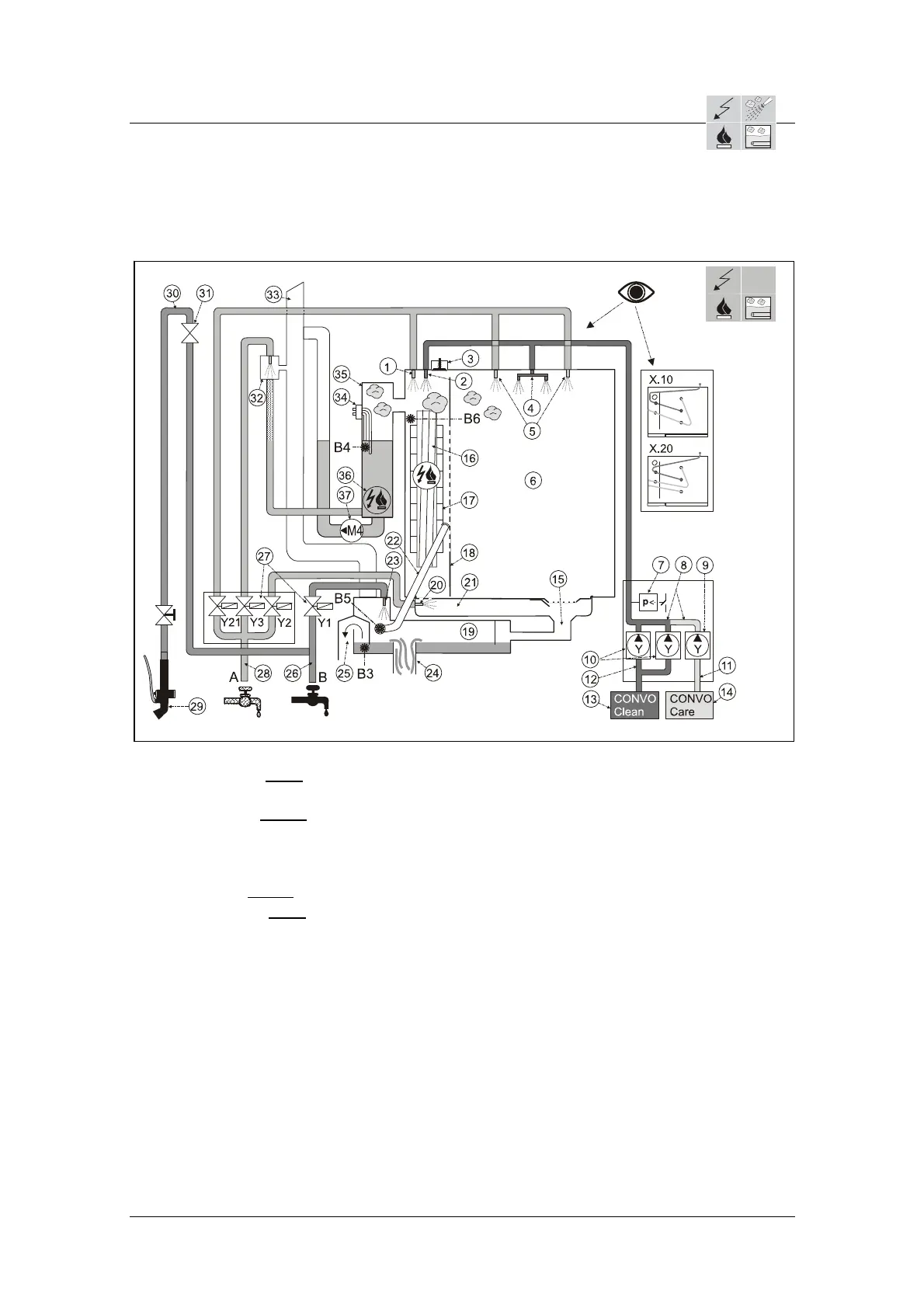

2.3.6 Water Flow plan
Page 1 / 2
Unit with steam generator
1 = Injection nozzle Water (CONVOClean
system)
2 = Injection nozzle Cleaner (CONVOClean
system)
3 = Pressure compensation valve (Low pressure
protection)
4 = Rotor nozzle cleaner
(CONVOClean system)
5 = Sprinkler nozzle Water
(CONVOClean
system)
6 = Oven chamber
7 = Pressure switch CONVOClean system (S2)
8 = Hose connection pumps pressure side
9 = Pump CONVOCare (Y20)
10 = Cleaner pumps (Y22 / Y23)
11 = Hose connection green CONVOCare-pump
suction side
12 = Hose connection red cleaner-pump suction side
13 = Cannister Cleaning solution CONVOClean
14 = Cannister Nozzle spray solution CONVOCare
15 = Convection heating / heat exchanger
16 = Cover Demoisturizing tub
17 = Fan
18 = Suction panel
19 = Condenser
20 = Demoisturizing nozzle
21 = Demoisturizing tub
22 =
Bypass pipe
23 = Condenser cooling nozzle
24 = Condenser drain
25 = Condenser over flow
26 = Water connection B (hard water)
27 = Solenoid valve with Flow quantity limiter
28 = Water connection A ( Soft water)
29 = Hand shower
30 = Hand shower hose
31 = Stop valve Hand shower
32 = Back flow protection with nozzle Steam
generator filling
33 = Ventilation pipe
34 = Water level probe (B1 - bl/rd)
35 = Steam generator
36 = Steam generator heating / heat exchanger
37 = Steam generator Draining pump (M4)
AS/11-2011 2_03_06e_Water Flow plan_b
