Service Handbook OEB/OES/OGB/OGS

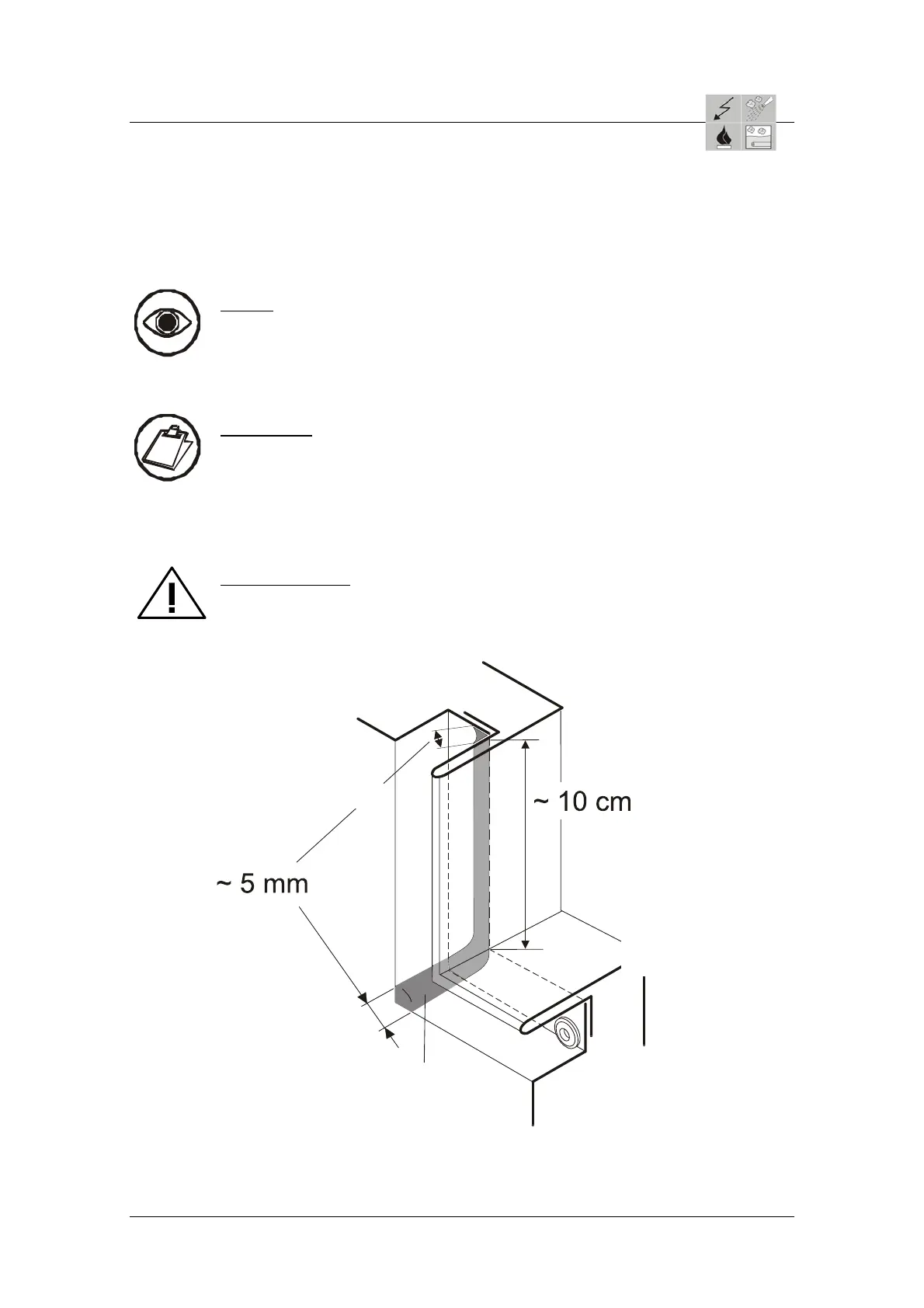

6.15 Sealing the Corners on the Door Gasket Frame

Only for table units.

Page 1 / 1

Check:

Water drops on the lower corners of the unit because it is not water-tight.

Instructions:

1. Remove the hygienic door gasket.

2. Dry both lower corners of the door gasket frame.

3. Clean both corners with alcohol or acetone.

4. Re-seal the corners with silicone E 43, Part No. 700 40 20.

Safety: Important

5. Allow the silicone 24 hours to harden (vulcanisation time) before putting the

door gasket back in!

Silicone glue

Inner casing

Outer casing

AS/11-2011 6_15e_Sealing the Corners on the Door Gasket Frame_b
