Configuring Voice VLAN

Voice VLAN enables network administrators to improve VoIP service by configuring ports to carry IP voice traffic from IP

phones on a specific VLAN. VoIP traffic has a preconfigured OUI prefix in the source MAC address. Network

administrators can configure VLANs on which voice IP traffic is forwarded. Non-VoIP traffic is dropped from the Voice

VLAN in Auto Voice VLAN Secure mode. Voice VLAN also provides QoS, ensuring that the quality of voice does not

deteriorate if the IP traffic is received unevenly. The system supports one Voice VLAN.

There are two operational modes for IP Phones:

 IP phones are configured with VLAN-mode as enabled, ensuring that tagged packets are used for all

communications.

 If the IP phone’s VLAN-mode is disabled, the phone uses untagged packets. The phone uses untagged packets

while retrieving the initial IP address through DHCP. The phone eventually uses the Voice VLAN and begins

sending tagged packets.

This section contains the following topics:

 Defining Voice VLAN Global Settings

 Defining Voice VLAN Port Settings

 Defining OUIs

 Defi

nin

g Voice VLAN Global Settings

The Voice VLAN Global Setting Page displays the parameters for creating and configuring the Voice VLAN global settings.

1. Click L2 Fe

atures > Voice VLAN > Global Setting. The Voice VLAN Global Setting Page opens:

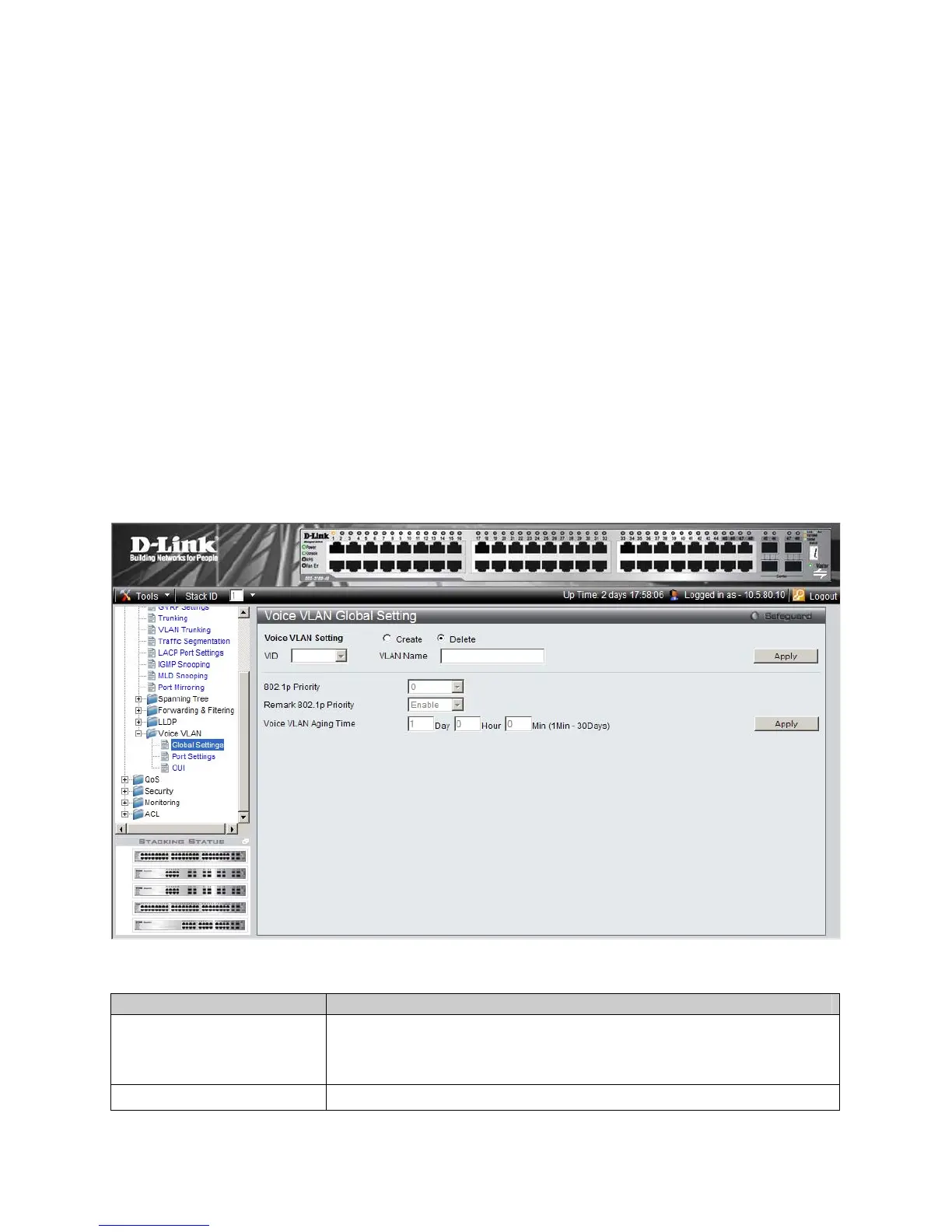

Figure 0–40 Voice VLAN Global Setting Page

The Voice VLAN Global Setting Page contains the following fields:

Field Description

Voice VLAN Setting

Specifies the action to take. The possible field values are:

 Create — Creates the Voice VLAN.

 Delete — Removes Voice VLAN from the device. This is the default.

VID

Selects the Voice VLAN ID number.
