Defining Ports
Configuring Port Properties
Viewing Port Properties
Configuring Port Properties
The Port Setting Page contains parameters for configuring port or LAG properties. Gigabit ports operate in full duplex
mode only, and take on certain characteristics that are different from the other choices listed. The copper ports also support
auto MDI/MDIX for cross over cables.
To define port parameters:
1. Click Configuration >Port Configuration > Port Setting. The Port Setting Page opens:

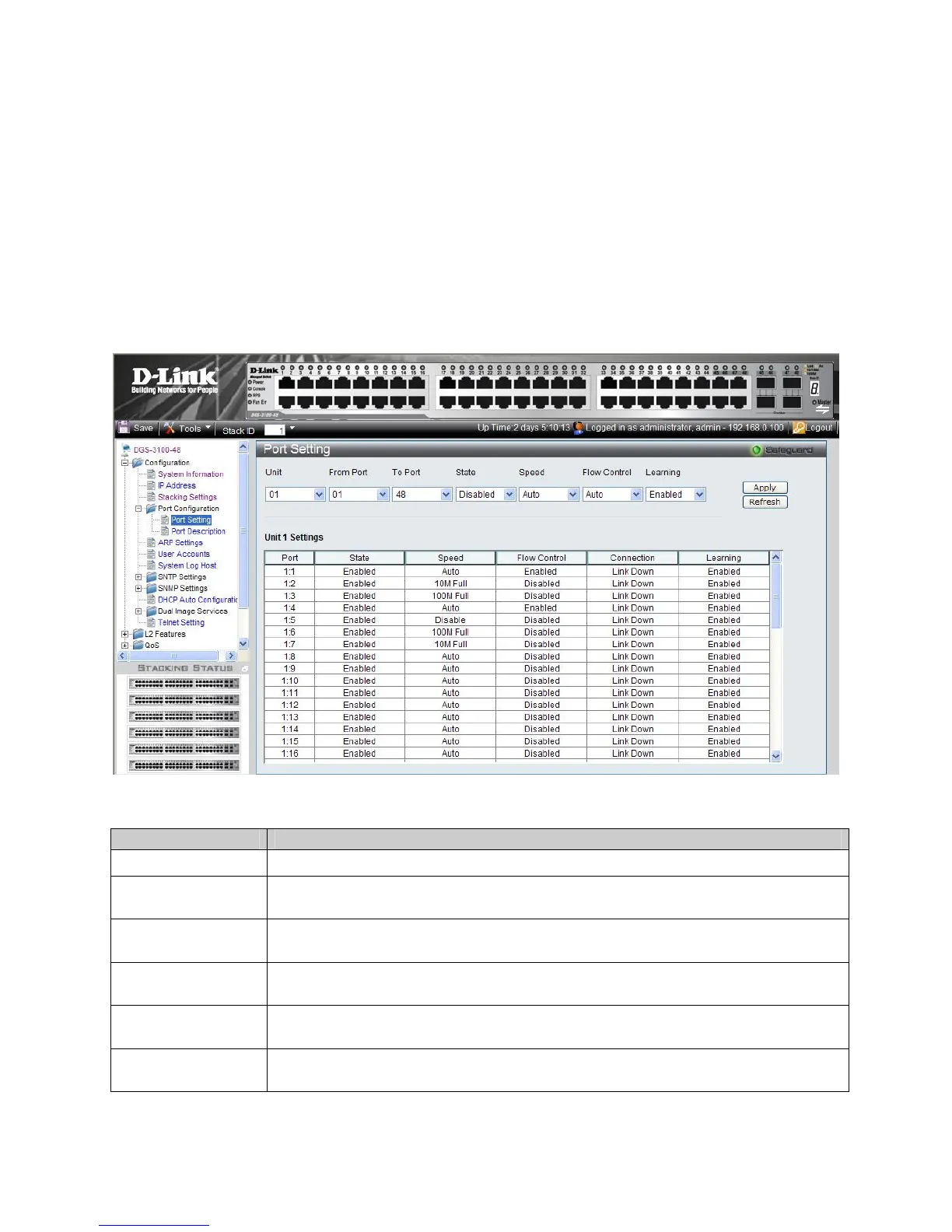

Figure 0-5 Port Setting Page
The Port Setting Page contains the following fields:
Field Description
Unit
Defines the stacking member or LAG for which the port settings are displayed.
From Port
Defines the port number from which the port configuration will apply.. This field appears only if
a unit number is selected in the Unit field.
From LAG
Defines the LAG number from which the port configuration will apply. This field appears only
if LAG is selected in the Unit field.
To Port
Defines the port number to which ports the configuration will apply. This field appears only if a
unit number is selected in the Unit field.
To LAG
Defines the LAG number to which the port configuration will apply. This field appears only if
LAG is selected in the Unit field.
State
Defines whether the interface interface is currently operational or non-operational. The possible
field values are:
33
To Next Page
