Mapping Ports to Packet Priorities
The 802.1P Default Priority Page provides traffic classification. by assigning priority values per port. The priority value is
assigned when packet arrives to a port with an empty priority tag.
1. Click QoS > 802.1p Default Priority. The 802.1P Default Priority Page opens:

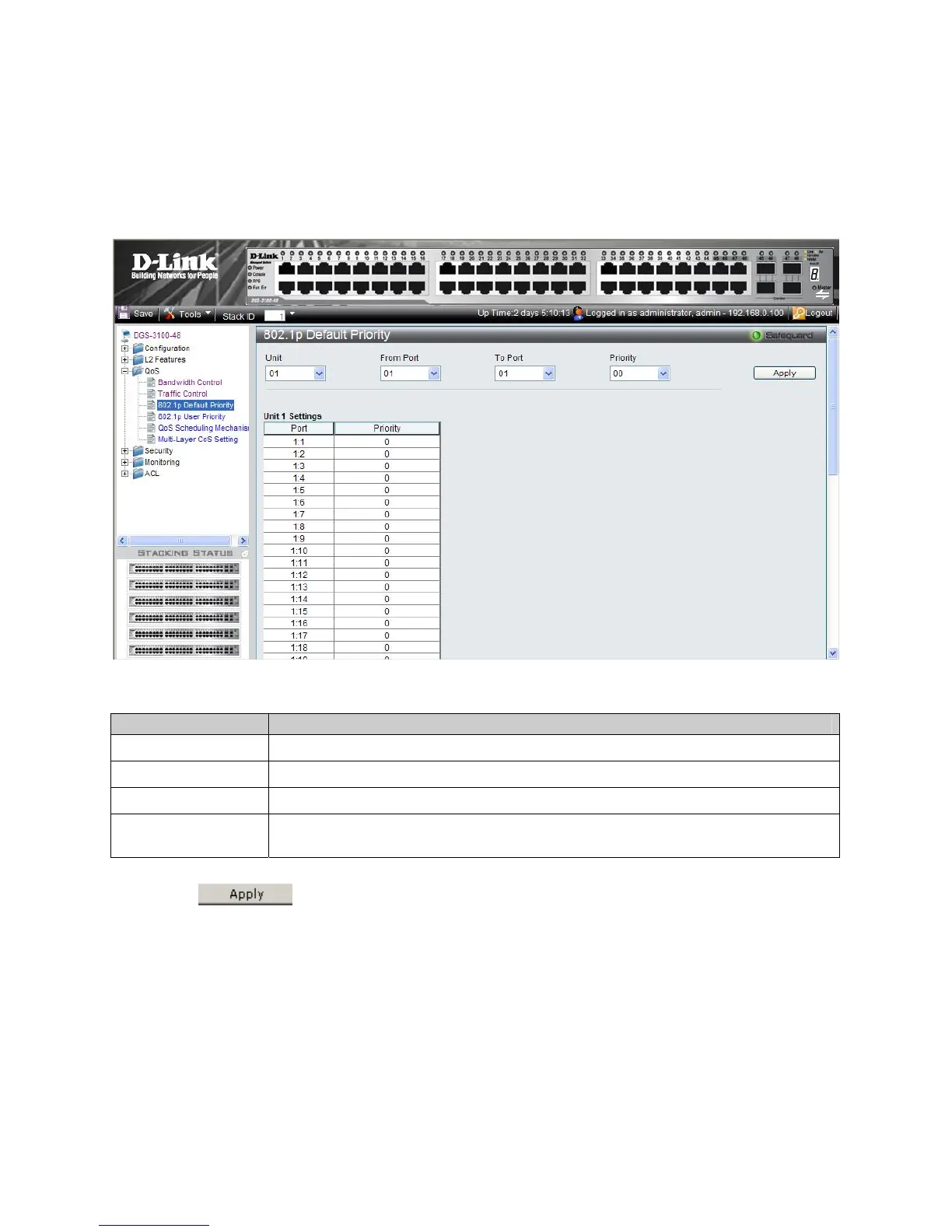

Figure 4-4 802.1P Default Priority Page
The 802.1P Default Priority Page contains the following fields:
Field Description
Unit
Defines the stacking member for which the port packet priorities are displayed.
From Port
Defines the starting port for which the port packet priorities are defined.
To Port
Defines the ending port to which the port packet priorities are defined.
Priority
Defines the priority assigned to the port. The field range is 00-07, where 00 is the lowest
priority and 07 is the highest priority.
2. Define the Unit, From Port, To Port, Prioirity fields.
3. Click
. Ports are mapped to packet priorities, and the device is updated.
13
3

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
