Defining Access Profile Lists
This section contains the following topics:
 Adding Access Rules
 Adding ACL Profiles
 Defining Layer 2 ACL
 Defining Layer 3 IPv4 ACL
 Defining Layer 3 IPv6 ACL
 Adding Access Rules
Adding ACL Profiles
The ACL Profile List Page provides information for configuring ACL Profiles manually. ACL profiles are attached to
interfaces, and define how packets are forwarded if they match the ACL criteria.
1. Click ACL > Access Profile List. The ACL Profile List Page opens:

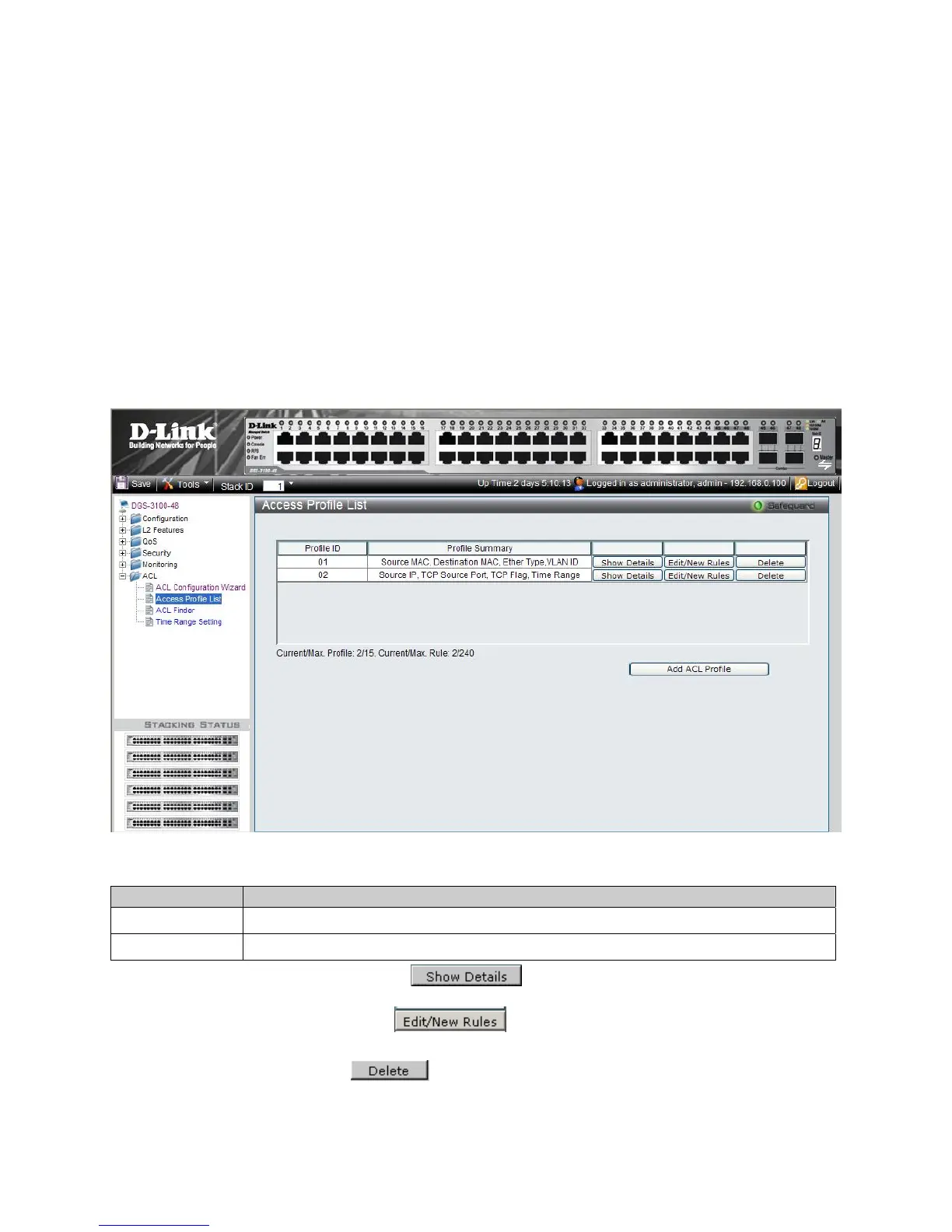

Figure 0-2 ACL Profile List Page
The ACL Profile List Page contains the following fields:
Field Description
Profile ID
Displays the profile Identification number.
Profile Summary
Displays the access rule.
2. To display an ACL’s profile details, click . The ACL profile details are displayed below the
ACL table.
3. To define or show an access rule, click
.
The Add Access Rule Page opens. (See ‘Defining
Access Ru
les Lists’ section, below.)
4. To delete an ACL profile, click
.
The ACL profile is deleted.
205

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
