DGS-3100 Series Gigabit Stackable Managed Switch User Manual

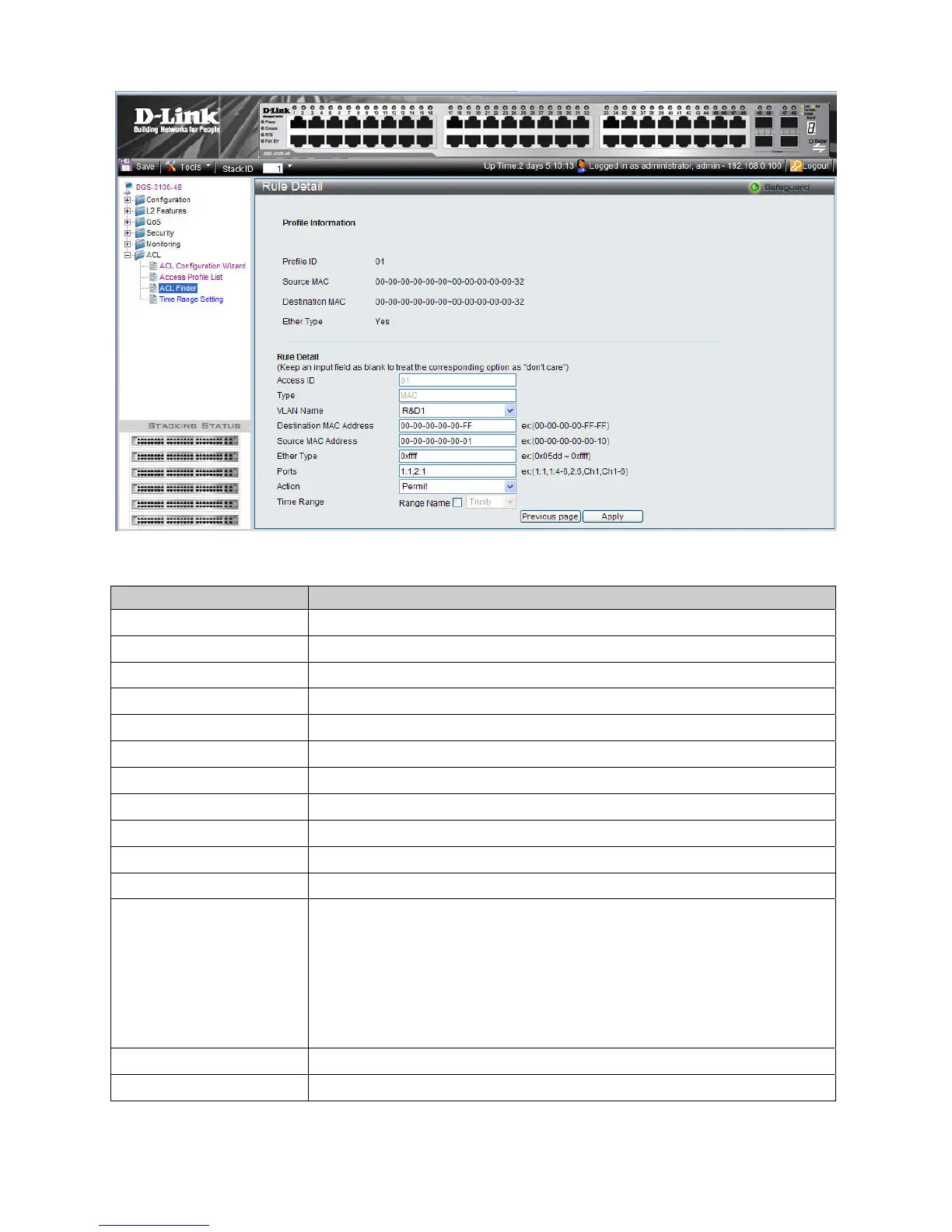

Figure 0-32 Rule Detail Page
The Rule Detail Page contains the following fields:
Field Description
Profile ID
Displays the profile ID range.
Source MAC
Displays the Source MAC range.
Destination MAC
Displays the destination MAC range.
Ether Type
Displays if Ether Type is included.
Access ID
Defines the Access ID
Type
Displays the profile type (can be MAC based or IP based).
VLAN Name
Defines the user-defined VLAN name.
Destination MAC Address
Matches the destination MAC address to which packets will be subject to action.
Source MAC Address
Matches the source MAC address to which packets will be subject to action.
Ether Type
Defines the code type used.
Ports
Indicates the ports or LAGs for which rules are sought.
Action
Defines the action for the profile. The possible fields are:
Permit — Forwards packets if all other ACL criteria are met.
Deny — Drops packets if all other ACL criteria is met.
Rate Limiting — Rate limiting is activated if all other ACL criteria are met.
Change 1P priority — VPT (CoS) value is changed if all other ACL criteria is met.
Replace DSCP — Reassigns a new DSCP value to the packet if all other ACL
criteria are met.
Time Range
Specifies whether the access rule is time-based.
Range Name
Selects the user-defined time range name to apply to the access rule.
