Danfoss VLT AutomationDrive FC 302 Programming Guide

•
•
•
-
-
-
-
-
-
5.2.5 1-3* Adv. Motor Data
N O T I C E
The following parameters are only available in FC 302:
Parameter 1-37 d-axis Inductance (Ld)
Parameter 1-38 q-axis Inductance (Ld)
Parameter 1-40 Back EMF at 1000 RPM
Parameter 1-44 d-axis Inductance Sat. (LdSat)
Parameter 1-45 q-axis Inductance Sat. (LqSat)
Parameter 1-49 q-axis Inductance Sat. Point
This parameter group contains parameters related to:
Motor nameplate load compensations.
Application load type.
Electronic brake function for quick stop/hold of the motor.
Ensure that the motor data in parameter 1-30 Stator Resistance (Rs) to parameter 1-39 Motor Poles matches the motor. The default
settings are based on standard motor values. If the motor parameters are not set correctly, a malfunction of the drive system may
occur. If the motor data is unknown, running an AMA (automatic motor adaptation) is recommended. See parameter 1-29 Automatic
Motor Adaptation (AMA).
Parameter groups 1-3* Adv. Motor Data and 1-4* Adv. Motor Data II cannot be adjusted while the motor is running.
N O T I C E
A simple check of the X
1
+ X
h
sum value is to divide the line-to-line motor voltage by the sqrt(3) and divide this value by the
motor no load current. [VL-L/sqrt(3)]/INL = X
1
+ X
h
. These values are important to magnetize the motor properly. For high-pole
motors, it is highly recommended to perform this check.
e30ba065.13
P 1-30
R
Fe
X
h
R'
r
R
s
U
1
I
1
P 1-33
P 1-34
P 1-31P 1-35P 1-36
X'
2#
X
1#

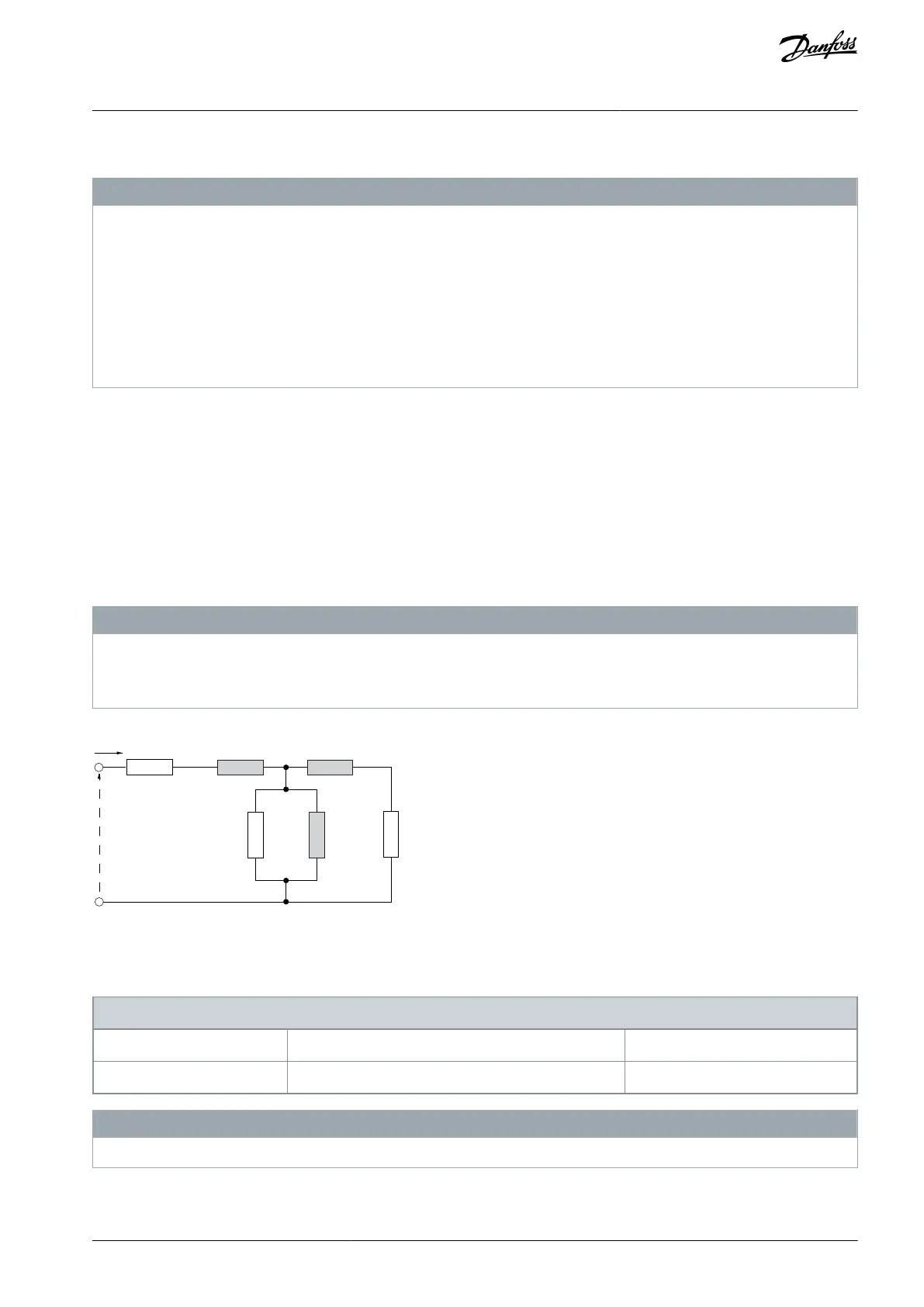

Illustration 30: Motor Equivalent Diagram of an Asynchronous Motor
Parameter 1-30 Stator Resistance (Rs)
Table 84: Parameter 1-30 Stator Resistance (Rs)
1-30 Stator Resistance (Rs)
Default value: Size related
Parameter type: Range, 0.0140 - 140.0000 Ohm
Setup: All setups
Conversion index: -4
Data type: Uint32
Change during operation: False
N O T I C E
This parameter cannot be adjusted while the motor is running.
Set the line-to-common stator resistance value. Enter the value from a motor datasheet or perform an AMA on a cold motor.
AU275636650261en-000101 / 130R0334 | 81Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
