3.3.3 Mains Connection for B1, B2 and B3
NOTICE!
Frequency converter sizes dier, but terminal numbers
are always the same. Incoming power is always 91, 92,
93 labeled L1, L2, L3.
NOTICE!
For correct cable dimensions see chapter 8 General
Specications.
130BT332.10

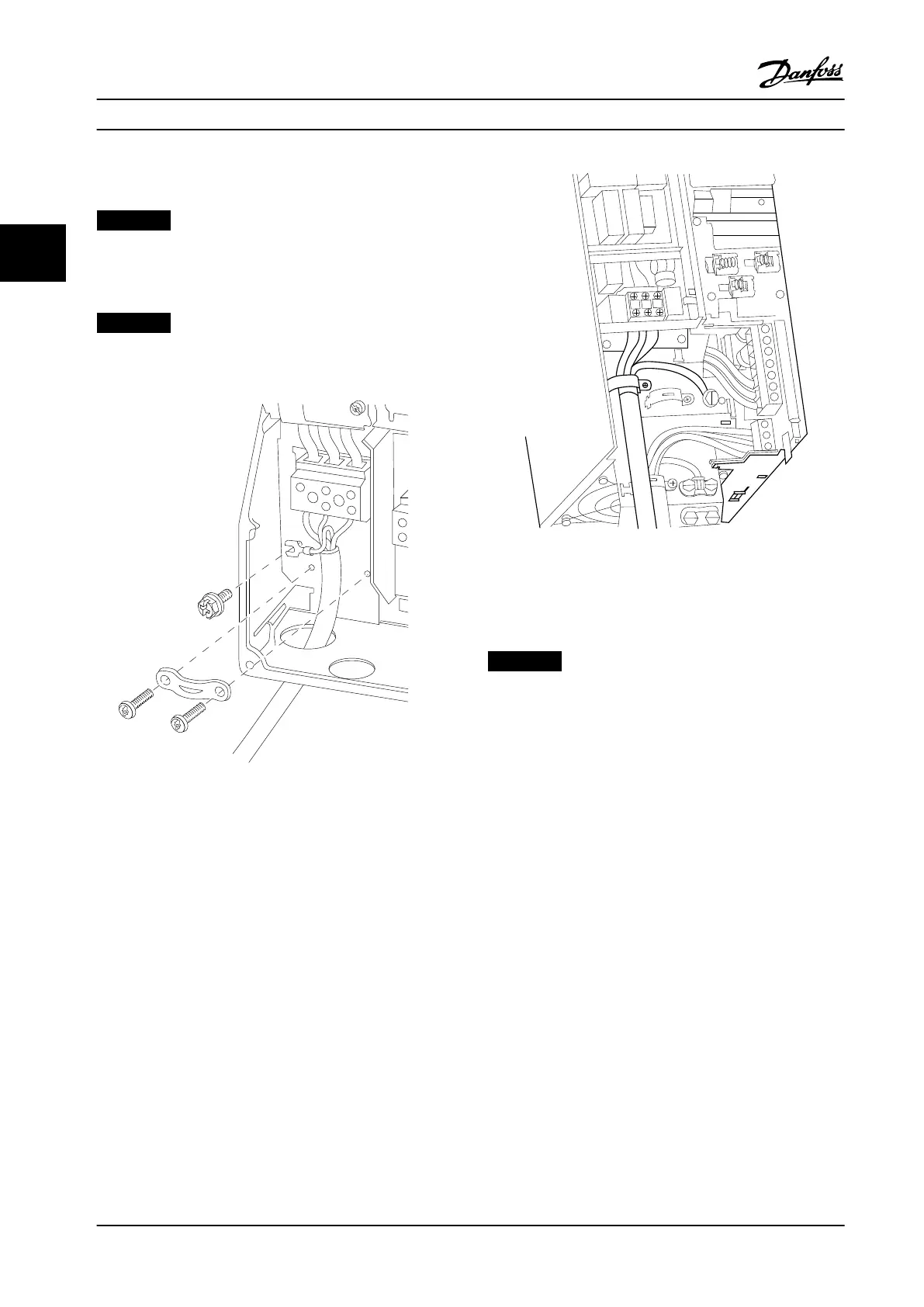

Figure 3.7 How to Connect to Mains and Grounding for B1
and B2
Figure 3.8 How to Connect to Mains and Grounding for B3
without RFI
130BA720.10
Figure 3.9 How to Connect to Mains and Grounding for B3
with RFI
3.3.4 Mains connection for B4, C1 and C3
NOTICE!
Frequency converter sizes dier but terminal numbers
are always the same. Incoming power is always 91, 92,
93 labeled L1, L2, L3.
How to Install
VLT
®
Compressor Drives CDS 302/CDS 303
18 Danfoss A/S © Rev. 2013-07-03 All rights reserved. MG34M422
