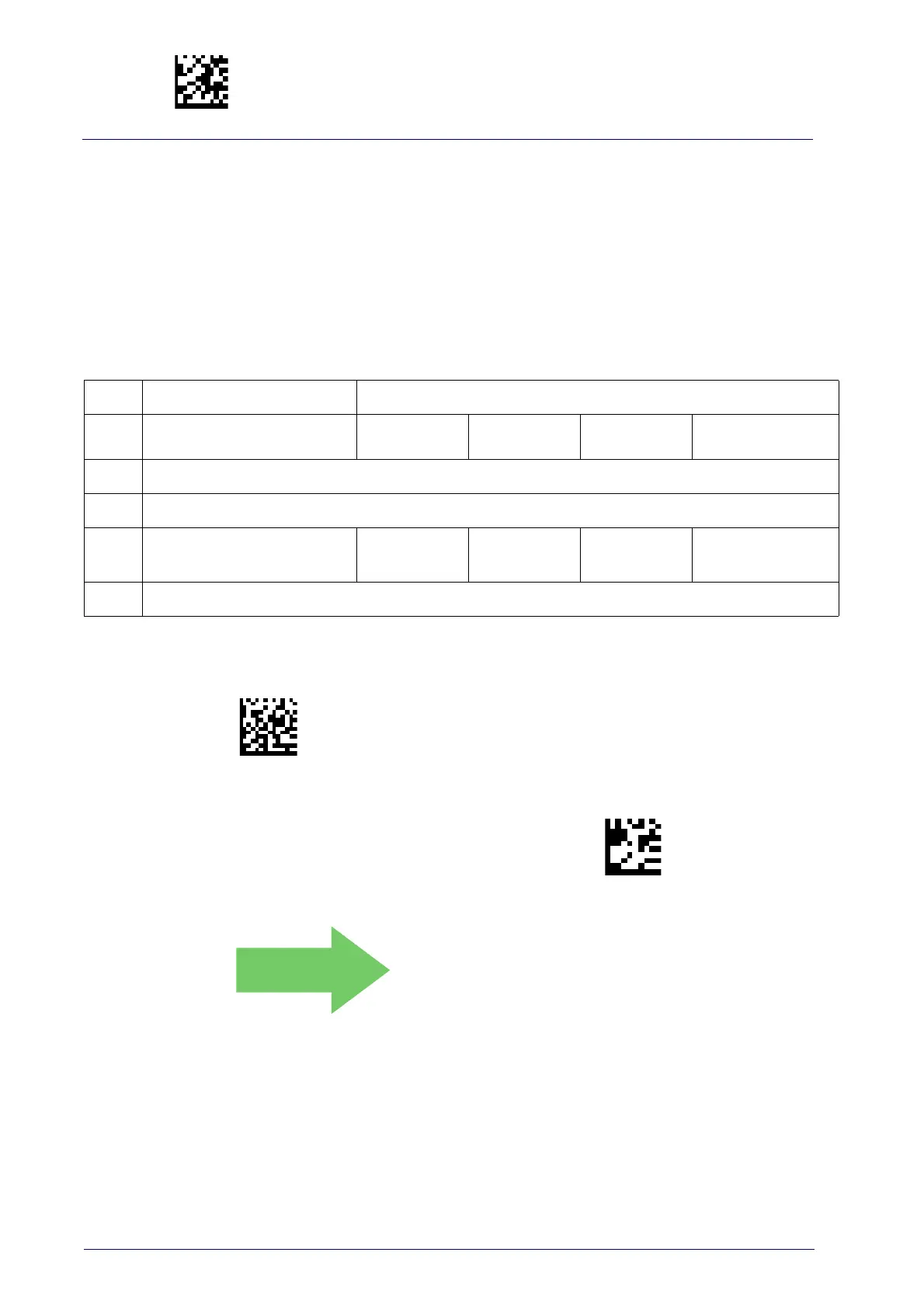

Enter/Exit Programming Mode
108 PowerScan™ PD9530/PBT9500/PM9500
Code 39 Set Length 2
This feature specifies one of the bar code lengths for Code 39 Length Con-
trol
. Length 2 is the maximum label length if in Variable Length Mode, or the
second fixed length if in
Fixed Length Mode. Length includes the bar code’s
check, data, and full-ASCII shift characte
rs.
The length does not include
start/stop characters.
Table 5 provides examples for setting Length 2. See page 268 for detailed
instructions on setting this feature.
Table 5. Code 39 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 39 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING .MODE
$CC3L2
Select Code 39 Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
50 = Length 2 is 50 Characters

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
