Datalogic PowerScan PM9500 User Manual

Configuring the Base Station
Product Reference Guide 9
Configuring the Base Station
To set up your BC9xx0 cradle you must:
1. Physically install the cradle.
2. Make all system connections.
3. Configure the BC9xx0 cradle.
Mounting the BC9xx0 Cradle
The cradle package contains the following items:
BC9xx0 Base Station (with Desktop Mounting
Bracket installed)
1 Metal Mounting plate
BC9xx0 Quick Reference Guide
(this manual)
1 Wall Mounting Bracket
The cradle can be either mounted on a flat surface for desktop usage or
affixed vertically to a wall.
Mounting Brackets
The cradle comes with two different mounting brackets. The appropriate
bracket is used depending on whether the cradle will be mounted on a hori-
zontal or vertical surface. When shipped, the cradle has the Desktop Mount-
ing Bracket installed. For vertical installation, the Wall Mounting Bracket
must
be
attached instead.

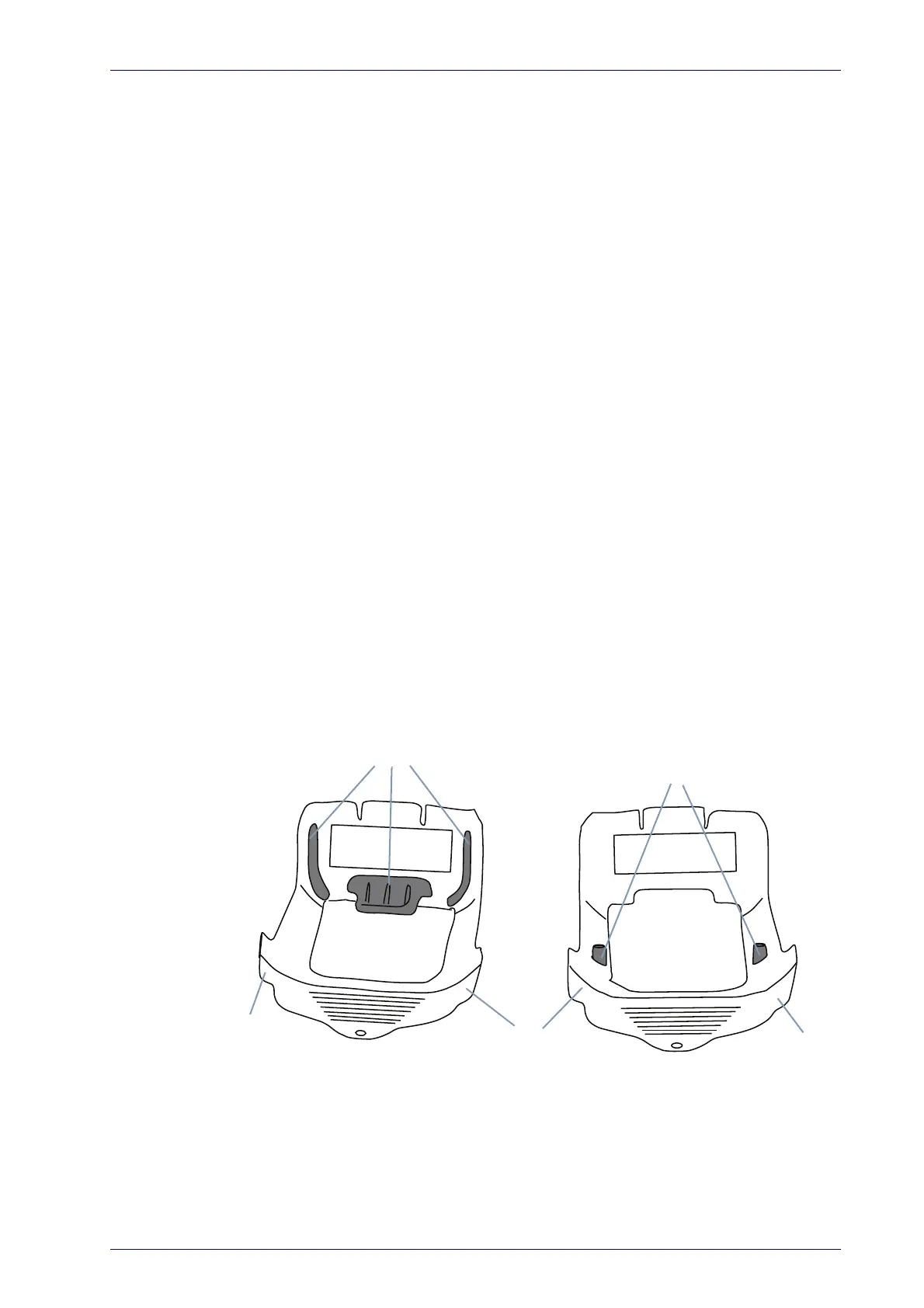

Figure 1. Mounting Brackets
Desktop Mounting Bracket
Wall Mounting Bracket
Bosses
(Horizontal )
(Vertical)
Tab
Tab
Tab
Ribs
• Desktop mount bracket has ribs to keep the scanner in place when the
cradle is horizontal.
• Wall mount bracket contains bosses to ke
ep the scanner in place when
the cradle is vertical.

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
