Datalogic PowerScan PM9500 User Manual

Technical Specifications
302 PowerScan™ PD9530/PBT9500/PM9500
Standard Cable Pinouts
The data below provides standard pinout information for the interface cable.

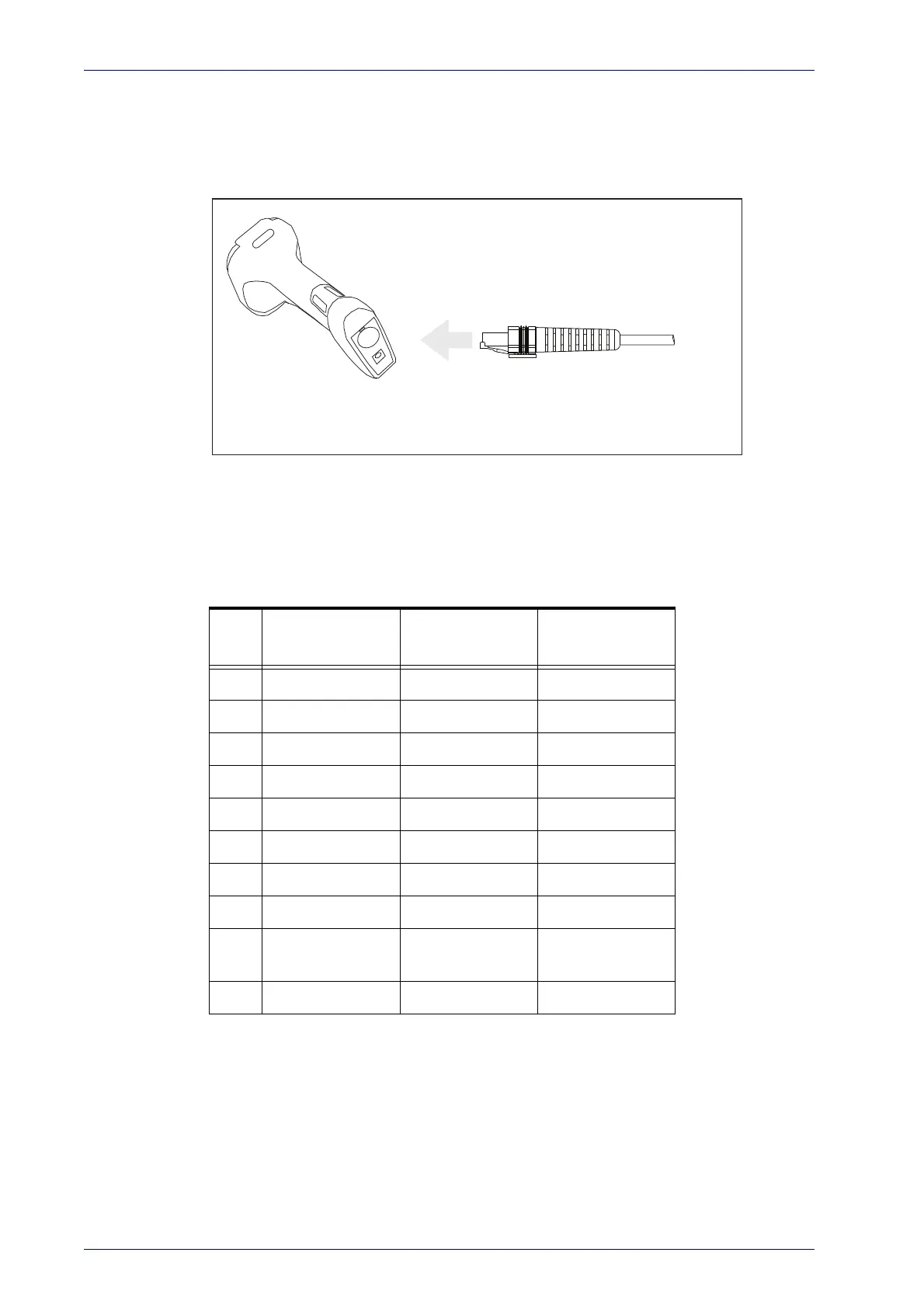

Figure 11. Standard Cable Pinouts: Handheld
The signal descriptions in Table 52 apply to the connector on the reader and
are for reference only.
Table 52. Standard Cable Pinouts
Pin RS-232 USB
Keyboard
Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9
DATAOUT (PC
si
de
)
10 CTS (in)

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
