Enter/Exit Programming Mode
156 PowerScan™ PD9530/PBT9500/PM9500
GS1 DataBar™ Expanded Set Length 2
This feature specifies one of the bar code lengths for GS1 DataBar™
Expanded Length Control
. Length 2 is the maximum label length if in Vari-
able Length
Mode, or the second fixed le
ngth if in
Fixed Length Mode.
Length includes the bar code’s data characte
rs only. The length can be set
from 1 to 74 characters. A setting of 0 specifies to ignore this length (only
one fixed length).
Table 19 provides examples for setting Length 2. See page 268 for detailed
instructions on setting this feature.

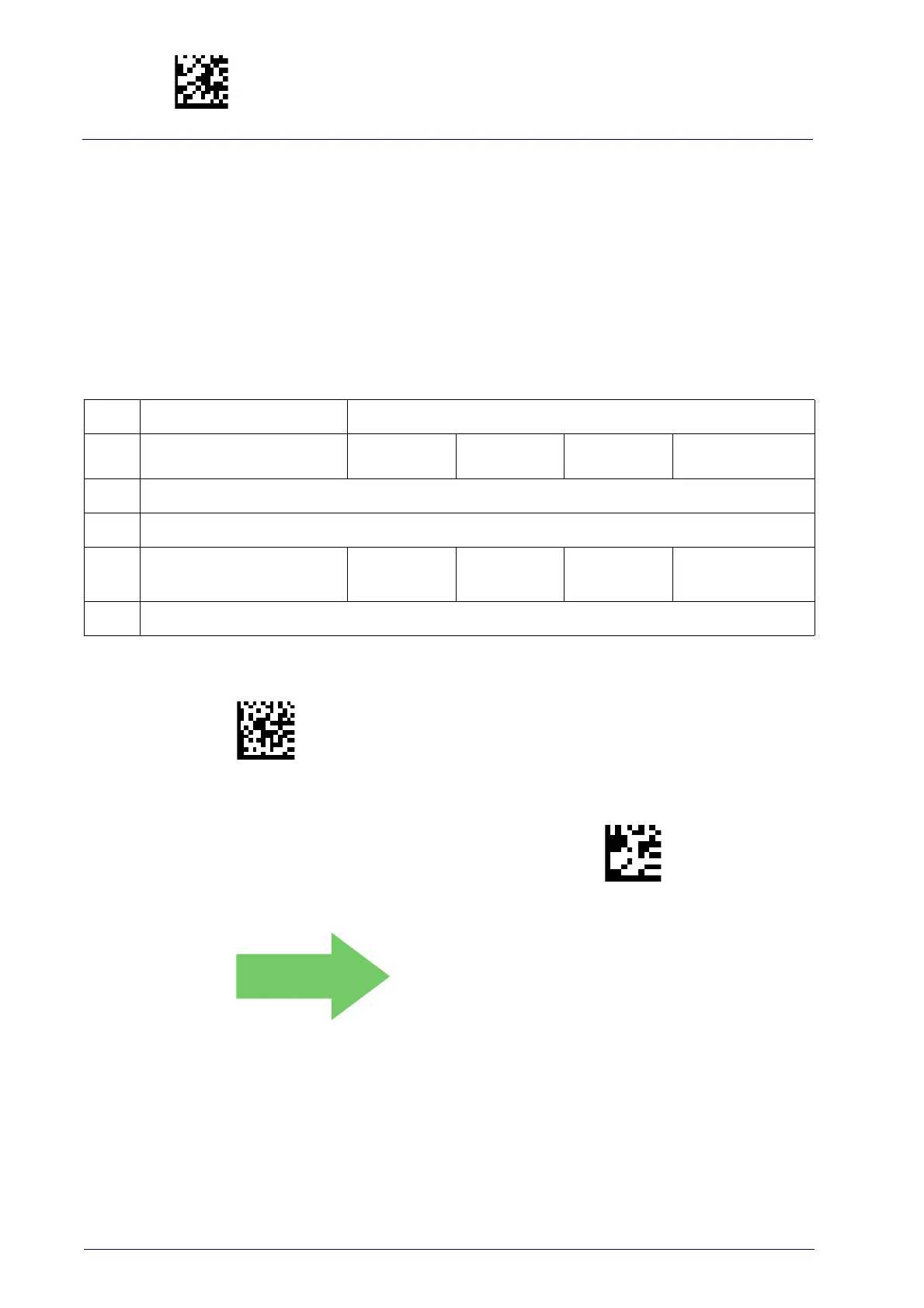

Table 19. GS1 DataBar™ Expanded Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (ignore sec-
ond length)
07 Characters 52 Characters 74 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 2 SETTING
4
Sc
an Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CXBL2
Select GS1 DataBar™ Expanded Set Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
74 = Length 2 is 74 Characters

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
