Datalogic PowerScan PM9500 User Manual

Setup
8 PowerScan™ PD9530/PBT9500/PM9500
Connecting the Cable (Corded versions)
A
B
C
D
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder

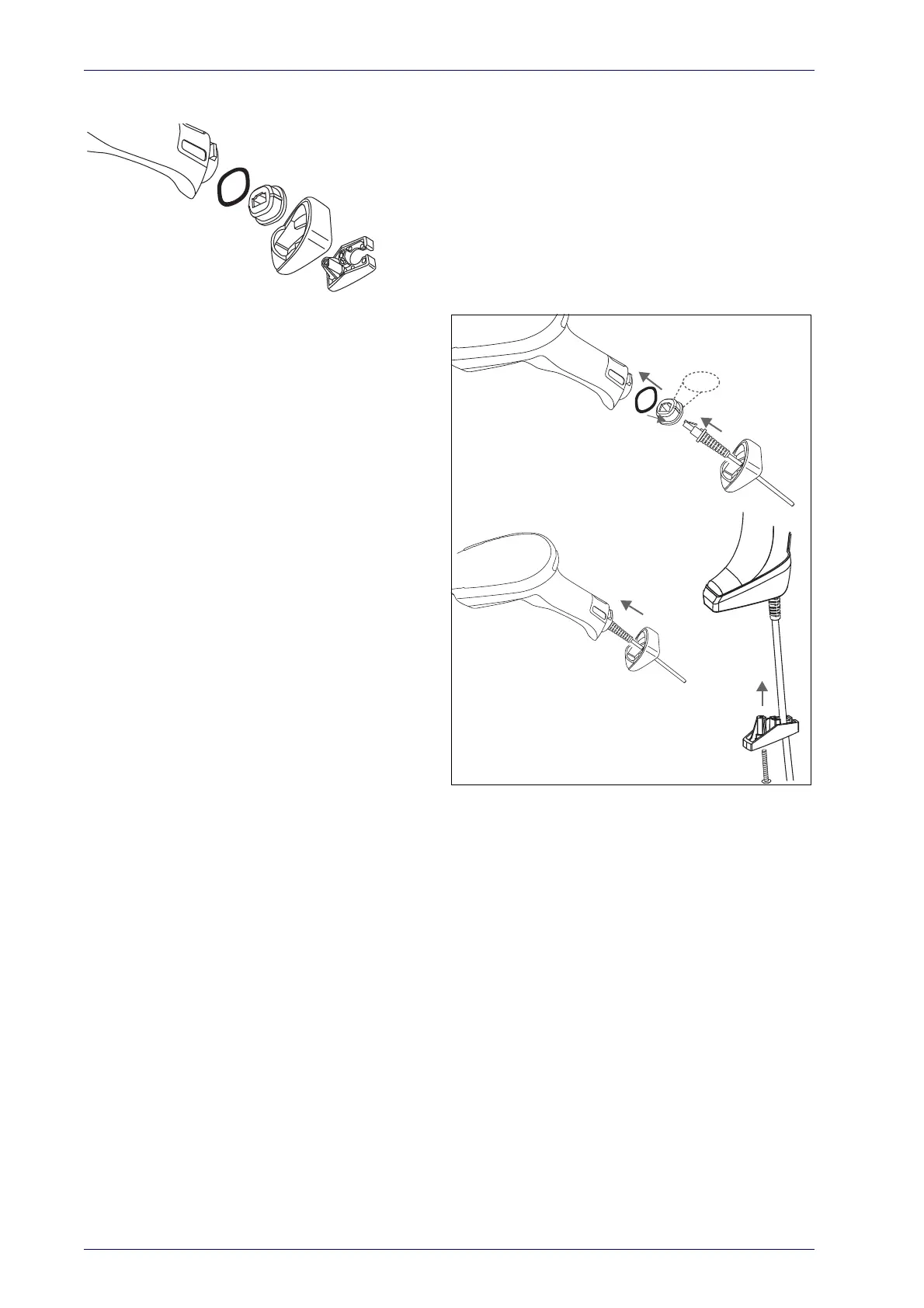

1. Slip the cable through the Cover.
2. Push the Rubber Gasket onto the Cable
Holder
.
3. Push the Cable Holder and gasket into
the
han
dle. Ensure that the “Front”
marking on the Cable Holder is facing
out, with the arrow pointing towards the
front of the scanner.
4. Insert the end of the cable into the
socke
t of the Cable Holder.
5. Push the Cover along the cable towards
t
h
e reader, and hook it over the yellow
“tooth” on the back of the handle.
6. Insert the cable through the Connector
Holder
, and push it up into the Cover.
7. Insert and tighten the sc
re
w to affix the
cable assembly to the reader handle.
FRONT>>
1
2
3
6
4
5
7

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
