Datalogic PowerScan PM9500 User Manual

Data Editing
Product Reference Guide 269
Data Editing
CAUTION
It is not recommended to use these features with IBM interfaces.
When a bar code is scanned, additional information can be sent to the host
computer along with the bar code data. This combination of bar code data
and supplementary user-defined data is called a “message string.” The Data
Editing features can be used to build specific user-defined data into a mes-
sage string.
There are several types of selectable data characters that can be sent before
an
d
after scanned data. You can specify if they should be sent with all sym-
bologies, or only with specific symbologies. Figure 7 shows the available
elements you can add to a message string:

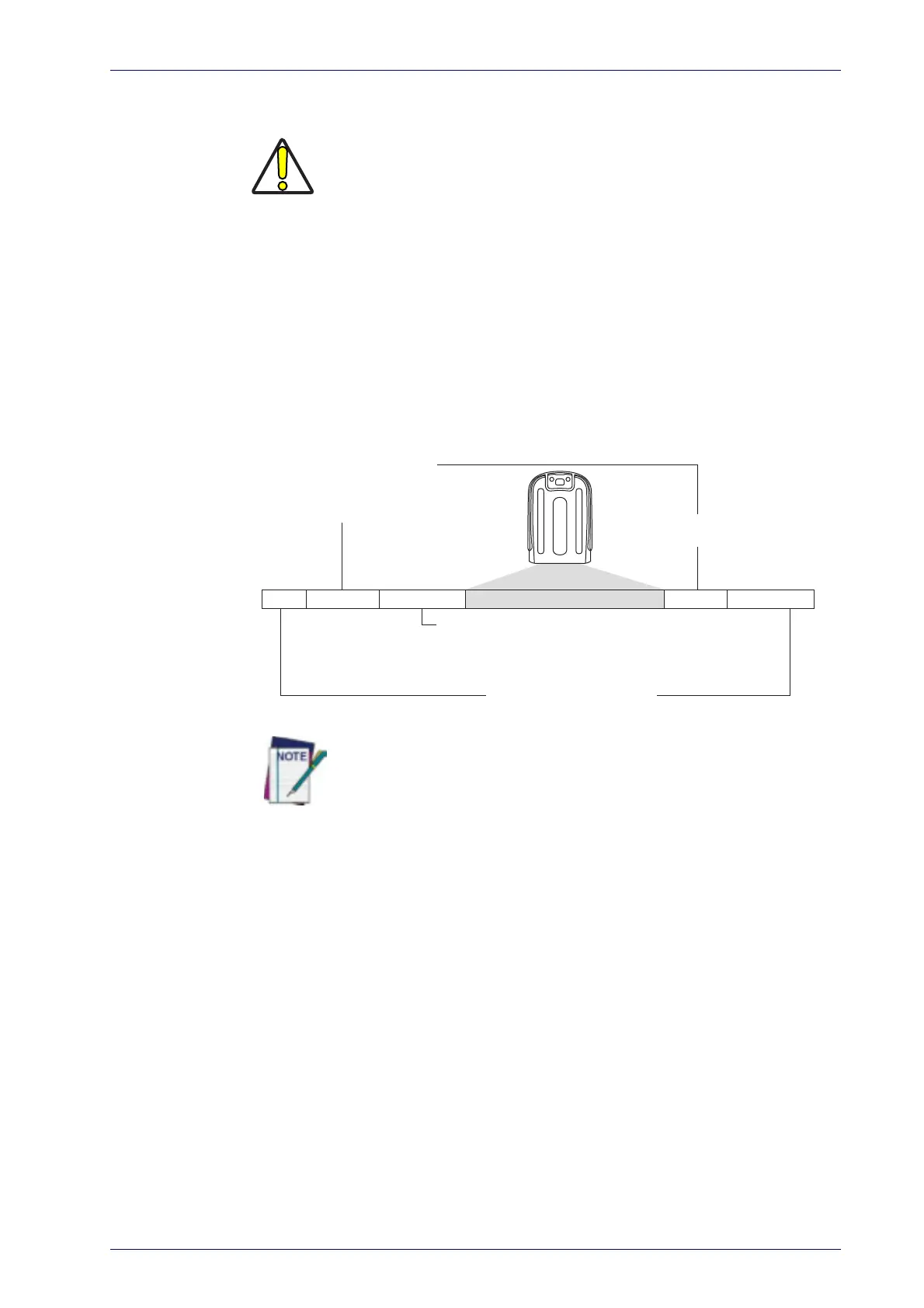

Figure 7. Breakdown of a Message String
Prefix SuffixAIM IDLabel ID Label IDBar Code Data
00 - 20 Characters (ASCII)
Label ID Transmission:
Enable this option to
transmit the Label ID you
configure for the scanned
symbology.
AIM ID: This function is used to identify and display the
common label identifier for its symbology. When enabled,
this ID code will be transmitted before the scanned bar
code data.
OR...
Additional advanced editing is available. See the Advanced formatting
features in the Datalogic Aladdin configuration software, or contact
Technical Support (as described on
page 2 ) for more information.
Please Keep In Mind...
• Modifying a message string is not a mandatory requirement. Data edit-
ing is a sophisticated feature allowing
highly customizable output for
advanced users. Factory default settings for data editing is typically set
to NONE.
• A prefix or suffix may be applied only to a specified symbology (refer-
ence
1D Symbologies, starting on page 81 or 2D Symbologies, starting
on page 173
) or across all symbologies (set via the Global features in
this chapter).
• You can add any character from the
ASCII Chart (from 00-FF) on the
inside back cover of this
manual as a prefix, suffix or Label ID.
• Enter prefixes and suffixes in the order in which you want them to
appear on
the output.

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
