162 PowerScan™ PD9530/PBT9500/PM9500
Code 93 Set Length 2
This feature specifies one of the bar code lengths for Code 93 Length Con-
trol
. Length 2 is the maximum label length if in Variable Length Mode, or the
second fixed length if in
Fixed Length Mode. Length includes the bar code’s
check, data, and full-ASCII shift characte
rs.
The length does not include
start/stop characters. The length can be set from 1 to 50 characters. A set-
ting of 0 specifies to ignore this length (only one fixed length).
Table 21 provides examples for setting Length 2. See page 268 for detailed
instructions on setting this feature.

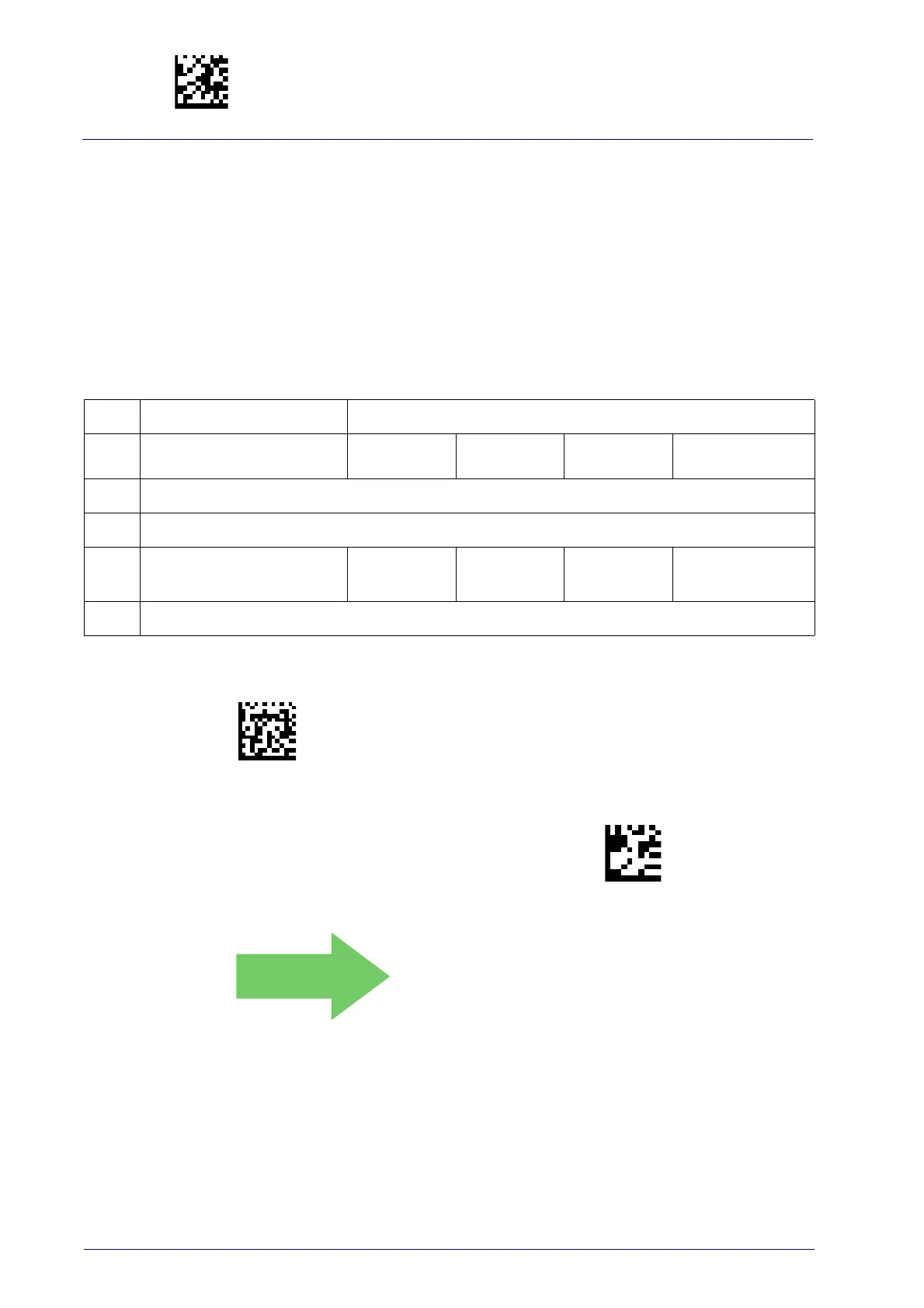

Table 21. CODE 93 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 93 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CC9L2
Select Code 93 Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
50 = Length 2 is 50 Characters

Datalogic PowerScan PM9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	-
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wireless range	150 m
Operating frequency	910 MHz
Standard interfaces	USB, RS-232, RS-485
Connectivity technology	Wireless
Certification	IEC 60825 Class 2 IEC 62471 Class 1 LED
Product color	Black, Yellow
LED indicators	Yes
Protection features	Shock resistant
International Protection (IP) code	IP65
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Battery life	10 h
Charging time	4 h
Input voltage	12 V
Battery capacity	2150 mAh
Power consumption	150 mA
Power source type	Battery
Cables included	No

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
