ASDA-M Chapter 6 Control Mode of Operation
Revision December, 2014 6-25
The setting range of internal parameters is between -60000 and 60000. Setting
value = setting range x unit (0.1r/min).
For example: P1-09 = +30000, setting value = +30000 x 0.1r/min = +3000r/min
The speed command not only can be issued in speed mode (S or Sz), but also in torque
mode (T or Tz) as the speed limit.
6.3.2 Control Structure of Speed Mode

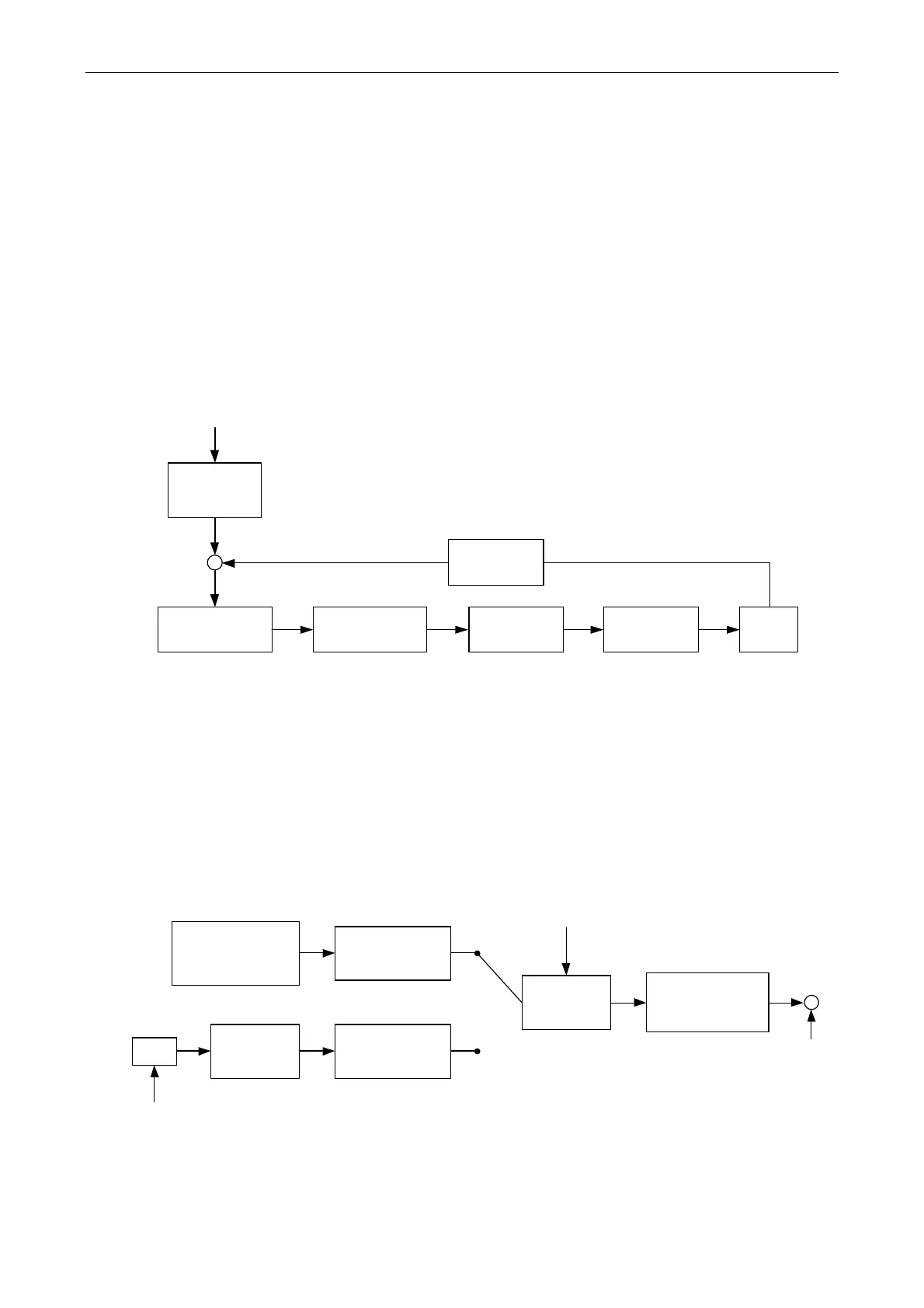

The basic control structure is shown as the following diagram:
Speed Command
Speed control
Speed
Command
Processing
Torque Limit
Resonance
Suppression
Speed
Estimator
Motor
Current
Loop
The speed command unit is to select speed command source according to Section 6.3.1,
including the scaling (P1-40) setting and S-curve setting. The speed control unit
manages the gain parameters of the servo drive and calculates the current command for
servo motor in time. The resonance suppression unit is to suppress the resonance of
mechanism. Detailed descriptions are shown as the following:
Here firstly introduces the function of speed command unit. Its structure is as the
following diagram.
Analog signal
Command
Selection
P1-01
Internal Parameter
P1-09
~P1-11
Proportion
Gain
P1-40
S-curve Filter
P1-36
Analog Command
Filter
P1-59
Low-pass Filter
P1-06
A/D
SPD0, SPD1 signal of CN1
The upper path is the command from register while the lower one is external analog
command. The command is selected according to the status of SPD0, SPD1 and
To Next Page
