Delta ASD-M-0721 Series User Manual

Chapter 8 Parameters ASDA-M
8-38 Revision December, 2014
P1-xx Basic Parameters

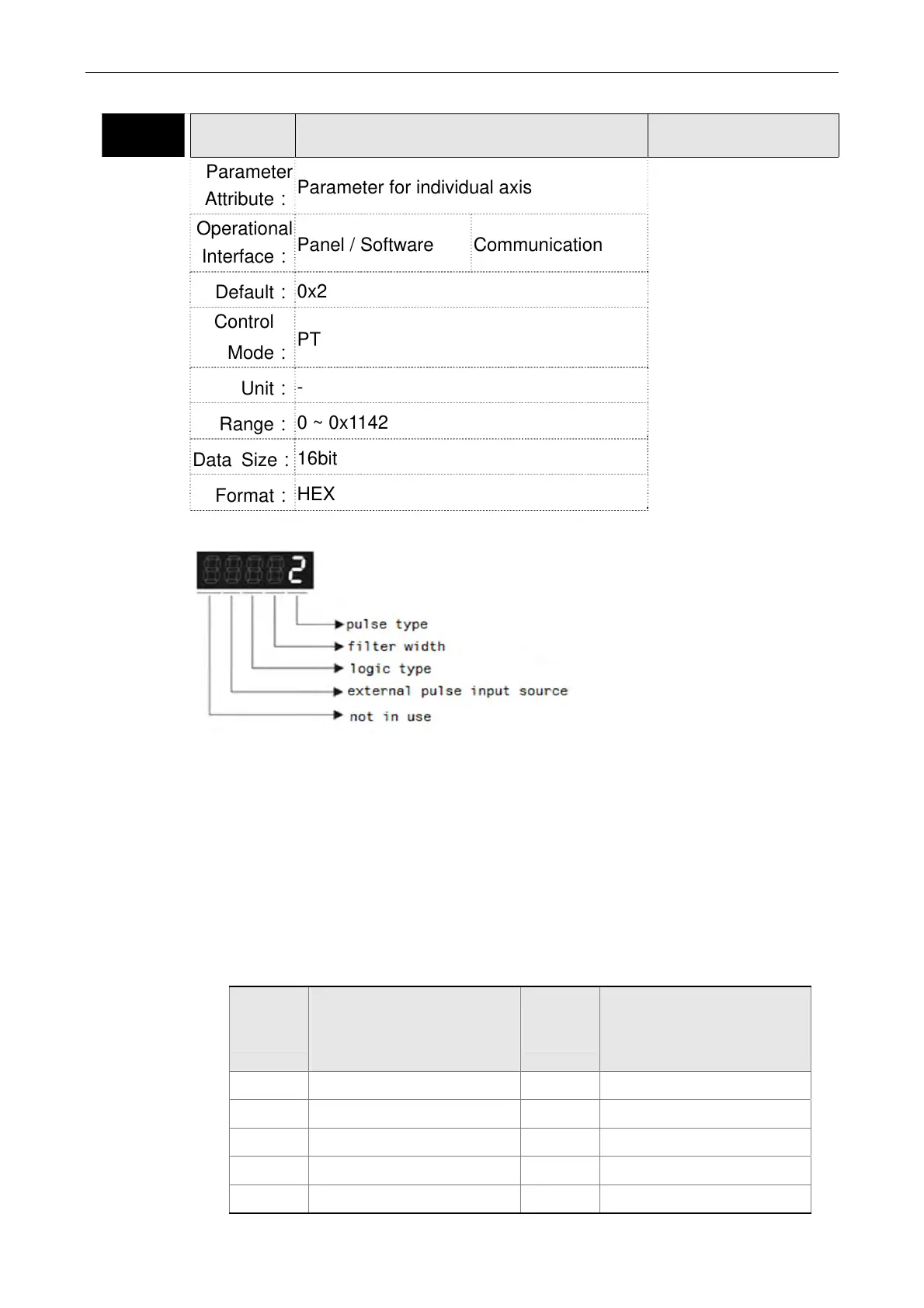

P1-00▲
PTT The Type of External Pulse Input
Address: 0100H
0101H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.2.1
Operational
Interface：
Panel / Software Communication
Default：
0x2
Control
Mode：
PT
Unit：
-
Range：
0 ~ 0x1142
Data Size：
16bit
Format：
HEX
Settings：
 Pulse Type
0: AB phase pulse (4x)
1: Clockwise (CW) and Counterclockwise (CCW) pulse
2: Pulse + symbol
Other setting: reserved
 Filter Width
If the received frequency is much higher than the setting, it will be
regarded as the noise and filtered out.
Setting
Value
Low-speed filter
frequency
(Min. pulse width* note1 )
Setting
Value
High-speed filter
frequency
(Min. pulse width* note1 )
0
0.83Mpps (600ns)
0 3.33Mpps (150ns)
1
208Kpps (2.4us)
1 0.83Mpps (600ns)
2
104Kpps (4.8us)
2 416Kpps (1.2us)
3
52Kpps (9.6us)
3 208Kpps (2.4us)
4
No filter function
4 No filter function
