Revision December, 2014 3-1
Chapter 3 Wiring
This chapter details the wiring method of servo drive, the definition of each signal and
standard wiring diagram.
3.1 Connection between Peripheral Devices and Main Power
Circuit

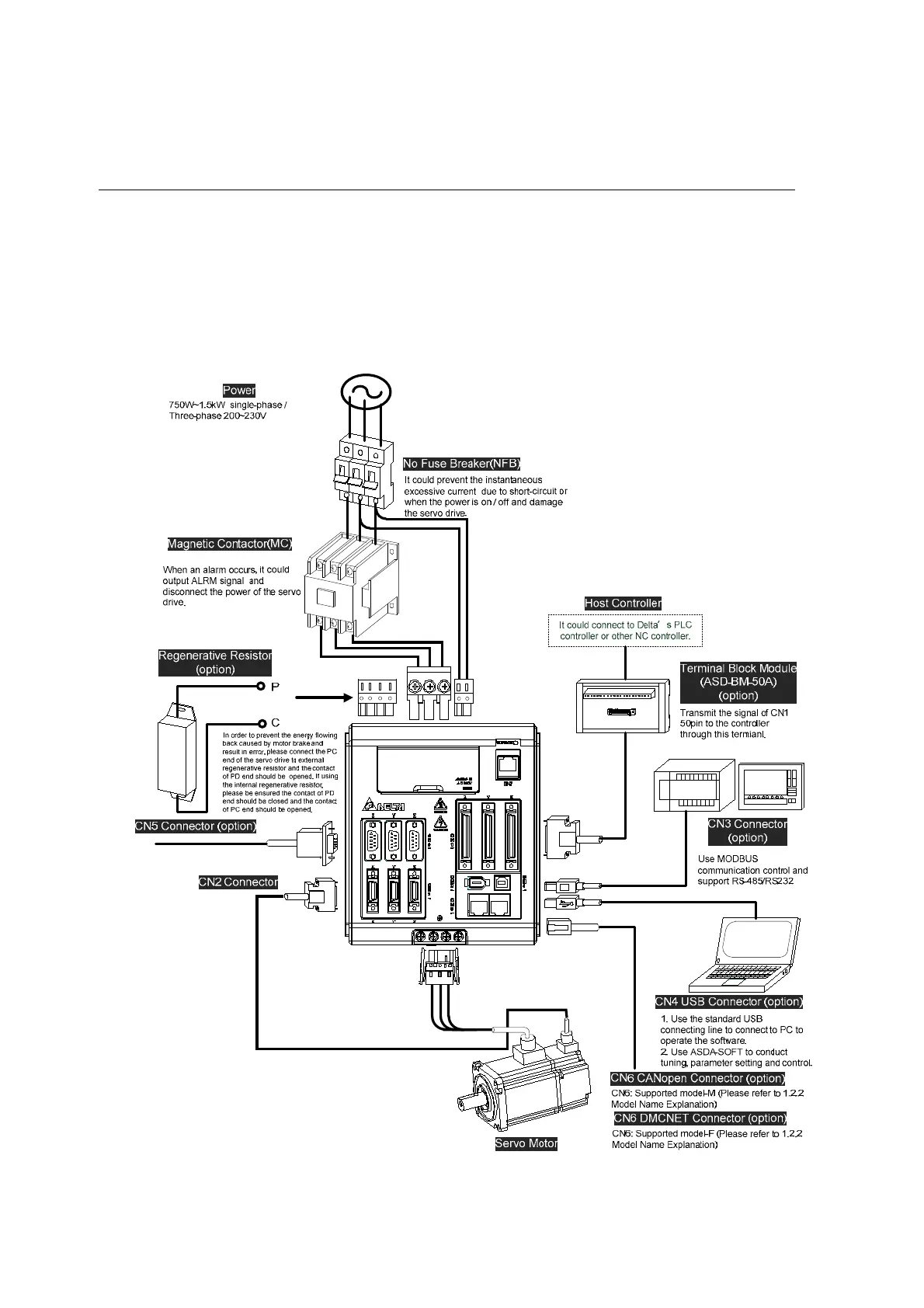

3.1.1 Wiring Diagram of Peripheral Devices
