Delta ASD-M-0721 Series User Manual

Revision December, 2014 4-1
Chapter 4 Panel Display and
Operation
This chapter details the panel status and operation of ADSA-M series servo drive.

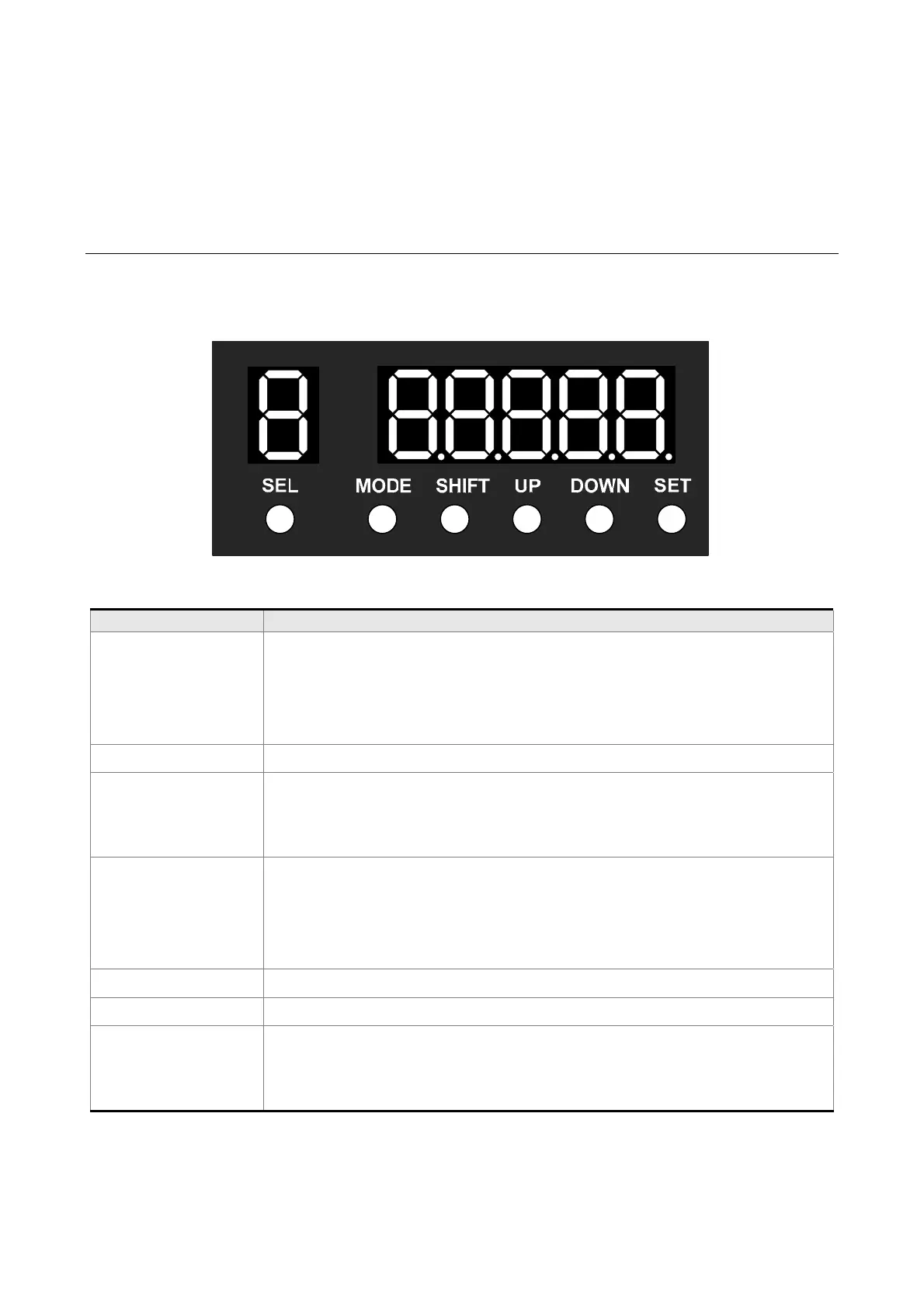

4.1 Panel Description
Name Function
Display
The single-group of seven-segment display is for displaying the
selected axis.
The five-group of seven-segment display is for displaying the
monitoring values, parameter values and setting values.
SEL Key Axis selection
MODE Key
Switch to Monitor Mode / Parameter Mode / Alarm Display.
When in Editing Mode, press the MODE Key can switch to the
Parameter Mode.
SHIFT Key
The group code can be changed in Parameter Mode. When in
Editing Mode, moving the blinking bit to the left can adjust the higher
setting bit. The display of high/low digit can be switched in Monitor
Mode.
UP Key Change monitoring codes, parameter codes or setting values
DOWN Key Change monitoring codes, parameter codes or setting values
SET Key
Display and save the setting value. It can switch the decimal or
hexadecimal format display in Monitor Mode.
In Parameter Mode, press the SET Key can enter Editing Mode.
