Delta ASD-M-0721 Series User Manual

ASDA-M Chapter 3 Wiring
Revision December, 2014 3-31

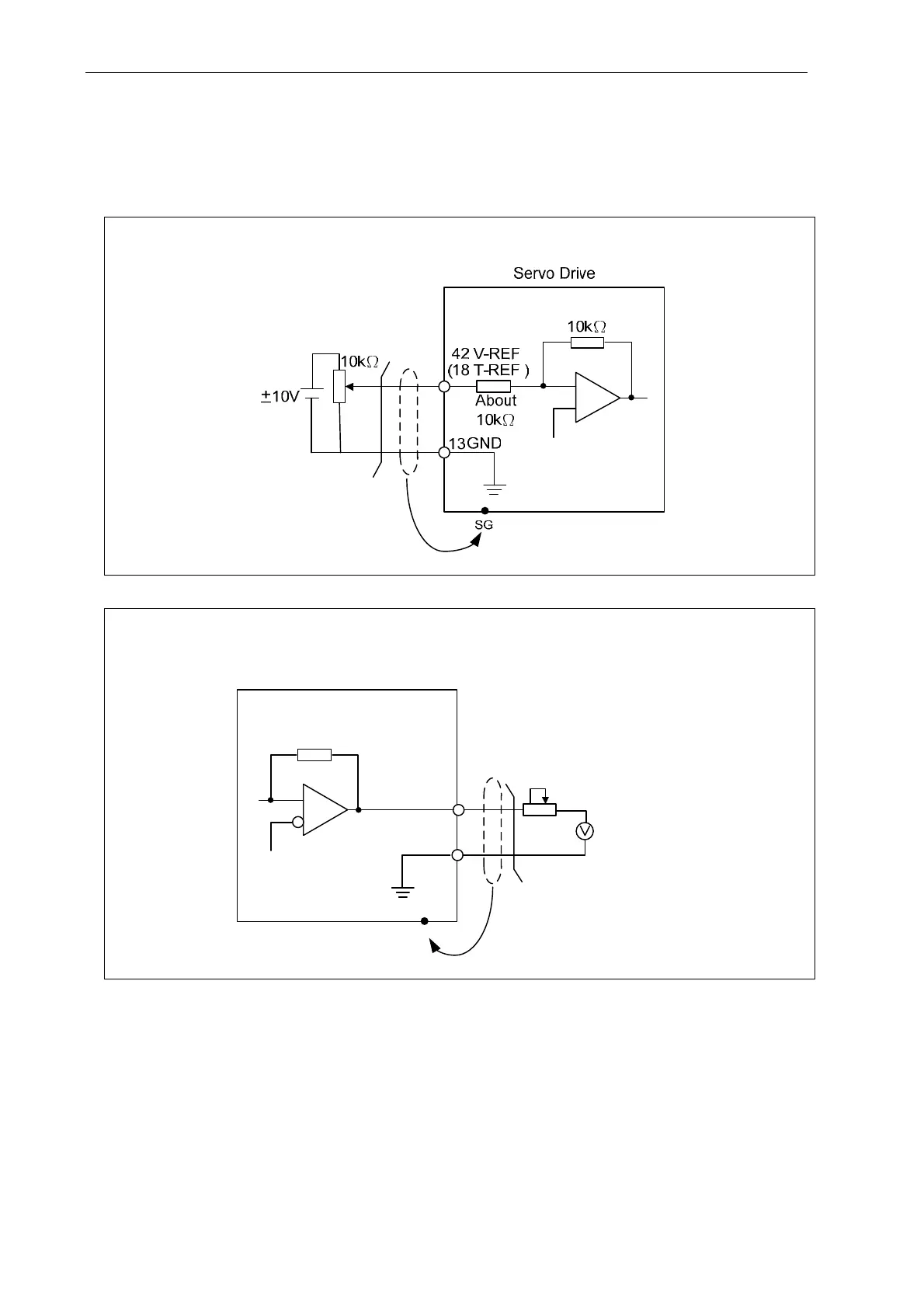

3.3.3 Wiring Diagram (CN1)
The valid voltage of speed analog command and torque analog command is between
-10V and +10V. The command value can be set via relevant parameters. The input
impedance is 10K.
C1: speed, Input of Torque Analog Command
C2：Analog Monitor Output MON1 ,MON2
8V full scale
SG
Servo Drive
24kΩ
GND
8kΩ
MON1 16
(MON2 15)
13
output 1mA
Max. 8V
_+
