DVP-ES3 Series Operation Manual

4-40

*4. Connect FE of the shielded cable to ground when the noise it too loud.

*5. Connect the terminal to ground.

*6. CHX: Every channel can work with the input wiring shown above.

Note 1: use cables with the same length (less than 200 m) and use terminal resistors of less than 200 ohm.

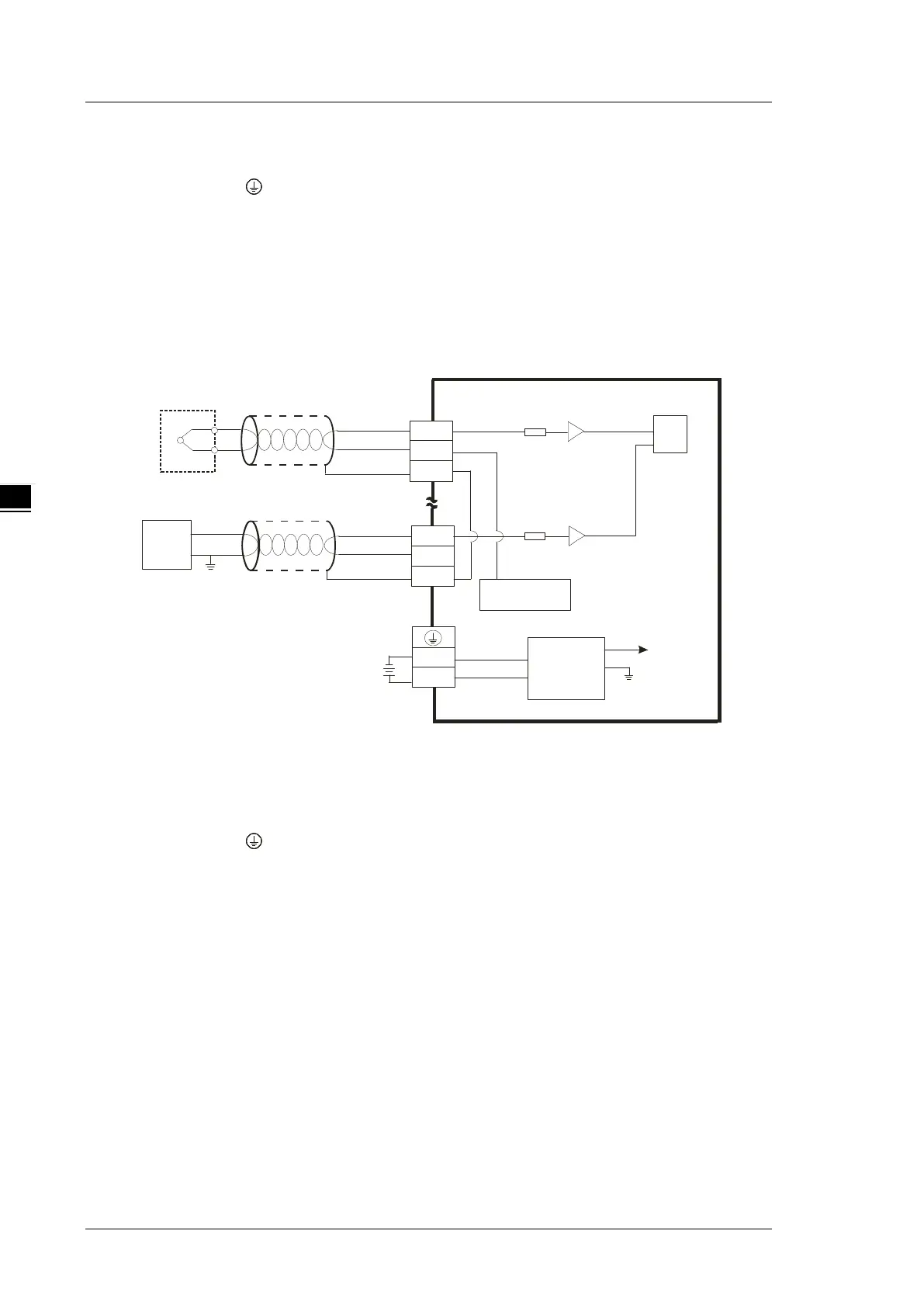

4.9.2 Wiring DVP04TC-E2

I4+

I4-

Cold conjunction

compensation

MUX

J,K,R,S,T,E,N

-80mV~80mV

I1+

I1-

Shielded cable*1

24VDC

DC/DC

Converter

24V

CHX

Shielded cable*1

*1. The cable connected to the input terminal should be the cable or the shielded twisted pair cable connected

to a type J, K, R, S, T, E, N thermocouple. It should be kept separate from other power cables and cables

that generate noise.

*2. Connect the terminal to ground.

*3. CHX: Every channel can work with the input wiring shown above.

Note 1: only use copper conducting wires with a temperature rating of 60/75°C and the length must be less

than 50 m.

Note2: TC modules must run for 30 minutes before they start to take any temperature measurement.
