DVP-ES3 Series Operation Manual
4-22
_4

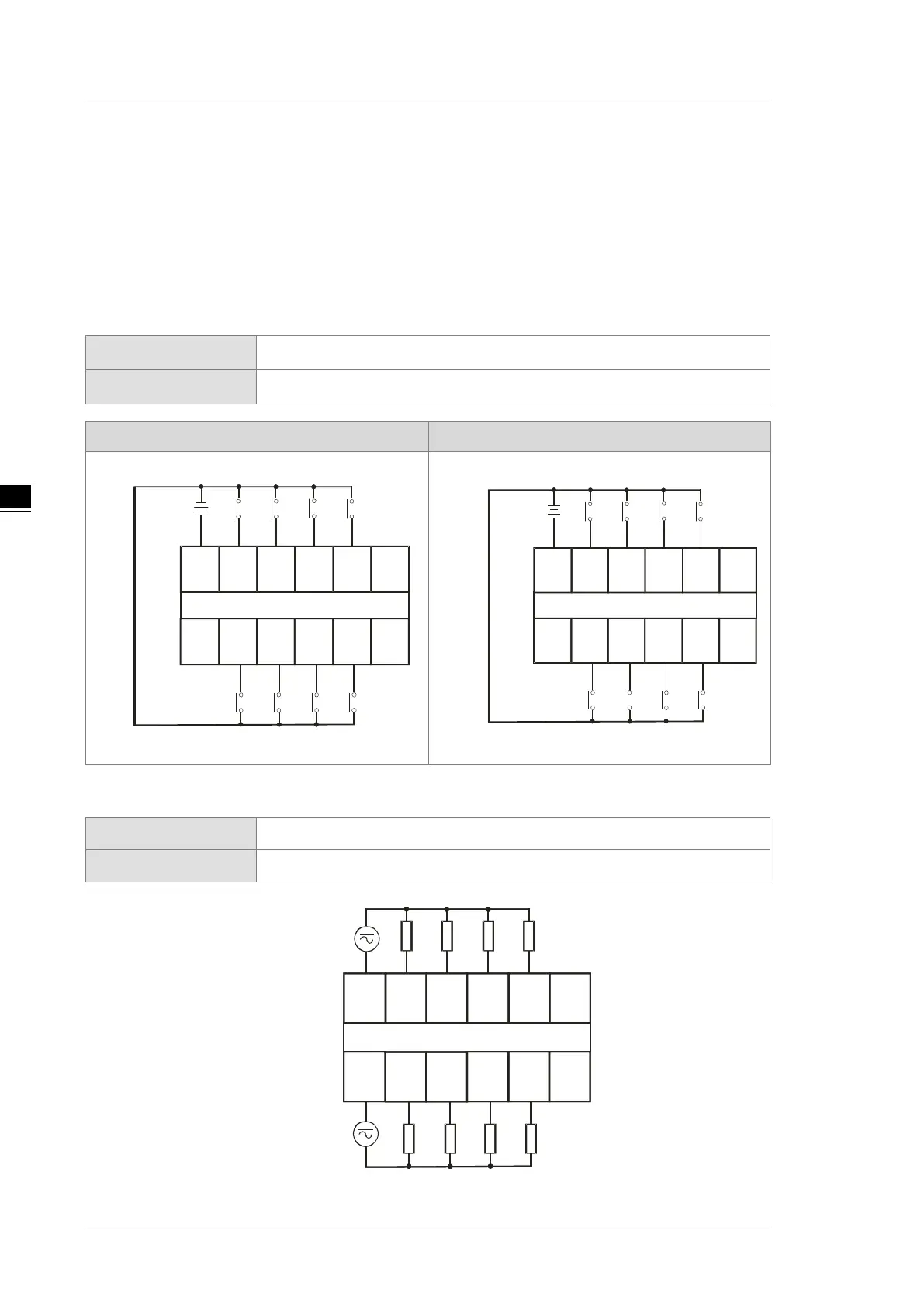

4.7 Wiring Digital Input / Output Modules
This section illustrates how to wire digital input/output modules. The wiring diagrams below also illustrate how
the power supplies are connected to S/S, and COM. If you need more information about wiring of digital
input/output terminals, refer to Section 4.6.1 and 4.6.2 in this manual.
4.7.1 Wiring DVP08XM211N
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Sinking Sourcing
IN
S/S X0 X1 X2 X3 NC
NC NCX4 X5 X6 X7
DVP08XM211N ( 8 DI)
IN
S/S
X0 X1 X2 X3 NC
NC NCX4 X5 X6 X7
DVP08XM211N ( 8 DI)
4.7.2 Wiring DVP08XN211R
Output form
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
OUT
C0 Y0 Y1 Y2 Y3 NC
C1 NCY4 Y5 Y6 Y7
DVP08XN211R ( 8 DO)
OUT
C0 Y0 Y1 Y2 Y3 NC
C1 NCY4 Y5 Y6 Y7
DVP08XN211R ( 8 DO)
