DVP-ES3 Series Operation Manual
7.6 Backing Up a Project
If the backup source or backup destination is a DVP-ES3 Series CPU module or memory card, make sure that
ISPSoft is connected to the DVP-ES3 Series CPU module. During backup, the CPU LED and Error LED blinks
alternatively and SM452 flag is ON. After the backup is done, the CPU LED and Error LED stops blinking and
SM452 flag is OFF. Refer to Section 2.4 in the ISPSoft User Manual for more information.

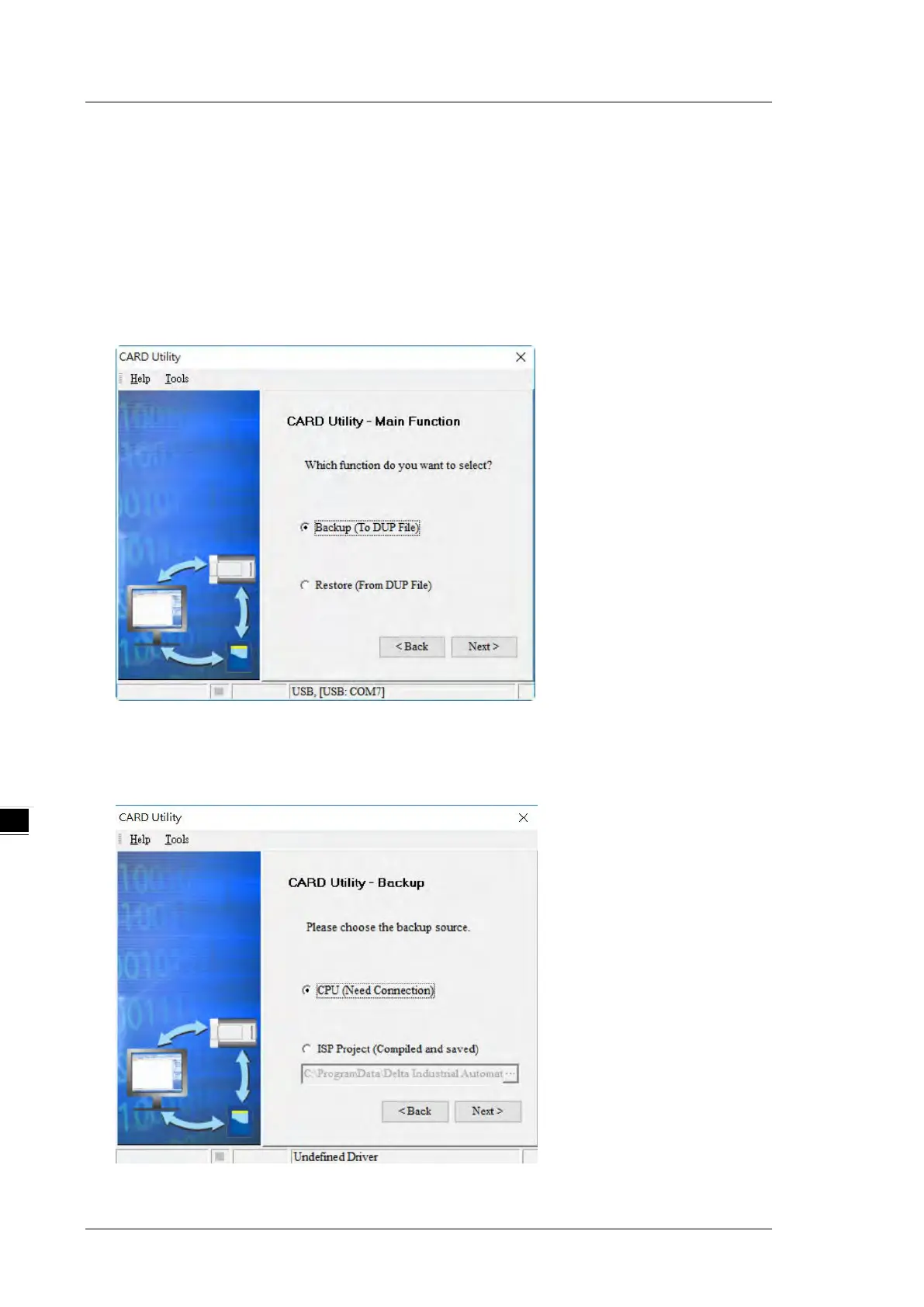

(1)
Select the Backup (To DUP File) option button in the CARD Utility wizard and then click Next.
(2)
Select a backup source, and then click Next.
a. If you select the CPU (Need Connection), the backup file is stored in the memory card.
