Delta DVP32ES300T User Manual

Chapter 4 Installing Hardware
4-29
4_

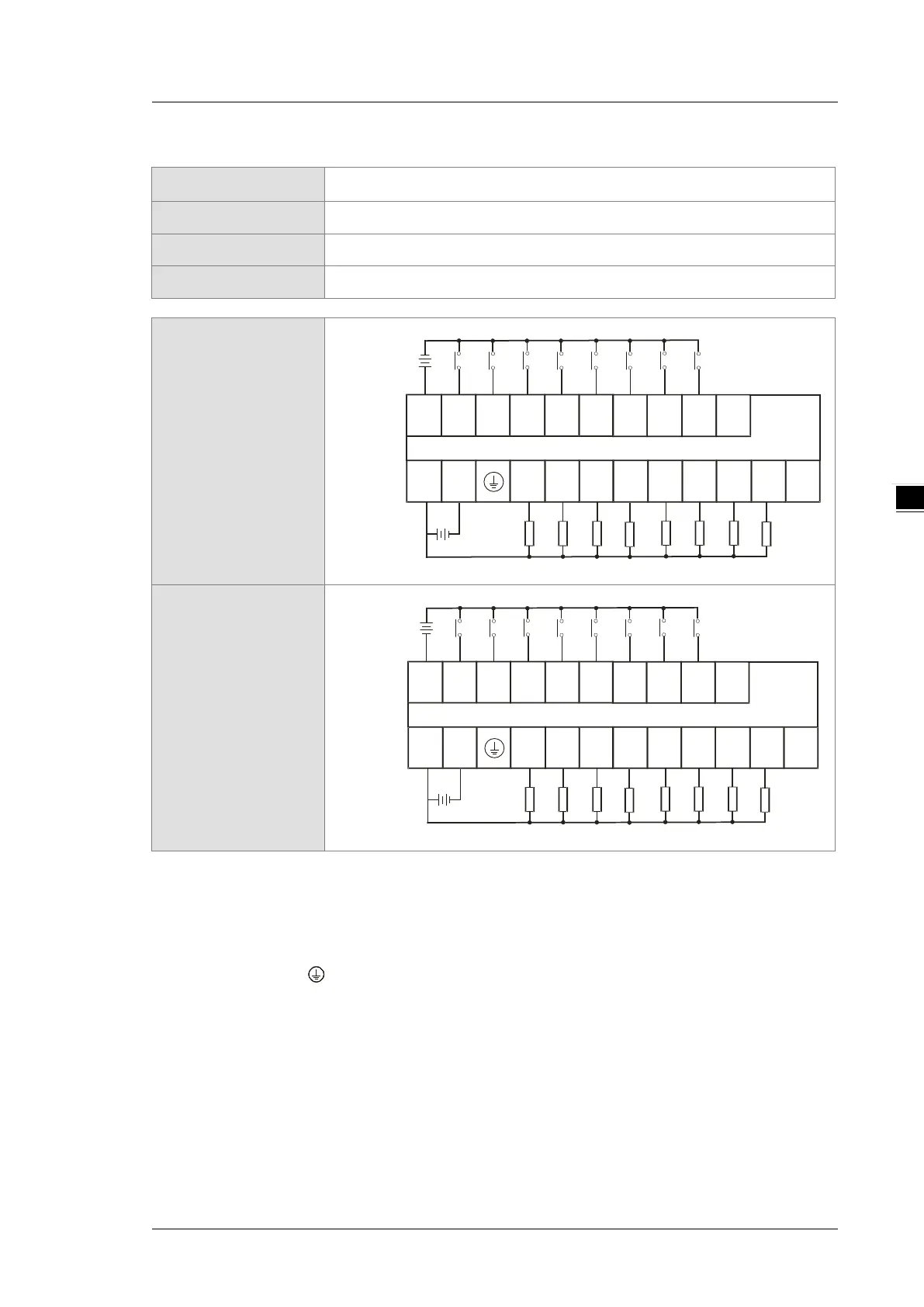

4.7.10 Wiring DVP16XP211T
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
Sinking input and output
OUT
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP16XP211T ( 8DI/8DO)
UP ZP
S/S
X0 X1 X2 X3 X4
NCX5 X6 X7
IN
NC
Sourcing input and
sinking output
OUT
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP16XP211T ( 8DI/8DO)
UP ZP
S/S X0 X1 X2 X3 X4 NCX5 X6 X7
IN
NC
Note:
1. You need to add external power supply 24 VDC (-15% ~ +20%) for UP and ZP; power consumption is up to
15 mA.
2. Connect the terminal to ground.
