DVP-ES3 Series Operation Manual
4-32

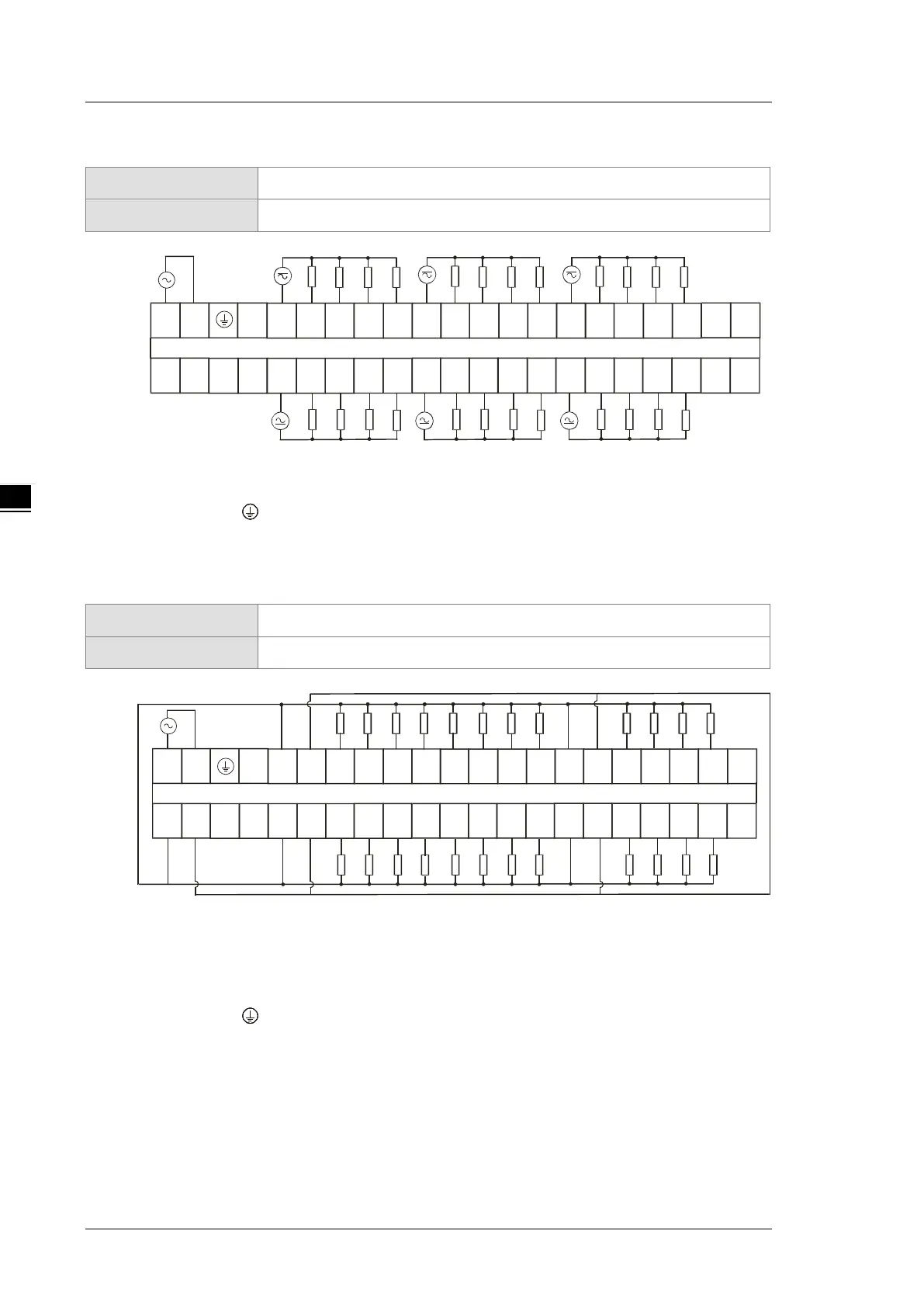

4.7.13 Wiring DVP24XN200R
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
C0 Y0 Y1 Y2 Y3 Y4
Y5 Y6 Y7
C2 Y10 Y11 Y12 Y13
DVP24XN200R ( 24DO)
C1
Y20 Y21 Y22 Y23
C4
NC
L N
+24V 24G NC
C3 Y14 Y15 Y16 Y17
C5 Y24 Y25 Y26 Y27
NC NC
NC
NC
NC
OUT
Note:
1. The module is built-in with a +24 V power supply for I/Os to use.
2. Connect the terminal to ground.
4.7.14 Wiring DVP24XN200T
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
Y10 Y11 Y12 Y13
DVP24XN200T ( 24DO)
Y20 Y21 Y22 Y23NCL N
+24V 24G NC Y14 Y15 Y16 Y17 Y24 Y25 Y26 Y27NC NC
NC
OUT
UP0 ZP0 UP2 ZP2
UP1 ZP1 UP3 ZP3
Note:
1. You need to add external power supply 24 VDC (-15% ~ +20%) for UP0, UP1, UP2, UP3 and ZP0, ZP1, ZP2,
ZP3; power consumption is up to 30 mA.
2. Connect the terminal to ground.
