8.3 Data Exchange
8.3.1 Device Settings Dialog Box Descriptions

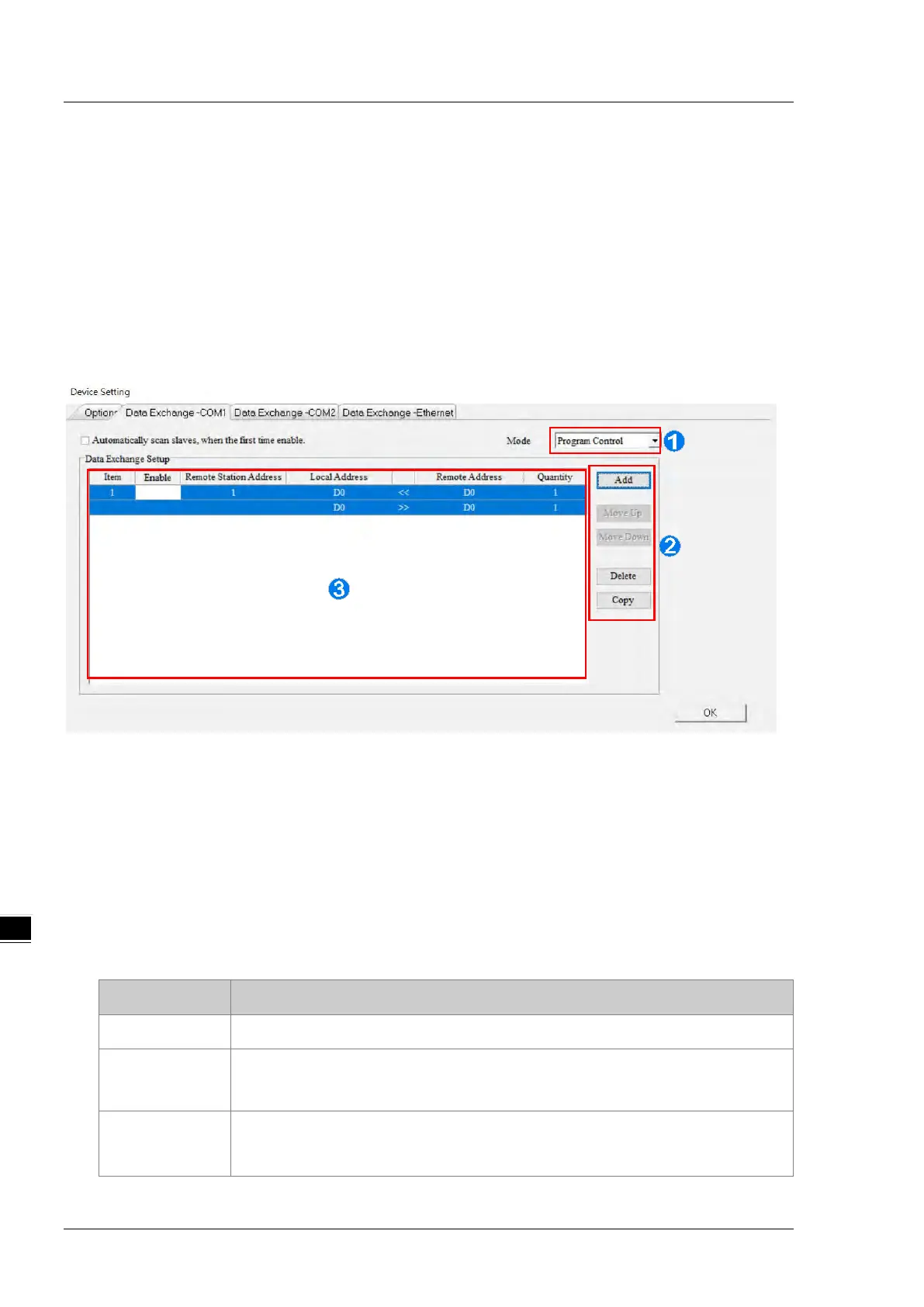

In the Device Settings dialog box, after you click the Data Exchange-COM1, Data Exchange-COM2 or Data
Exchange-Ethernet tab, you can set the parameters for the data exchange table for the communication port built into
the DVP-ES3 Series module.
The DVP-ES3 Series module can be a master and exchange data with remote slave devices through COM1 and
COM2 using the Modbus protocol, or through an Ethernet port using the Modbus TCP protocol.
 When you set the start Mode to Program Control, the program in the PLC determines whether to perform the set
data exchange. PLC Run means that the set data exchange is performed automatically when PLC is in the RUN
state. Always Enable means that the data exchange is performed constantly when the PLC is powered on.
 Add a new row in the data exchange table in area  by clicking Add. Move the selected data exchange row up or
down by clicking Move Up and Move Down. Delete the selected data exchange row by clicking Delete. Copy the
selected data exchange row by clicking Copy. You can then paste it back into the table as the last row.
 The following table explains the columns in the data exchange table.
Name Description
Item The number of the block for data exchange
Enable
Selects whether to enable the data exchange table when the data exchange is
performed.
Station Address/
IP Address
The slave station address for the data exchange table. You can set one address for
multiple data exchange tables. It is a station address under the COM1 and COM2 tabs,
